WELL-ROAD

WR-CSD500

Advantages and Features

Advantages and features

The structural design allows for easy towing and transportation of equipment by small vehicles; the randomly configured continuously variable transmission drive system enables self-operation without the need for a towing vehicle.

The centrally heated material tank structure and heat transfer oil heating circulation system ensure that the sealant is heated evenly in the material tank, is not prone to aging, and has a better guarantee of melt quality;

It uses an imported BECKETT diesel burner for heating, which features excellent heating effect, fast heating speed, and fuel saving. The multi-layer insulation structure of the material hopper ensures less heat loss and higher heating efficiency.

The externally mounted feed pump, mechanical multi-directional mixing system, and externally mounted layered bearing structure ensure both material discharge and return, as well as good mixing performance, while also facilitating maintenance, repair, and replacement.

The electrically heated hose delivery system effectively ensures uniform and rapid heating of the sealant inside the hose, preventing aging and saving energy and time. Equipped with a safety operating lever and shoulder strap, it effectively reduces the labor intensity of crack sealing operations and improves the accuracy of crack sealing.

The chassis assembly is from an international brand. This chassis is designed to resemble a car chassis and is equipped with a safety chain and a heavy-duty top-hook. The equipment has a low center of gravity and a robust structure, ensuring high stability and safety even when towed by a car at high speeds.

Basic product parameters

Gain a comprehensive understanding of product information

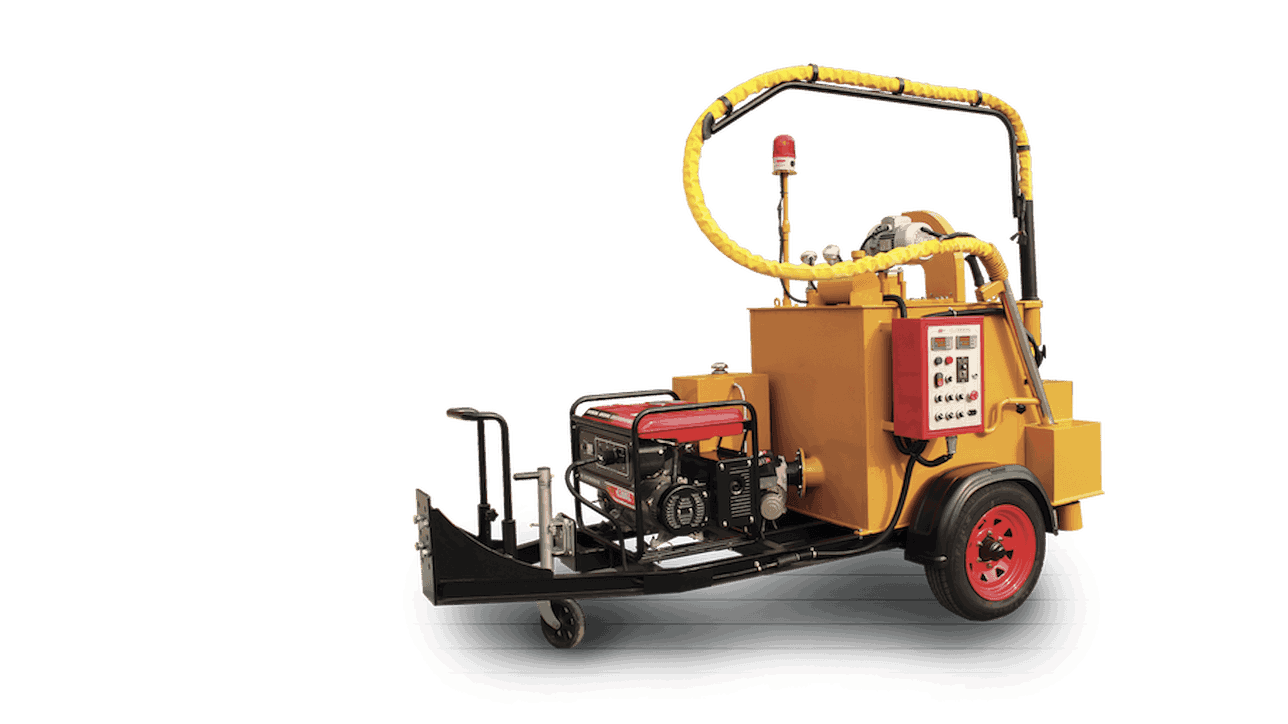

WR-CSD500 Self-propelled Crack Filler

The WR-CSD500 self-propelled crack sealing machine is a medium-to-heavy-duty road marking equipment that meets international industry standards.

engine

SUBARUEH6318HP gasoline engine

electric heating element

24V 6m 1kW

driving speed

5-8（Km/h）

Asphalt pump

Hydraulically driven, with a displacement of 23L/min

Bin capacity

500L

Gasoline tank capacity

21L

heat transfer oil

100L

net weight

2400Kg

dynamo

24V2Kw

chassis

German AL-KO chassis rubber torsion shaft

Stir

Hydraulically driven, with a speed adjustable between 8-20 r/min.

heater

Imported diesel burner BECKETT, 63,000 kcal/kg heat capacity

Diesel fuel tank capacity

21L

Hydraulic oil tank capacity

50L

External dimensions

4350*1950*2300mm

Permissible total weight

3500Kg

engine

SUBARUEH6318HP gasoline engine

dynamo

24V2Kw

electric heating element

24V 6m 1kW

chassis

German AL-KO chassis rubber torsion shaft

driving speed

5-8（Km/h）

Stir

Hydraulically driven, with a speed adjustable between 8-20 r/min.

Asphalt pump

Hydraulically driven, with a displacement of 23L/min

heater

Imported diesel burner BECKETT, 63,000 kcal/kg heat capacity

Bin capacity

500L

Diesel fuel tank capacity

21L

Gasoline tank capacity

21L

Hydraulic oil tank capacity

50L

heat transfer oil

100L

External dimensions

4350*1950*2300mm

net weight

2400Kg

Permissible total weight

3500Kg
