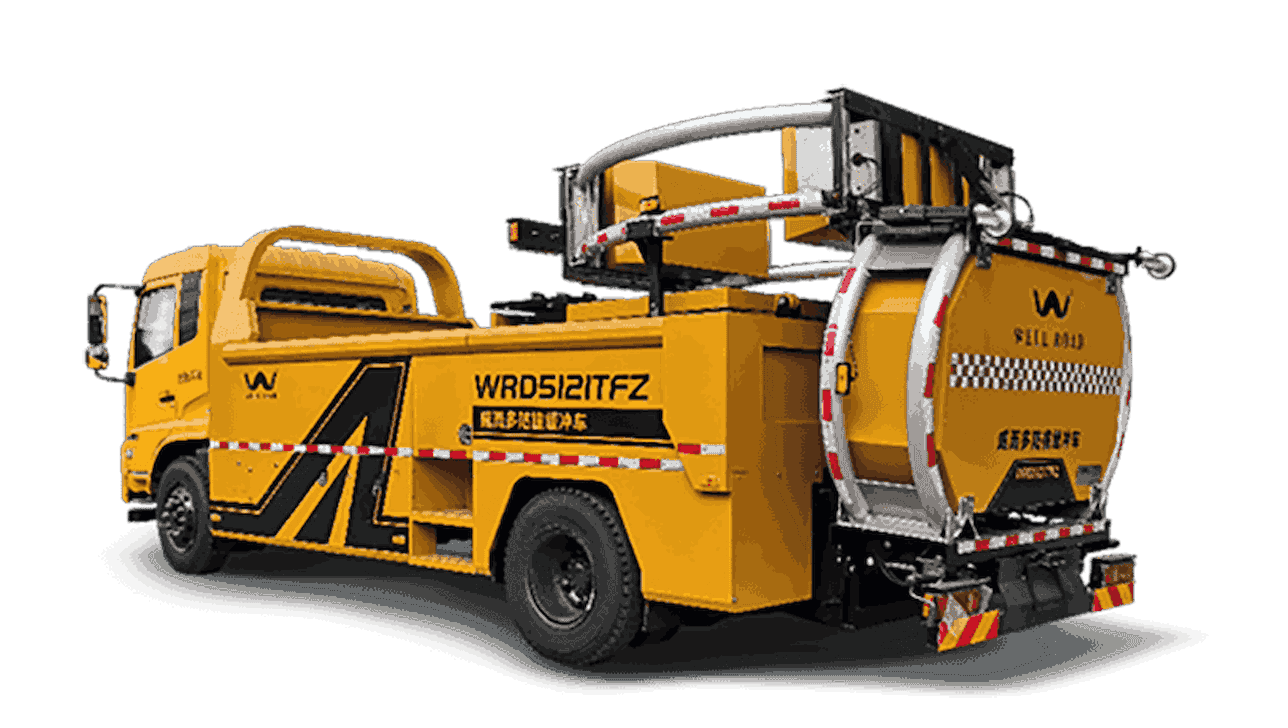

WRD5121TFZ Collision-avoidance Buffering Vehicle

WRD5121TFZ Anti-Collision Buffer Vehicle (Medium)

WRD5121TFZ

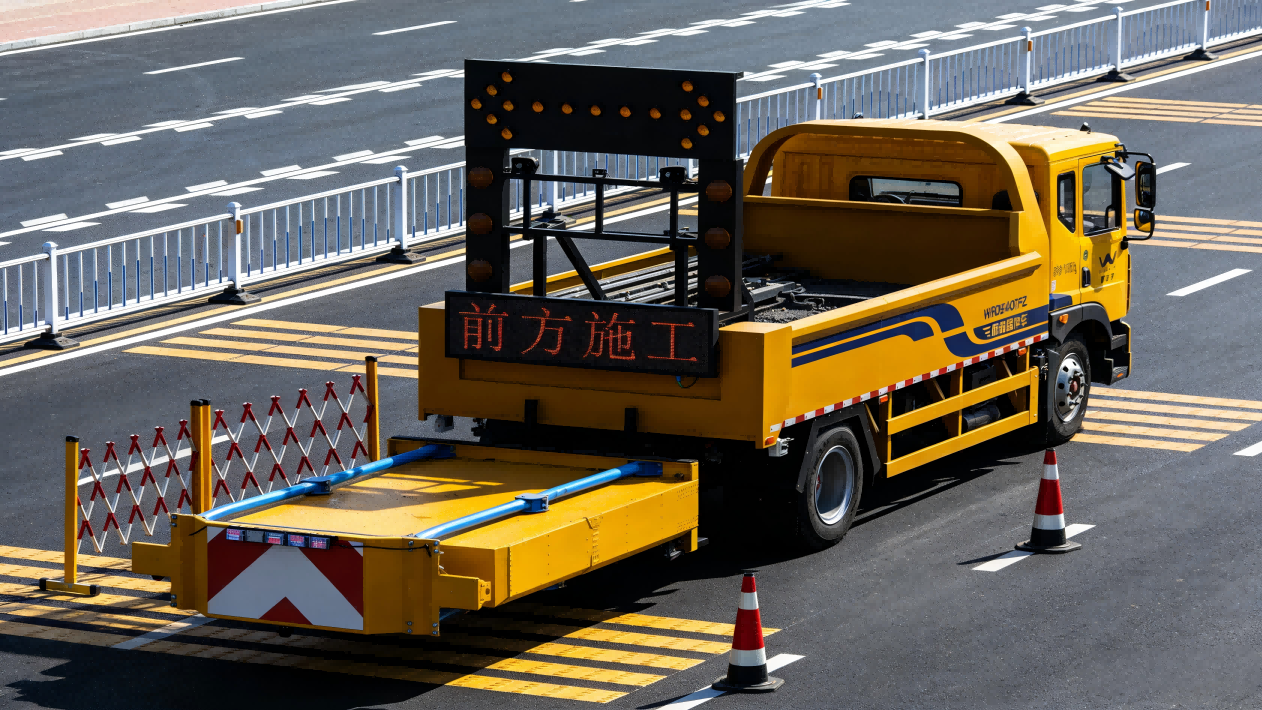

The WRD5121TFZ anti-collision buffer vehicle (medium-sized) is a road construction protection vehicle featuring a two-stage folding design, a split buffer structure, and outward-bent pipes. It can effectively reduce collision impact, simplify maintenance processes, and is suitable for various scenarios such as urban roads and highways. It has a 100K protection level and an efficient warning guidance system.

Advantages and Features

Advantages and features

Foldable storage, reduces wind resistance

Using a two-stage folding design, when fully folded, the wind-facing area is small, which helps reduce air resistance during driving and improve fuel efficiency.

Outward curved structure, comprehensive protection

The design of the outer-curved elbow of the buffer block effectively transfers side impacts to the main body of the buffer, enhancing side protection and improving safety in the construction area

Intercept buffer, protect the chassis

With a relatively long effective interception length (3400mm), it can significantly reduce the impact of colliding vehicles on the chassis, protecting the structural safety of construction vehicles

Gap design, safety redundancy

A reasonable gap is set between the buffer blocks to reserve sufficient space for the deformation of the elbow, ensuring that the collision energy is effectively absorbed and avoiding structural overload damage

Module maintenance, with controllable cost

Using a modular buffer block structure, after a minor collision, only the damaged module needs to be replaced, without the need for overall maintenance, greatly reducing maintenance costs and time.

High-strength chassis, stable load-bearing

Based on the Dongfeng DFH1120E1 chassis, equipped with a 154kW engine, with 8/10 8-leaf springs, a wheelbase of 4700mm, a curb weight of 12.2 tons, it has good load capacity and driving stability, suitable for various road conditions.

Basic product parameters

Comprehensive understanding of product information

WRD5121TFZ Anti-Collision Buffer Vehicle (Medium)

The WRD5121TFZ Crash-Absorbing Buffer Vehicle (Medium) is a road construction protection vehicle with a two-stage folding design, equipped with a split buffer structure and outward-bent pipes.

Product Model

WRD5121TFZ

curb weight

12200kg

Chassis Model

DFH112OE1

Engine Model

DDi47E210-60

Top speed

89Km/h

Tire Model

9.00 R20 16PR

wheelbase

4700mm

Buffer Level

100K

Buffer structure length

3930x2450x650mm (L×W×H)

Effective interception length

3400mm

Arrow guide light area size

2000X690mm (Width X Height)

External dimensions

8550x2550x3100mm (buffer block retracted)

Total mass

12395kg

Manufacturer

Dongfeng Commercial Vehicle Co., Ltd.

Engine power

154KW

Number of leaf springs

8/10+8 (before/after)

Number of tires

2 in front, 4 in back

Number of passengers allowed in the driver's cab

3 people

Buffer block weight

900Kg

Characteristics of buffer block structure

Split-type aluminum alloy buffer block housing, filled with honeycomb aluminum inside, double external curved tube frame

Effective protection area

1.84㎡

Arrow guide light rises

3800mm (from the ground)

Product Model

WRD5121TFZ

External dimensions

8550x2550x3100mm (buffer block retracted)

curb weight

12200kg

Total mass

12395kg

Chassis Model

DFH112OE1

Manufacturer

Dongfeng Commercial Vehicle Co., Ltd.

Engine Model

DDi47E210-60

Engine power

154KW

Top speed

89Km/h

Number of leaf springs

8/10+8 (before/after)

Tire Model

9.00 R20 16PR

Number of tires

2 in front, 4 in back

wheelbase

4700mm

Number of passengers allowed in the driver's cab

3 people

Buffer Level

100K

Buffer block weight

900Kg

Buffer structure length

3930x2450x650mm (L×W×H)

Characteristics of buffer block structure

Split-type aluminum alloy buffer block housing, filled with honeycomb aluminum inside, double external curved tube frame

Effective interception length

3400mm

Effective protection area

1.84㎡

Arrow guide light area size

2000X690mm (Width X Height)

Arrow guide light rises

3800mm (from the ground)
