WELL-ROAD

WR-TE700

Advantages and Features

Advantages and features

Extrusion construction, adjustable line width

The multi-functional hopper can mark various line patterns, is easy to maintain, has double-sided marking capabilities, and offers high marking efficiency.

Basic product parameters

Gain a comprehensive understanding of product information

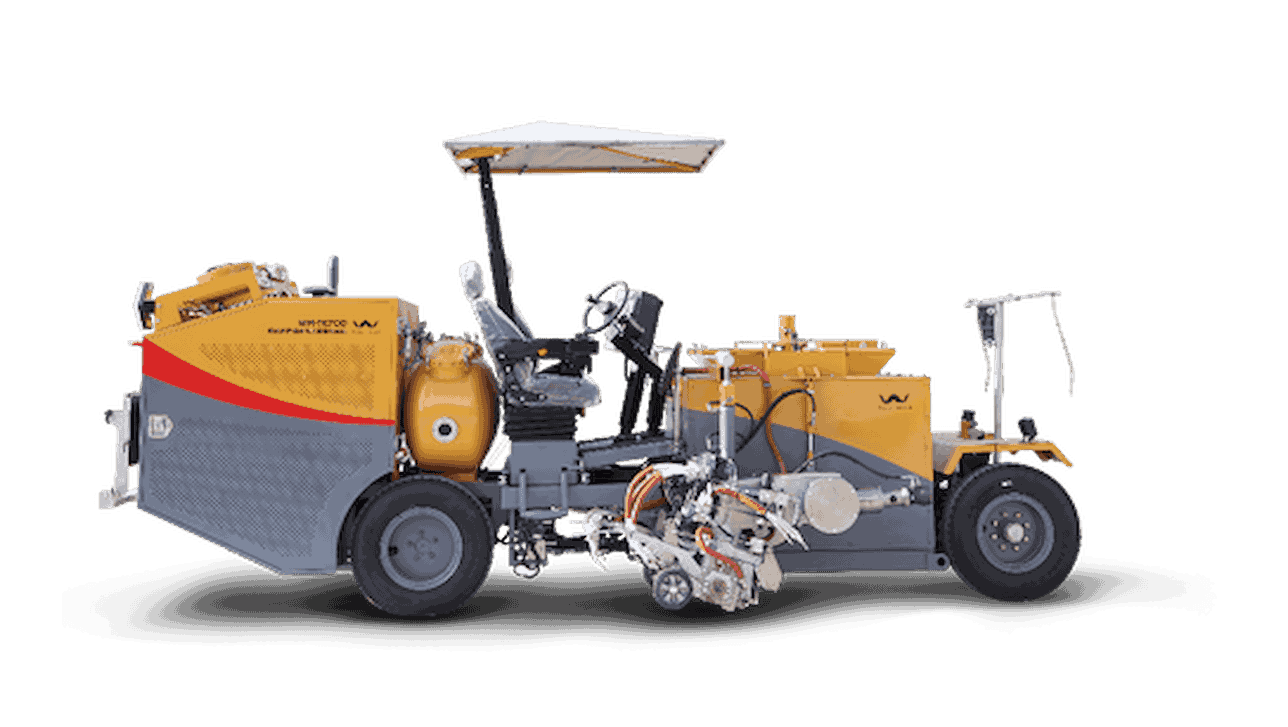

WR-TE700 Ride-on Hot Melt Road Marking Machine

model

WR-TE700

Power source

Hydraulic power, imported variable hydraulic pump

glass bead jar capacity

2 x 140L (two separate tanks)

Barrel capacity

600L

Transition speed

0~25KM/H

Strike type

Solid lines, dashed lines, horizontal lines, stair lines, rib lines, piano key lines, chess piece lines (marking hoppers can be installed on both sides of the vehicle body).

Total weight

4500KG

Engine power

72KW

Applicable coating types

Hot melt coating

Drawing speed

0~15KM/H

Strike width

50-500mm

Work pressure

5~16MPa

External dimensions

5800X2250X2920mm

model

WR-TE700

Engine power

72KW

Power source

Hydraulic power, imported variable hydraulic pump

Applicable coating types

Hot melt coating

glass bead jar capacity

2 x 140L (two separate tanks)

Drawing speed

0~15KM/H

Barrel capacity

600L

Strike width

50-500mm

Transition speed

0~25KM/H

Work pressure

5~16MPa

Strike type

Solid lines, dashed lines, horizontal lines, stair lines, rib lines, piano key lines, chess piece lines (marking hoppers can be installed on both sides of the vehicle body).

External dimensions

5800X2250X2920mm

Total weight

4500KG
