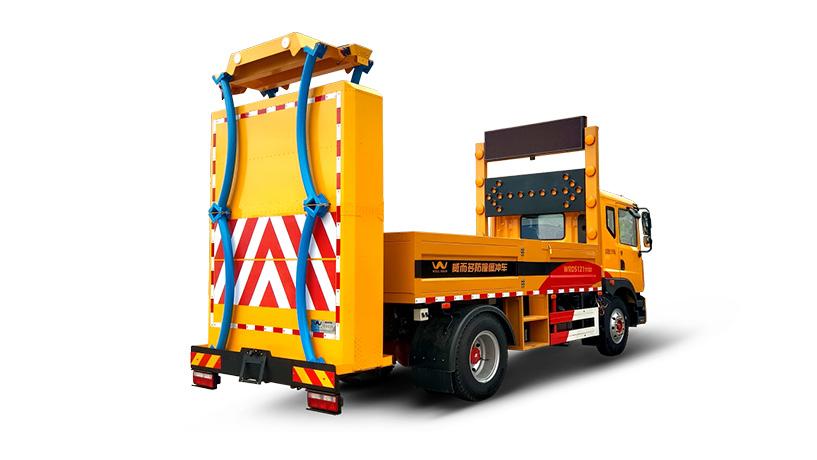

WRD5121TFZD Anti-Collision Buffer Vehicle (Inward Curved Type)

WRD5121TFZD Anti-Collision Buffer Vehicle (Medium)

WRD5121TFZD

The WRD5121TFZD impact buffer vehicle is a medium-sized protective device suitable for road operations in multiple scenarios. It adopts an inward-bending collision buffer design and features reliable structure, easy replacement, and effective protection.

Advantages and Features

Advantages and features

Applicable to multiple scenarios

Suitable for urban roads, suburban roads, highways, airport bridges, and other occasions, with a wide range of applications, capable of meeting the safety protection needs of different types of road construction.

High-security collision protection design

Equipped with an inward-bending pipe structure, it can prevent impact on side vehicles during collision extrusion, and a replaceable crash beam is set, with a cushioning level of 100K and an effective protective area of 1.6㎡, which can significantly reduce the damage from collision accidents.

Structural Reliability and Technology Maturity

The buffer block adopts an integrated modular design, with inward-bent aluminum pipes filled with aerospace-grade honeycomb aluminum, featuring lightweight characteristics. Its technology has been tested and verified by similar products in the United States and Europe, operating stably and reliably.

Convenient maintainability and replaceability

The buffer block has a simple structure and weighs only 320 kg. It can be quickly replaced when damaged, reducing maintenance costs and downtime, and improving the equipment's continuous operation capability.

A comprehensive warning and guidance system

Equipped with arrow guide lights, an LED guide screen (size 2000×530mm), and 8 yellow flashing lights to enhance the visual warning effect in the construction area, effectively guide vehicles approaching from behind, and improve the safety of the work site.

Good mobility and chassis compatibility

Based on the Dongfeng EQ1165LJ9CDE chassis, the engine power is 121kW, the maximum speed is 105km/h, and the wheelbase is 3950mm, which has good road passability and driving stability to meet the needs of flexible transitions under various working conditions

Basic product parameters

Gain a comprehensive understanding of product information

WRD5121TFZD Collision Avoidance Buffer Vehicle(Inward Curve Type)

The WRD5121TFZD crash buffer vehicle (inward curve type) is a medium-to-heavy-duty road marking equipment that meets international industry standards.

Product Model

WRD5121TFZD

Total mass

12195kg

Engine model

Yuchai

Engine power

121KW

Number of leaf springs

8/10 7 (front/rear)

Number of tires

Front 2 Back 4

Number of passengers allowed in the cab

3 people

Number of axles

Buffer structure length, width, and height

3150x2300x700mm

Buffer block weight

320Kg

Effective interception length

2700mm

LED guide screen size

2000X530 (Width X Height mm)

Strobe light color and quantity

Yellow, a total of 8 on both sides

External dimensions

7350X2420X3950mm (buffer block retracted)

Chassis Model

EQ1165LJ9CDE

Manufacturer

Dongfeng Motor Corporation

Maximum speed

105Km/h

Front track

1862 mm

Wheelbase

3950mm

Rear track

1806mm

Buffer Level

100K

Effective protection area

1.6㎡

Characteristics of buffer block structure

Integrated modular design, inward-bent aluminum tube, internally filled with aerospace-grade honeycomb aluminum

Arrow guide light

2000X690 (Width X Height mm)

LED guide screen height from the ground

3950mm

Product Model

WRD5121TFZD

External dimensions

7350X2420X3950mm (buffer block retracted)

Total mass

12195kg

Chassis Model

EQ1165LJ9CDE

Engine model

Yuchai

Manufacturer

Dongfeng Motor Corporation

Engine power

121KW

Maximum speed

105Km/h

Number of leaf springs

8/10 7 (front/rear)

Front track

1862 mm

Number of tires

Front 2 Back 4

Wheelbase

3950mm

Number of passengers allowed in the cab

3 people

Rear track

1806mm

Number of axles

Buffer Level

100K

Buffer structure length, width, and height

3150x2300x700mm

Effective protection area

1.6㎡

Buffer block weight

320Kg

Characteristics of buffer block structure

Integrated modular design, inward-bent aluminum tube, internally filled with aerospace-grade honeycomb aluminum

Effective interception length

2700mm

Arrow guide light

2000X690 (Width X Height mm)

LED guide screen size

2000X530 (Width X Height mm)

LED guide screen height from the ground

3950mm

Strobe light color and quantity

Yellow, a total of 8 on both sides

Application scenarios
