Hot melt marking machine

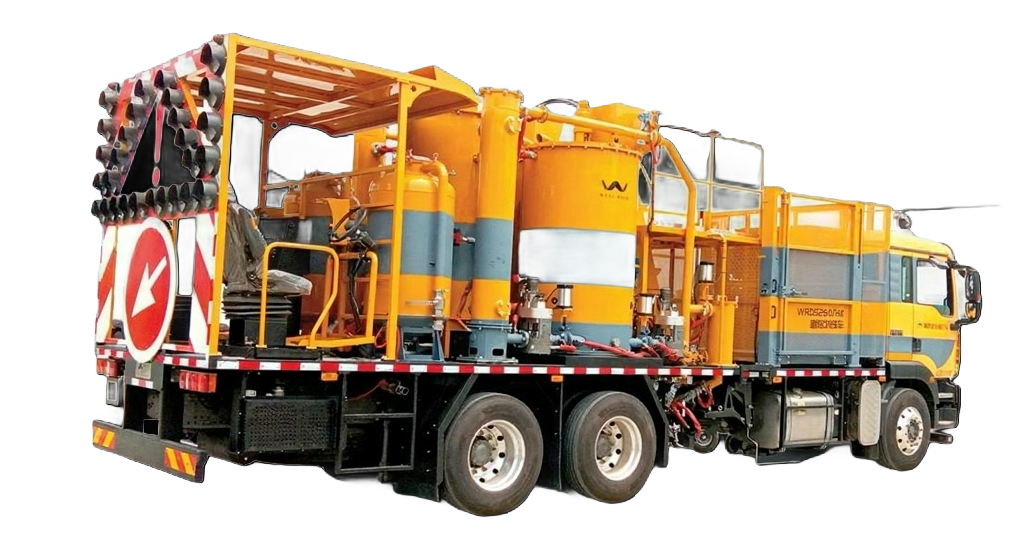

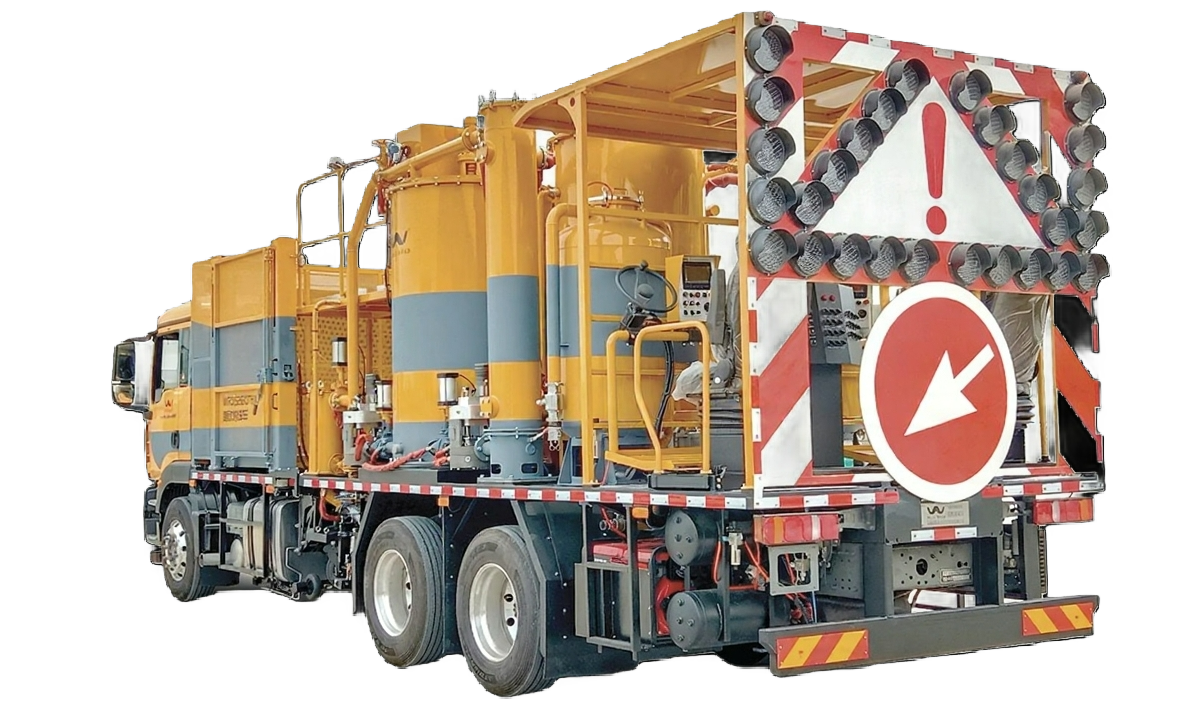

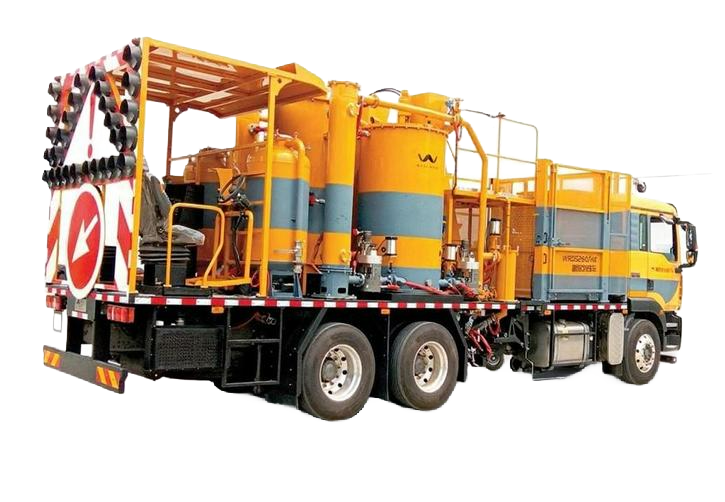

WRD5260THX road marking vehicle

WRD5260THX

The WRD5260THX road marking vehicle is a large-scale professional equipment that integrates efficient melting materials, intelligent control, and multifunctional construction, specifically designed for efficient and high-quality road marking operations.

Advantages and Features

Advantages and features

One machine, multiple functions

Can be flexibly configured and integrated with hot melt spray, hot melt trowel, and hot melt extrusion construction systems in one, meeting various marking needs such as straight lines, oscillating lines, and dot patterns, achieving multi-functionality with one machine and strong adaptability

Imported hydraulic constant speed system

Equipped with a fully imported hydraulic transfer system, supporting free switching between high and low construction speeds and precise constant control, ensuring uniform and consistent marking quality, and enabling separate control of vehicle driving and marking operations, improving construction safety, smoothness, and marking accuracy.

Intelligent Data and Quality Control System

Equipped with an intelligent line-marking control system, it can not only meet the precise control of conventional markings, but also optionally include a construction data automatic collection and analysis module, enabling automatic recording, evaluation, printing, and quality warnings of key parameters such as paint usage, construction length, area, thickness, and real-time positioning, thereby enhancing the digital and refined level of construction management.

Efficient Heating and Material Conveying System

Using an integrated diesel-heated thermal oil furnace and imported 'top-in, bottom-out, residue recycling, continuous feeding' melting device ensures that the coating is heated evenly, melts quickly, maintains a constant temperature, and does not char. Paired with high-flow, high-stability imported coating pumps and hydraulic proportional valves, it provides a stable and controllable coating supply for high-speed continuous construction (speeds can reach over 10 km/h), ensuring consistent marking quality at different speeds.

Humanized and Automated Design

Equipped with a tray lifting system, it can automatically lift materials to the most labor-saving height, allowing one person to easily perform continuous heating operations, significantly reducing labor input and work intensity, and lowering overall costs.

High-efficiency intelligent glass bead system

Equipped with a pressure-type double glass bead tank and an automatic control continuous feeding system, combined with a pneumatic proportional distribution device, it can accurately control the amount and pressure of glass beads required for different markings. The air drying system inside the tank can effectively prevent the glass beads from getting damp and clogging the gun, ensuring uniform and uninterrupted spreading in various construction environments.

Basic product parameters

Comprehensive understanding of product information

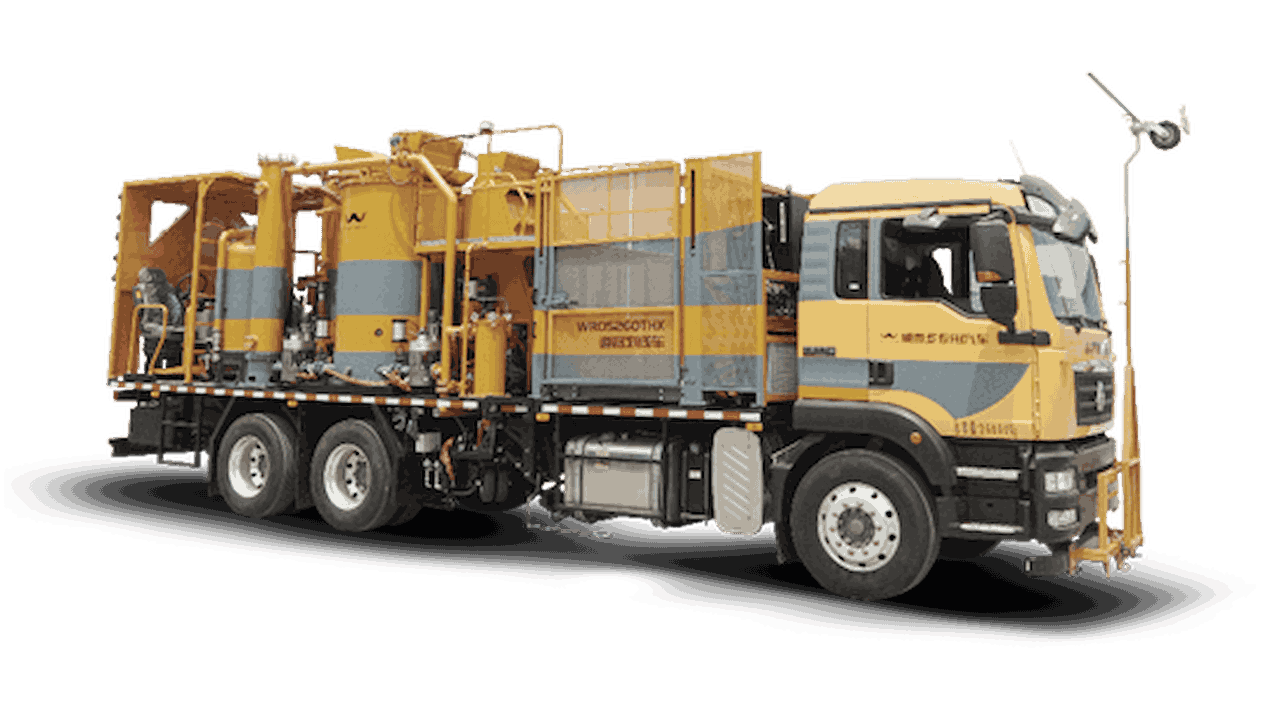

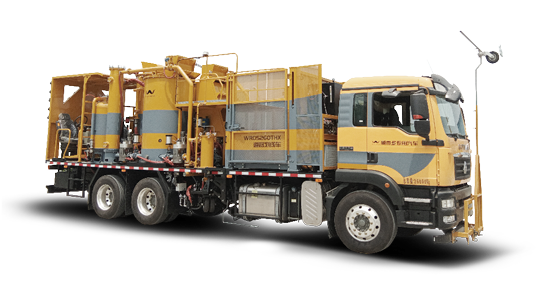

WRD526OTHX Road Marking Vehicle

The WRD5260THX road marking vehicle is a large road marking equipment that meets international industry standards.

Product Model

WRD5260THX

Wheelbase

4975+1400mm

Total mass

26000kg

Engine Model

MC07H.35-60 National VI

Marking device

Hot melt flat feeder, vibrating feeder, dot extrusion feeder

glass bead jar capacity

2X300L

Marking width

50-200mm (optional, different hopper sizes required)

Marking thickness

1.5-2.5mm

External dimensions

10515*2550*3930mm

Curb weight

22100kg

Chassis

China National Heavy Duty Truck Group Shandeka

Engine power

254kW

Paint can capacity

X1450L

Marking methods

Hot melt flat line, oscillation, dot pattern

Construction speed

0-8km/h

Product Model

WRD5260THX

External dimensions

10515*2550*3930mm

Wheelbase

4975+1400mm

Curb weight

22100kg

Total mass

26000kg

Chassis

China National Heavy Duty Truck Group Shandeka

Engine Model

MC07H.35-60 National VI

Engine power

254kW

Marking device

Hot melt flat feeder, vibrating feeder, dot extrusion feeder

Paint can capacity

X1450L

glass bead jar capacity

2X300L

Marking methods

Hot melt flat line, oscillation, dot pattern

Marking width

50-200mm (optional, different hopper sizes required)

Construction speed

0-8km/h

Marking thickness

1.5-2.5mm

Application scenarios

Contact information

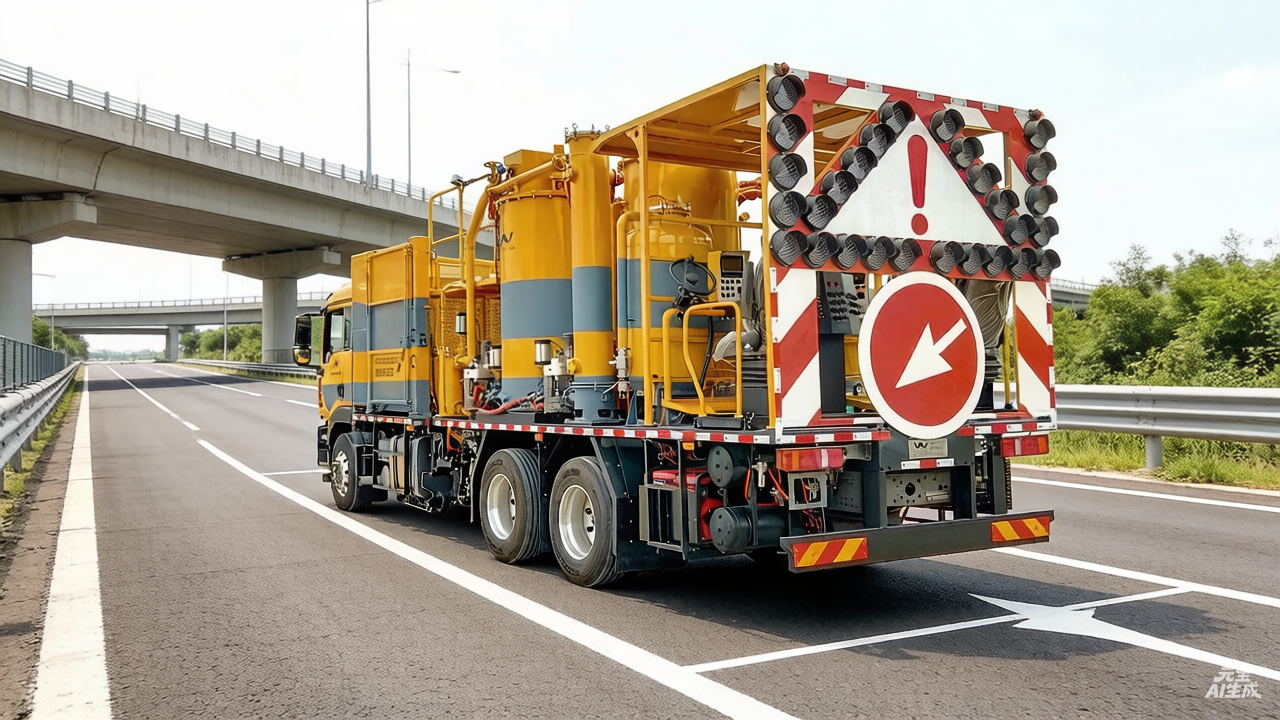

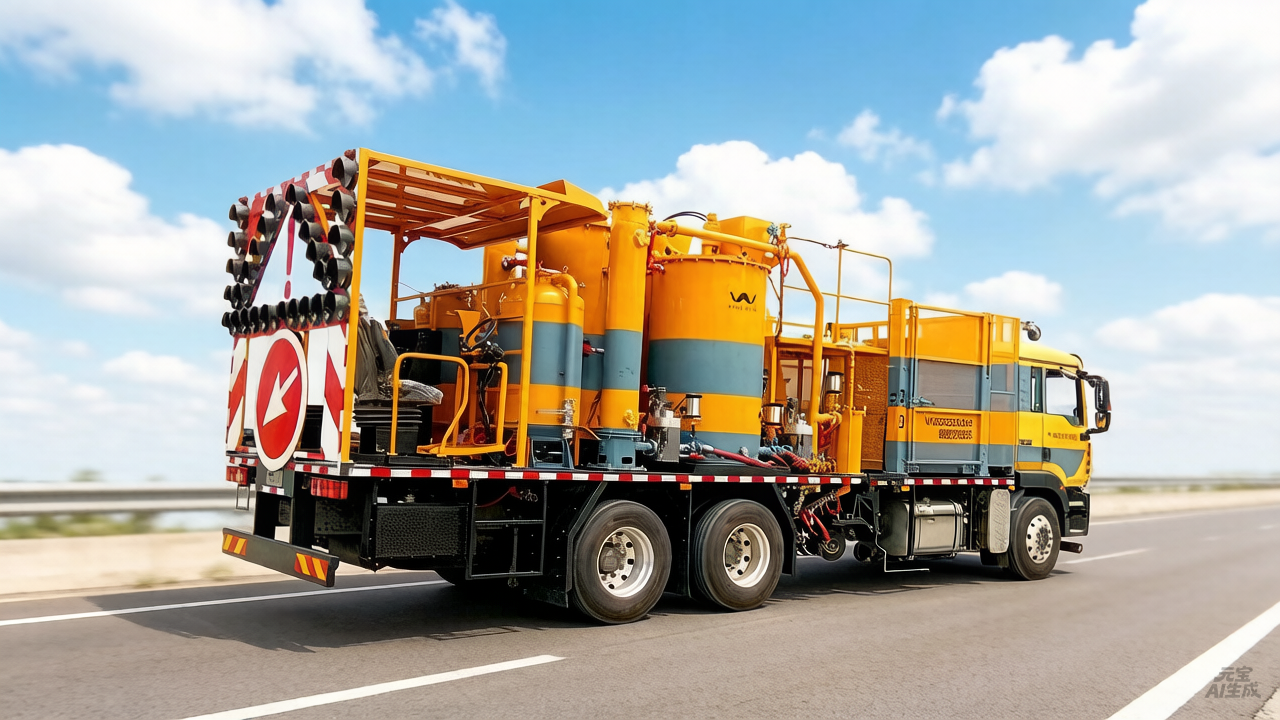

Efficient Construction Scenarios for Smart Road Marking Vehicles

The intelligent control system ensures the precision and efficiency of construction, showcasing a modern and intelligent road maintenance construction scenario.

Efficient Construction Scenarios for Smart Road Marking Vehicles

The intelligent control system ensures the precision and efficiency of construction, showcasing a modern and intelligent road maintenance construction scenario.
