Road marking vehicle

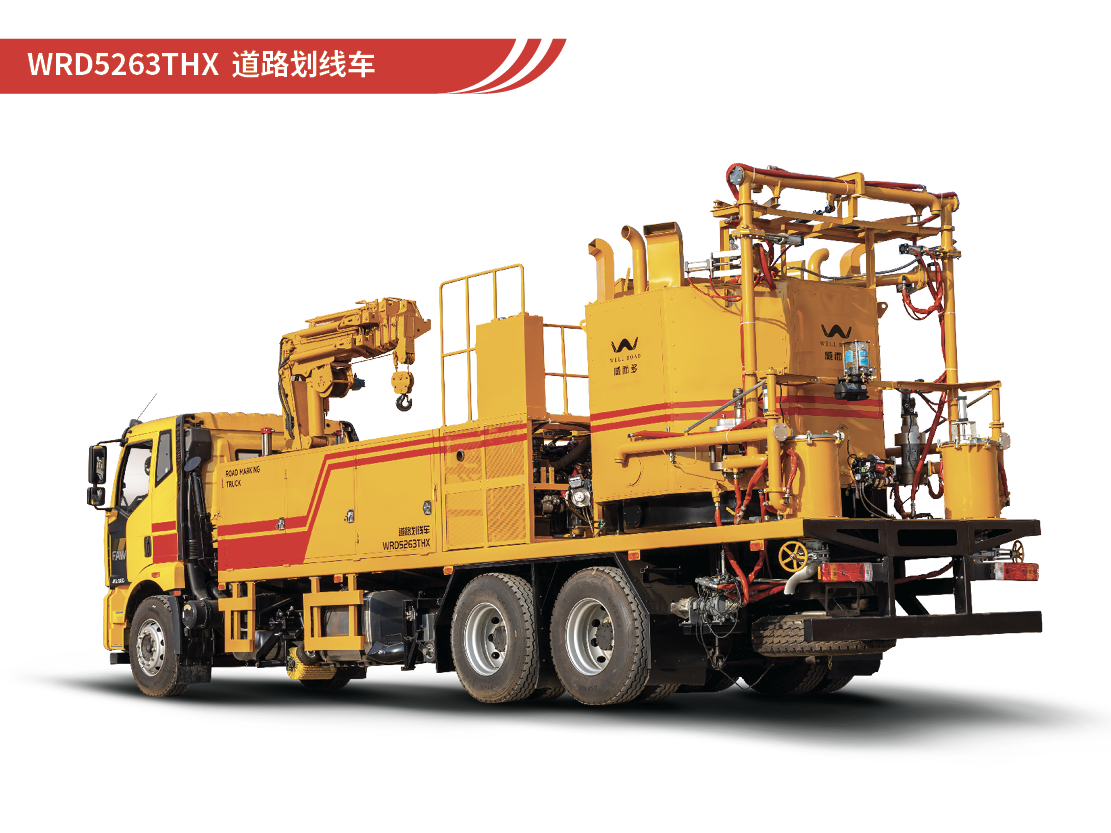

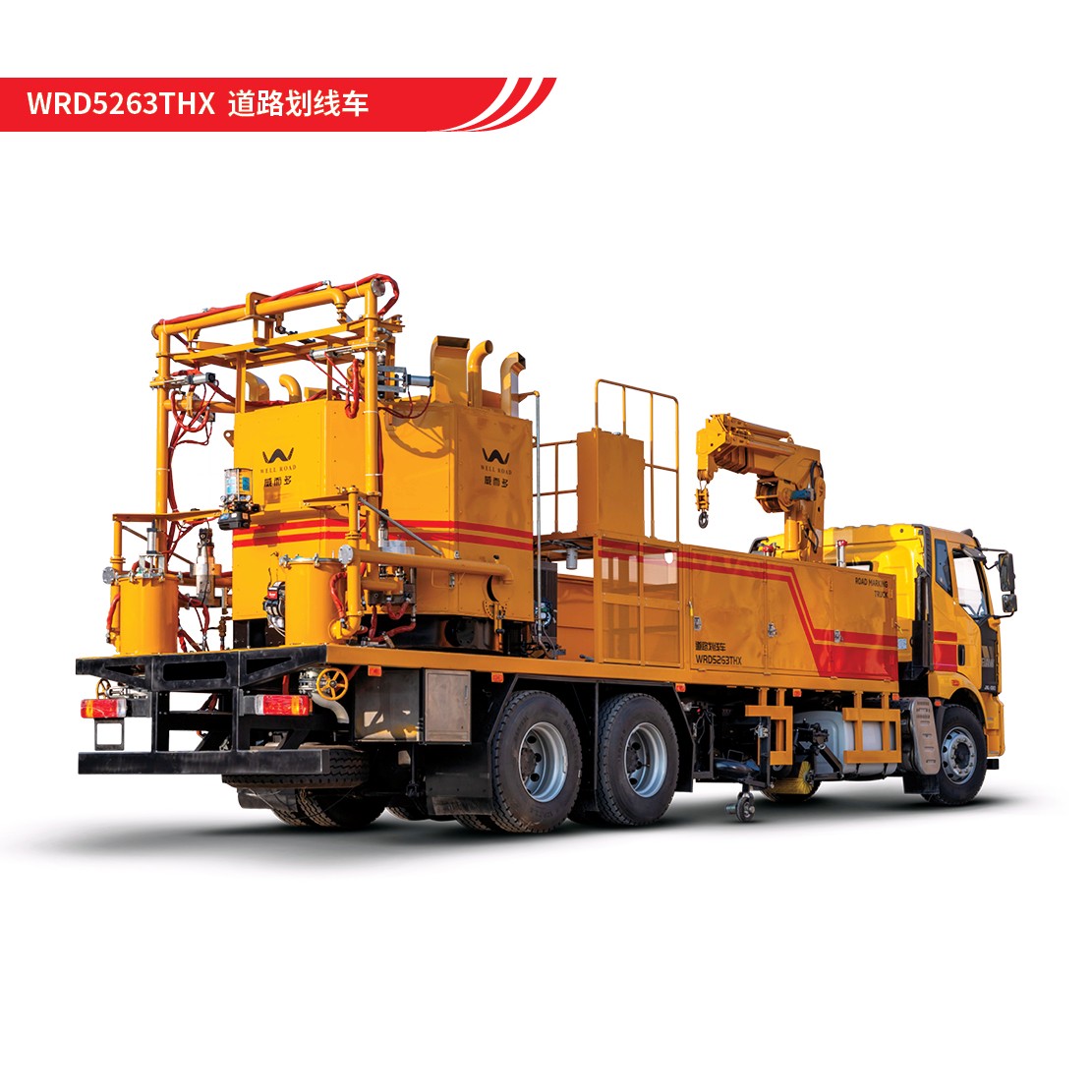

WRD5263THX Road Marking Vehicle

WRD5263THX

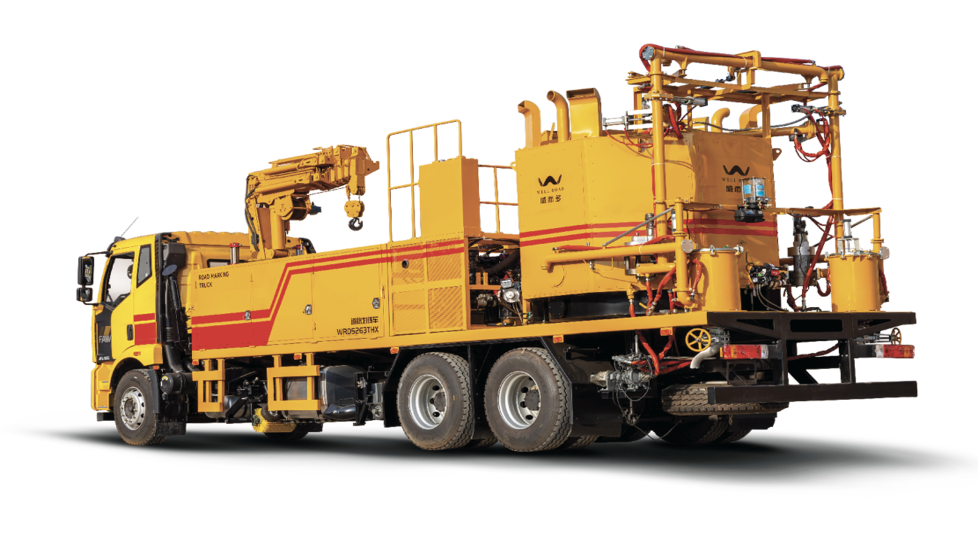

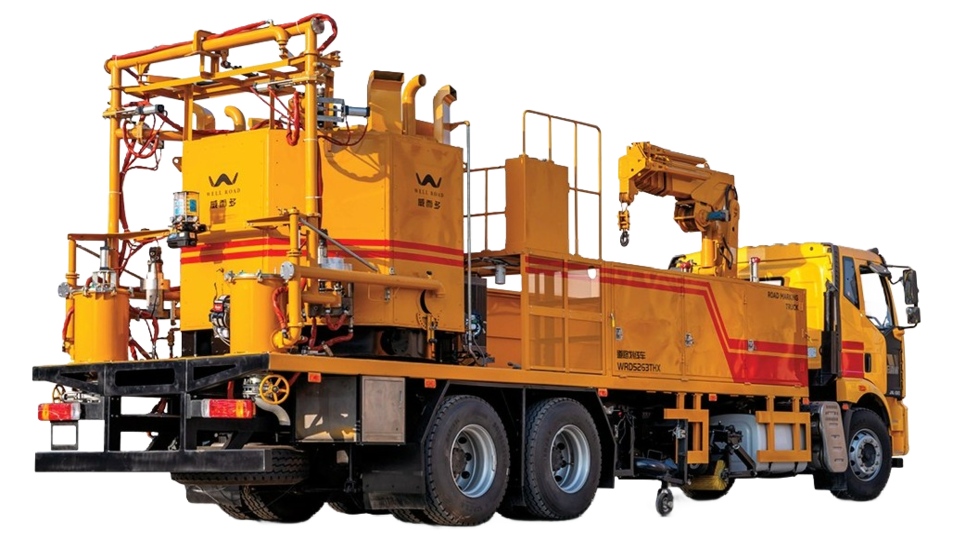

The WRD5263THX is a multifunctional large road marking vehicle equipped with a 6-ton ultra-large capacity melting kettle, a 10-ton on-board crane, dual high-pressure spraying pumps on both sides, and an intelligent line-marking control system. It integrates melting, feeding, conveying, sweeping, spraying, and calibration, and can efficiently complete multiple types of line marking construction, greatly improving work efficiency and automation level.

Advantages and Features

Advantages and features

High-efficiency road marking construction

The road marking vehicle integrates material melting and road marking application, and is equipped with a large-capacity paint tank and glass bead tank to ensure uninterrupted road marking application over long distances, and makes long-distance relocation for application more convenient.

High-efficiency melting system

The horizontal paint tank features a built-in automatic tumbling stirring system and a diesel burner heating system. This ensures that the paint inside the tank is thoroughly mixed while melting rapidly, guaranteeing a stable structure and uniform composition after melting. This ensures that the performance of the road marking paint is not affected by improper heating.

Unique walking system

Employing a unique hydraulic transfer (hydraulic drive) system, the marking vehicle can perform marking work at a uniform speed, ensuring even marking thickness and a neat, aesthetically pleasing appearance. The drive system includes an external interface, eliminating the need for a hydraulic station, saving space and reducing the cost of marking operations.

Intelligent road marking control system

Better construction safety and comfort

Unique anti-corrosion and durable configuration

Basic product parameters

Gain a comprehensive understanding of product information

WRD5262THXRT Hot-Melt Road Marking Vehicle

The WRD5260THX road marking vehicle is a medium-to-heavy-duty road marking equipment that conforms to international industry standards.

Product Model

WRD5263THX

Engine power

238KW

Curb weight

24905kg

Total mass

26000kg

Lifting weight

Farthest end 1.5t

Material feeding device

Dual-feed imported melt conveying pump, capable of fully enclosed and fully insulated melt delivery on both left and right sides, with freely controllable conveying pressure and flow.

Spraying method and width

High-pressure airless spraying of normal temperature/water-based/two-component coatings and primers, with an adjustable spray width of 50-500mm

Construction speed

0-8km/h

Engine Model

CA6DK2B32E65

Wheelbase

6000+1350mm

Chassis Model

Liberation CA1260P62K1L5T1E6Z

Hoisting device

10-ton truck-mounted crane

Heating Method and Hot Melt Kettle Capacity

Imported diesel heater heating, direct and indirect fusion-type hot melting kettle (effective volume 6T)

Marking device

Dual 20L/min high-pressure airless piston spray pump, capable of double-sided line marking or spraying primer

Underlining method

Room temperature/water-based/two-component coatings and primers spraying

Product Model

WRD5263THX

Engine Model

CA6DK2B32E65

Engine power

238KW

Wheelbase

6000+1350mm

Curb weight

24905kg

Chassis Model

Liberation CA1260P62K1L5T1E6Z

Total mass

26000kg

Hoisting device

10-ton truck-mounted crane

Lifting weight

Farthest end 1.5t

Heating Method and Hot Melt Kettle Capacity

Imported diesel heater heating, direct and indirect fusion-type hot melting kettle (effective volume 6T)

Material feeding device

Dual-feed imported melt conveying pump, capable of fully enclosed and fully insulated melt delivery on both left and right sides, with freely controllable conveying pressure and flow.

Marking device

Dual 20L/min high-pressure airless piston spray pump, capable of double-sided line marking or spraying primer

Spraying method and width

High-pressure airless spraying of normal temperature/water-based/two-component coatings and primers, with an adjustable spray width of 50-500mm

Underlining method

Room temperature/water-based/two-component coatings and primers spraying

Construction speed

0-8km/h

Application scenarios

Contact information

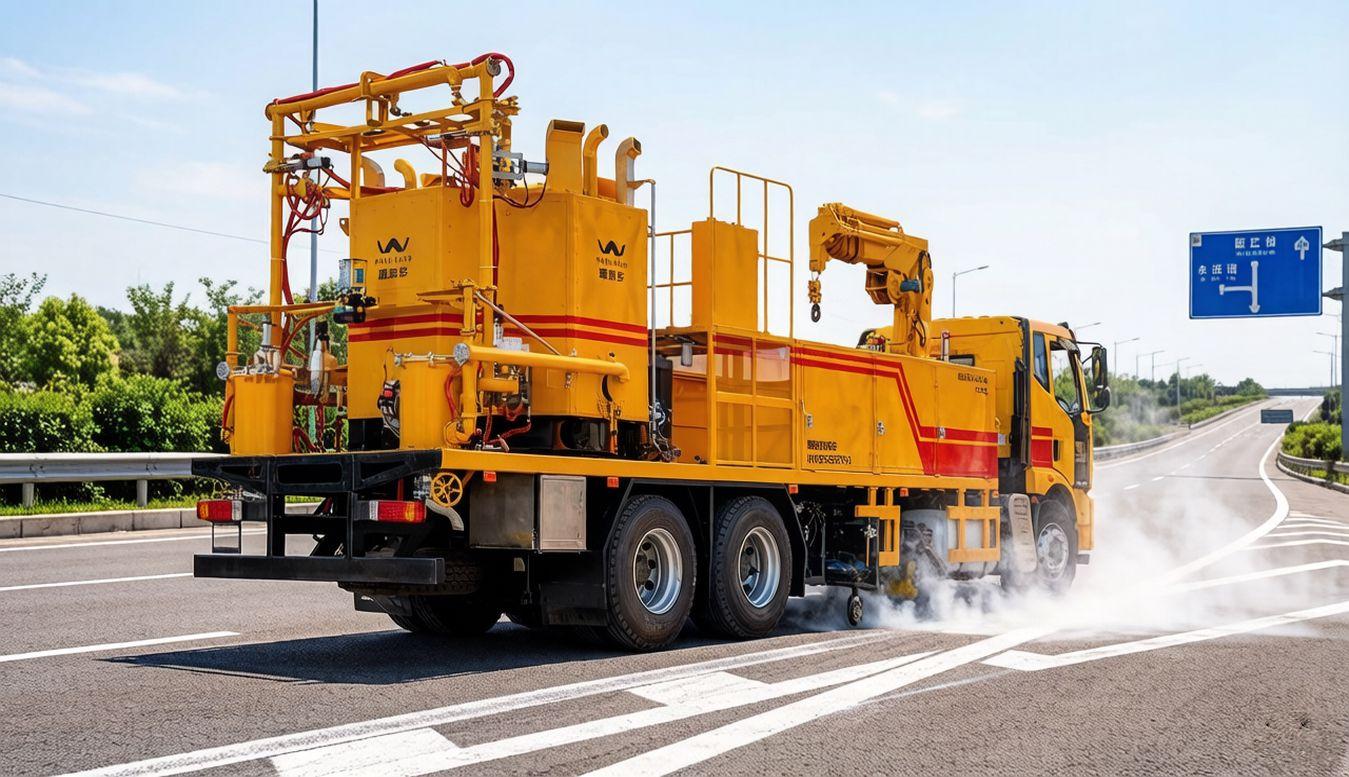

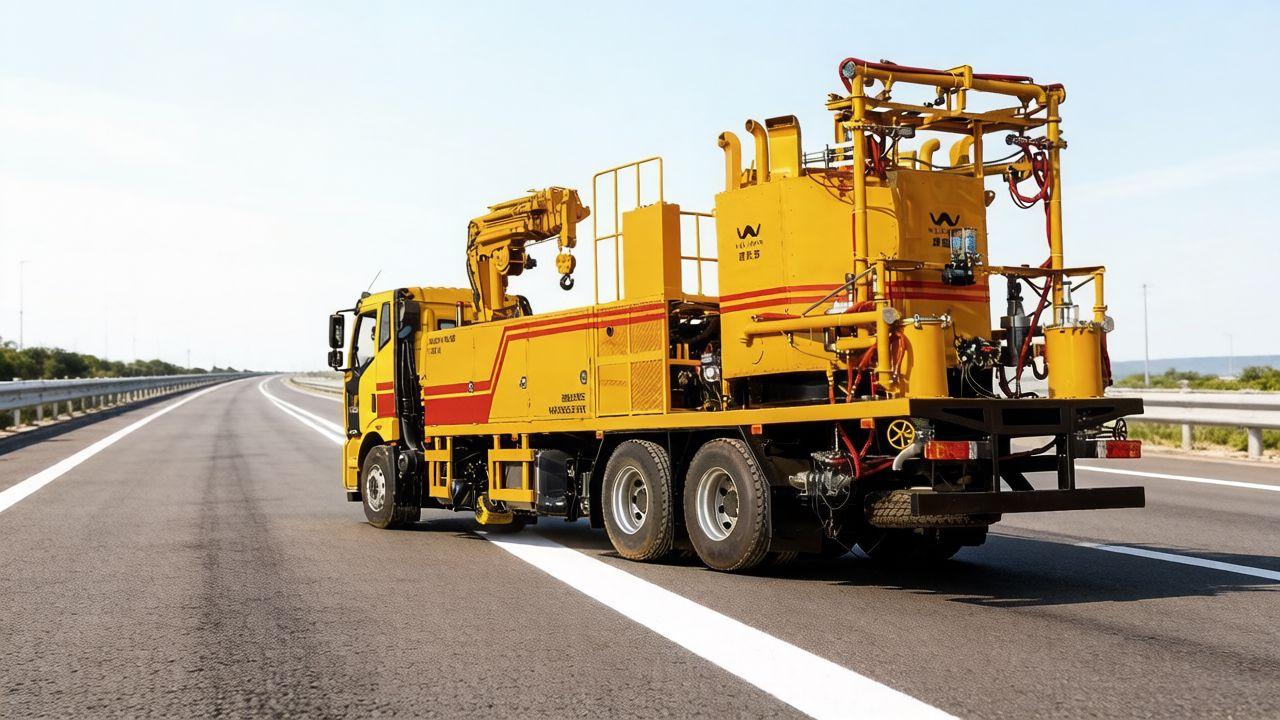

Efficient Construction Scenarios of Smart Road Marking Vehicles

A large yellow line-marking construction vehicle labeled 'WRD5263THX' is efficiently operating beside the highway. In the scene, its large melting pot, on-board crane, and high-pressure spraying system are working together to accurately and efficiently spray molten paint onto the road surface, creating clear traffic markings. The intelligent control system ensures construction precision and efficiency, showcasing a modern, smart road maintenance operation.

Efficient Construction Scenario of Intelligent Road Marking Vehicle
