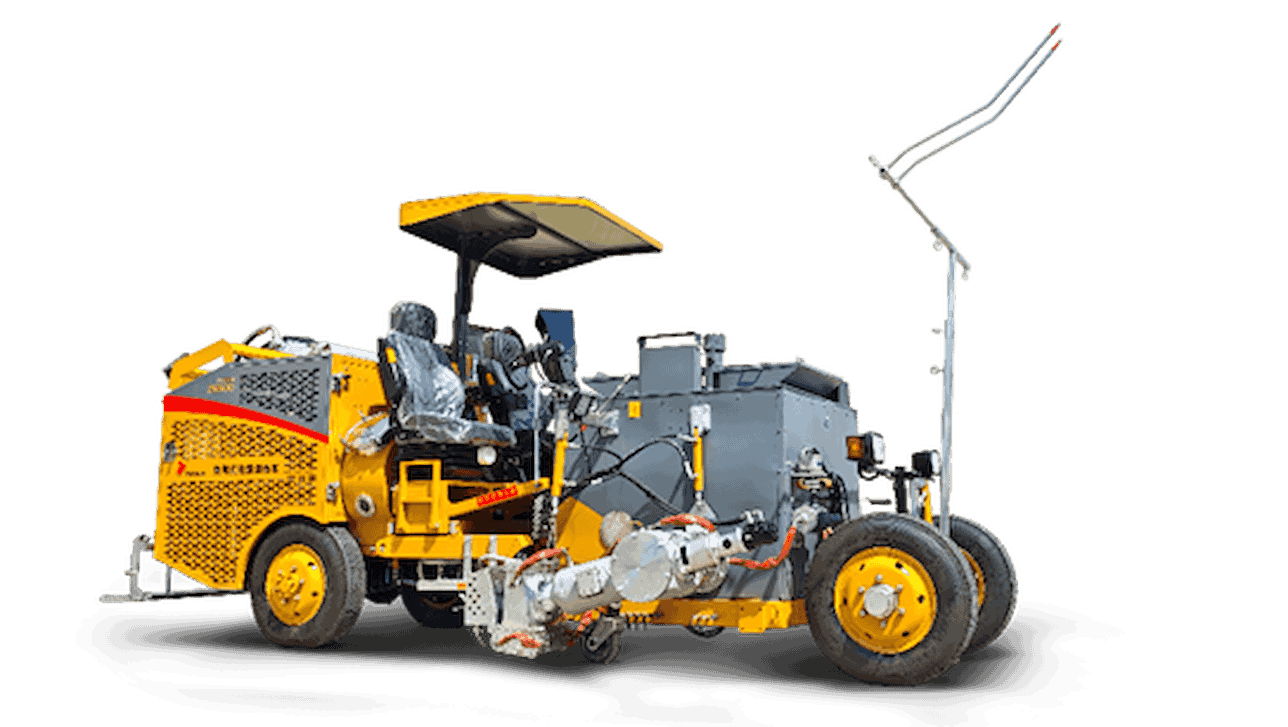

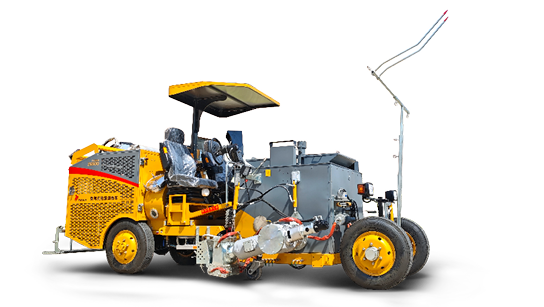

TT-C03-R/ZG500 Riding-type Hot Melt Road Marking Machine

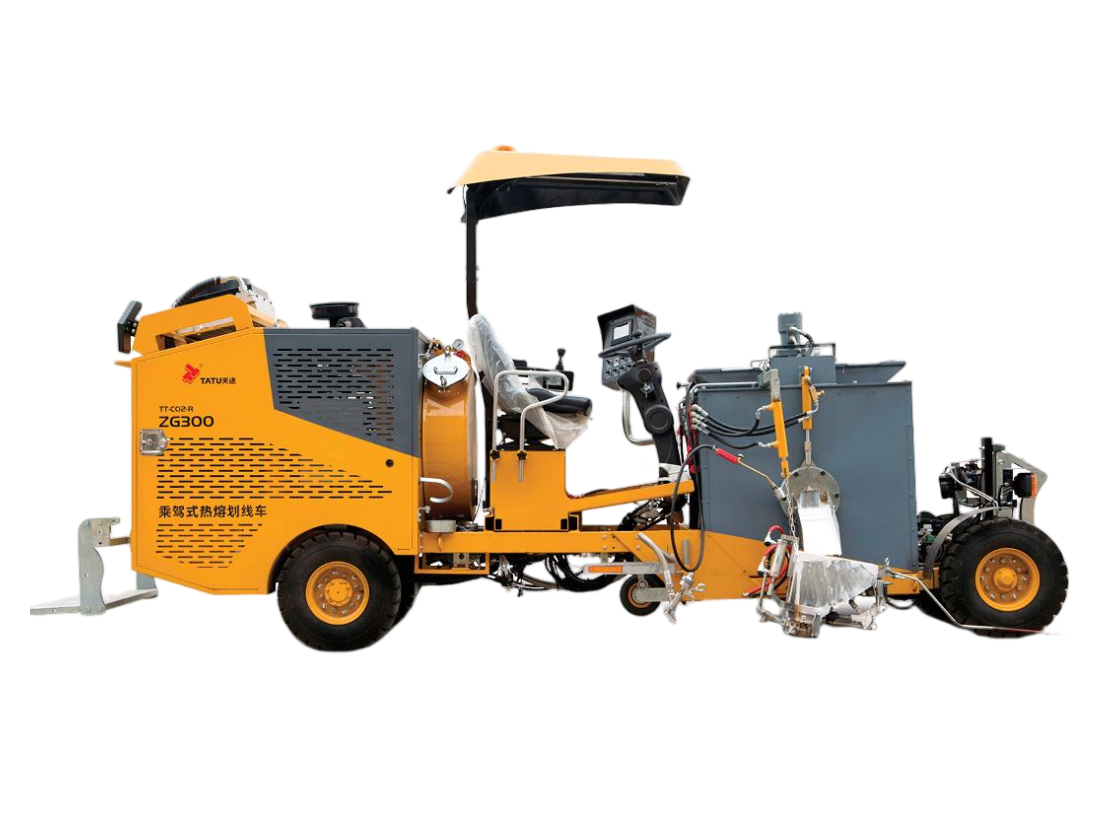

TT-CO2-R/ZG300 Hot-melt Road Marking Machine

This machine may be equipped with an optional intelligent monitoring system, featuring a positioning system, off-site warning system, fault early warning system, and construction data management system. The positioning and departure alert system enables effective supervision of the equipment. The fault warning and analysis system for the line marking machine effectively prevents malfunctions and facilitates rapid fault diagnosis and repair. The construction data management system precisely collects and calculates real-time construction parameters such as material consumption per unit time, line length, construction area, construction thickness, and line brightness. This allows for effortless, precise control over the entire line marking process, effectively reducing management costs.

Advantages and Features

Advantages and features

One machine, multiple functions

This series of hot-melt ride-on line-marking machines employs a modular platform design, compatible with gravity-fed material delivery and a scraper-type hopper marking assembly. Suitable for both straight lines and oscillating lines, the system facilitates swift hopper changes to effortlessly complete scraping applications for either straight lines or "mountain-shaped" oscillating lines.

Exceptionally high marking speed

The globally patented continuous melting vessel (featuring segmented non-stop melting, auxiliary heating, and constant circulation feeding) delivers dynamic material supply. This enables line-marking machines to replenish materials during operation without halting work, achieving 2-3 times the construction efficiency of conventional ride-on line-markers that require stopping to replenish materials.

Exceptional marking quality

Compared to conventional ride-on line-marking machines that halt for material replenishment, proprietary technologies such as neat dotted-line end anti-drip control, synchronised left-right line application, simultaneous paint and glass bead adjustment, glass bead spill alerts, and constant-speed uniform travel significantly enhance the adhesion, straightness, and reflectivity of the marking paint. This results in fewer joints, uniform thickness, and a 30% increase in both service life and reflectivity.

Rapid switching of line marking equipment

This machine is equipped with a sliding operating mechanism and a quick-change marking device, enabling line marking on both left and right sides. No more need to fret over reverse-direction marking.

Pneumatic glass bead tank

The filling port is positioned low and permits glass beads to be added from either side. Both sides feature glass bead outlets, enabling rapid switching between left and right-hand bead distribution.

Constant-temperature heating and insulation system

This machine incorporates a fuel-fired heating system, thermal oil insulation, and an automatic temperature control system. The seamless integration of these three components ensures the coating remains at optimal marking conditions, thereby guaranteeing consistent line quality.

Basic product parameters

Gain a comprehensive understanding of product information

TT-CO2-R/ZG300 Hot-Melt Ride-On Road Marking Machine

engine

33kw

Walking speed

Forward 0–10 km/h Reverse 0–6 km/h

Bucket capacity

300L

Heating method

Thermal oil

Line thickness

1.5-2.5mm

Weight

2800kg

Drive method

Hydrostatic drive axle

Marking method

Scraping and application method

Glass bead container capacity

120L

Line width

100, 150, 200, 300mm (adjustable, interchangeable buckets)

External dimensions

5130X1970X2640mm

engine

33kw

Drive method

Hydrostatic drive axle

Walking speed

Forward 0–10 km/h Reverse 0–6 km/h

Marking method

Scraping and application method

Bucket capacity

300L

Glass bead container capacity

120L

Heating method

Thermal oil

Line width

100, 150, 200, 300mm (adjustable, interchangeable buckets)

Line thickness

1.5-2.5mm

External dimensions

5130X1970X2640mm

Weight

2800kg
