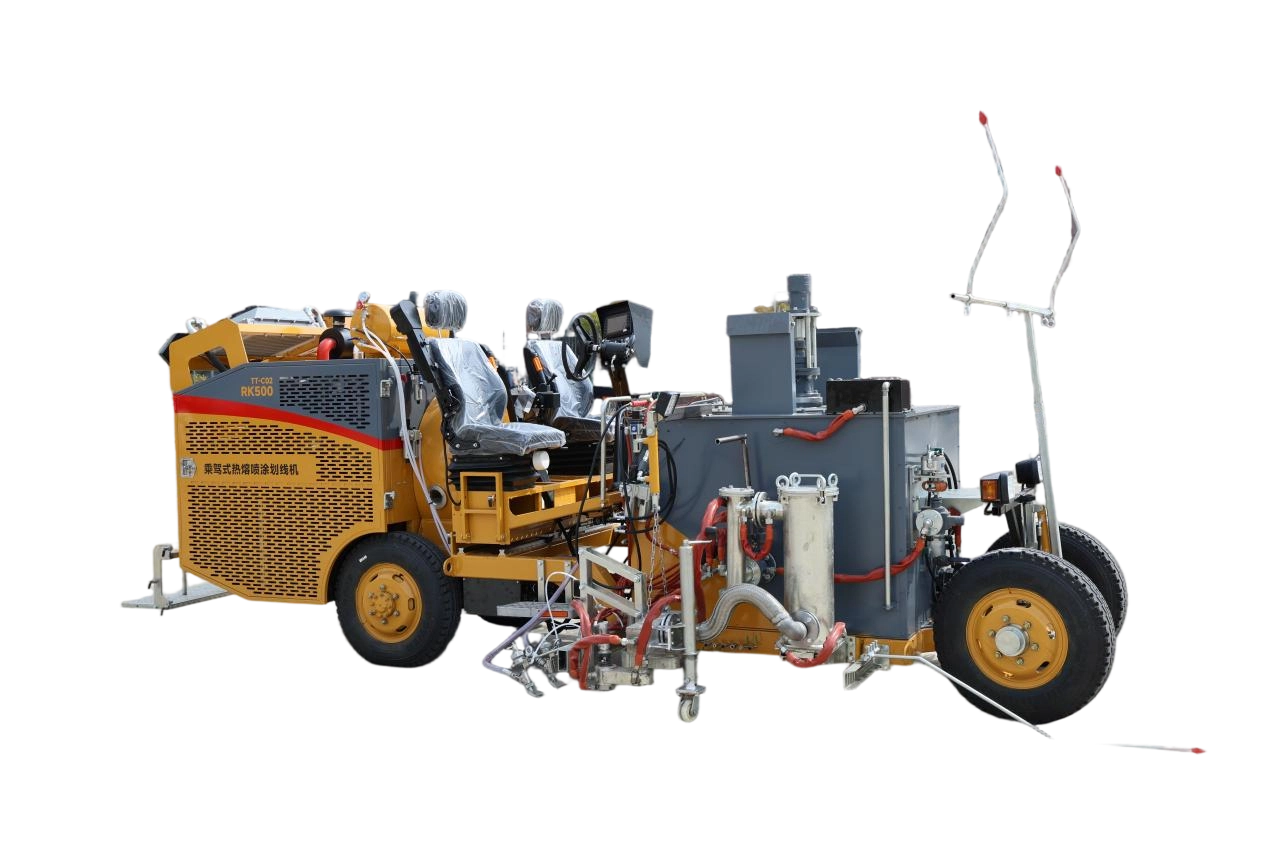

TT-CO2-RK500 Ride-on Thermoplastic Spray Road Marking Machine

Equipped with an all-in-one multifunctional hopper, this machine switches various line widths via control system without hopper replacement. It supports dot marking, chessboard lines and stair lines. A matching rumble hopper can be fitted for rumble strips with one-click mode switching on the control panel. Adopting high-pressure thermoplastic spraying technology, it delivers five core strengths: high construction efficiency, strong coating adhesion for longer service life and lower material & labor costs, direct overlay on old markings without removal, flexible adjustment of marking thickness, and 50–300mm variable marking widths by adjusting gun height. Powered by 74.9kW engine with 0–8km/h travel speed, it features a 600L thermoplastic kettle, twin 90L glass bead tanks and 11° max climbing gradient. Stable and high-capacity, it fits marking projects on highways, factory zones and parking lots.

Advantages and Features

Advantages and features

Multifunctional Integrated Hopper, One-Click Line Switch via Electric Control

No hopper replacement required. Multiple line widths of 50-300mm can be switched directly through the control system. It comes with dot marking function to create chessboard lines and stair lines. After fitting an optional rumble hopper, rumble strips can also be switched electrically, covering most marking applications with one machine.

High-Pressure Spraying for Greatly Improved Construction Efficiency

Designed with high-pressure atomized spraying, it features fast paint output and feeding speed with a travel speed of 0~8km/h. It achieves higher daily construction mileage than conventional screed machines and shortens construction periods significantly.

Strong Coating Adhesion for Durable Markings & Lower Costs

High-pressure injection drives paint particles into pavement gaps, forming compact coatings that tightly bond with the road surface. This extends marking service life, reduces repaving frequency and cuts overall costs of equipment, paint and labor.

Direct Overlay on Old Markings without Pre-Cleaning

The overhead spray gun avoids uneven old markings. Old lines do not need to be removed during renovation, eliminating extra cleaning work, speeding up construction and preventing defects from incomplete old line removal.

Freely Adjustable Marking Thickness with Simple Operation

Paint flow is controlled by adjusting discharge pressure and travel speed to flexibly change marking thickness. The intuitive adjustment meets thickness standards for various roads.

Line Width Adjustment without Hopper Replacement for Versatile Scenarios

Marking width is changed by adjusting the gun height above ground, eliminating the troublesome hopper replacement needed on traditional screed machines. It supports full 50-300mm width range for highways, industrial parks, parking lots and more.

Basic product parameters

Gain a comprehensive understanding of product information

TT-CO2-RK500 Ride-on Thermoplastic Spray Road Marking Machine

TT-CO2-RK500 Ride-on Thermoplastic Sprayer: multi-function electric hopper, adjustable lines, covers old markings for all road marking jobs.

Power

74.9 kW

Line width

50–300 mm

Climbing hydraulic pressure

10–15 MPa

Max. climbing angle

11°

Diesel tank

170 L

Hydraulic oil tank

135 L

Wheelbase

3380 mm

Travel speed

0–8 km/h

Travel hydraulic pressure

5–6 MPa

Hot-melt kettle capacity

600 L

Glass bead tank capacity

2 × 90 L

Front wheel width

1365 mm

Rear wheel width

1420 mm

Dimensions

Transport 5370×1850×2250 mm;
Operating 5350×2420×2610 mm

Power

74.9 kW

Travel speed

0–8 km/h

Line width

50–300 mm

Travel hydraulic pressure

5–6 MPa

Climbing hydraulic pressure

10–15 MPa

Hot-melt kettle capacity

600 L

Max. climbing angle

11°

Glass bead tank capacity

2 × 90 L

Diesel tank

170 L

Front wheel width

1365 mm

Hydraulic oil tank

135 L

Rear wheel width

1420 mm

Wheelbase

3380 mm

Dimensions

Transport 5370×1850×2250 mm;
Operating 5350×2420×2610 mm
