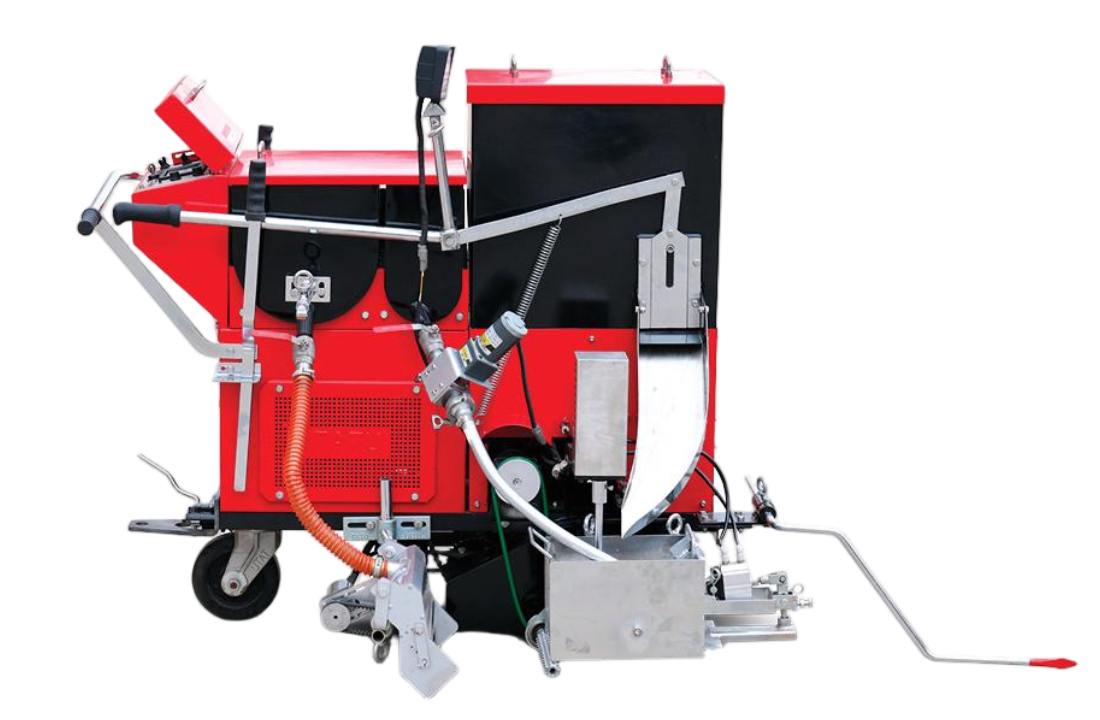

TT-FFL Centrifugal Double Component Marking Machine

This line marking machine supports multi-functional operation and can be equipped with a dual-component centrifugal coating system, integrating scraping, structural marking and other functions to reduce equipment investment. Featuring a continuously variable transmission drive, it operates at a constant speed of 0–4 km/h in both directions, ensuring labour-saving and efficient long-distance construction. The intelligent operating system automatically controls line profile, mixing, and proportioning ratios. The centrifugal spray system features quick assembly/disassembly and adjustable parameters, enabling single-pass wide-width marking. Paired with an aluminium film spreader, it offers adjustable spreading width and quantity. Integrated electrical, steering, and spray systems ensure stable operation, agile manoeuvring, and uniform, secure glass bead distribution. The overall system delivers intelligent efficiency and superior construction quality.

Advantages and Features

Advantages and features

One machine, multiple uses; multifunctional integration

The equipment supports the addition of a dual-component spray system (CPTH) to the standard configuration, integrating dual-component scraping, structural markings and multiple line patterns to achieve multi-purpose functionality. This effectively reduces the user's investment in specialised line-marking equipment, offering superior value for money.

Continuously variable transmission drive, long-distance high-efficiency operation

Featuring a 0–4 km/h stepless speed variation system, it enables bidirectional uniform self-propulsion with smooth operation. This significantly reduces operator fatigue, enhances construction efficiency, and minimises manpower requirements, making it particularly suitable for extended continuous line marking tasks.

Intelligent Operating System, Smart and Precise Control

The control panel enables automated functions including line pattern selection, stirring speed adjustment, and precise mixing of coating and hardener ratios. Its operation is straightforward and intuitive, delivering high application accuracy to meet diverse road marking requirements.

Centrifugal coating system, wide-width single-pass forming

The centrifugal spray system features straightforward assembly and disassembly, with centrifugal speed and coating flow adjustable in real time via the control panel. By swapping out different hoppers, it accommodates varied line widths, enabling wide markings such as zebra crossings to be formed in a single pass for highly efficient application.

Film-laying aluminium spreader, easily adjustable without changing the machine

Optional film-pulling aluminium spreader allows for effortless adjustment of glass bead spreading width and quantity according to construction requirements. It accommodates diverse application scenarios without needing to replace the spreader, offering greater flexibility and convenience.

Electronically controlled + steering + spray application, stable and reliable with high quality

The electrical system employs an independently integrated control unit, offering stable performance, compact dimensions, clear labelling, and one-touch lane pattern switching. The adjustable steering mechanism is lightweight, agile, and responsive. The pneumatic glass bead application delivers superior uniformity and adhesion compared to conventional spreading methods, significantly enhancing line reflectivity and overall construction quality.

Basic product parameters

Comprehensive understanding of product specifications

TT-FFL Centrifugal Two-Component Marking Machine

This line-marking machine supports multiple functions in one unit, with the option to add a two-component spray-coating system. It integrates scraping, structural marking and other functions into a single device, thereby reducing equipment investment.

engine

6.0HP

Travel speed

Forward: 0–4 metres per hour Reverse: 0–3.2 metres per hour

Glass bead jar capacity

20L

Line thickness

Solid lines: 1.5–3.0 mm Structural markings: 1.5–3.0 mm Vibration lines: 5–9 mm (optional)

External dimensions

1375×1265×1210mm

Drive System

Imported Continuously Variable Transmission

Paint Can Capacity

50L

Curing agent tank capacity

10L

Line width

Standard specification: 150mm (Optional: 50–600mm)

重量

280Kg

engine

6.0HP

Drive System

Imported Continuously Variable Transmission

Travel speed

Forward: 0–4 metres per hour Reverse: 0–3.2 metres per hour

Paint Can Capacity

50L

Glass bead jar capacity

20L

Curing agent tank capacity

10L

Line thickness

Solid lines: 1.5–3.0 mm Structural markings: 1.5–3.0 mm Vibration lines: 5–9 mm (optional)

Line width

Standard specification: 150mm (Optional: 50–600mm)

External dimensions

1375×1265×1210mm

重量

280Kg
