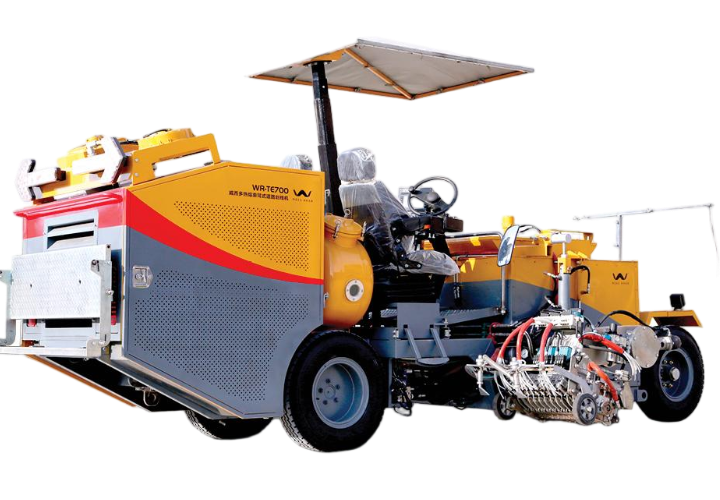

WR-TE700 Hot-Melt Ride-On Road Marking Machine

The WR-TE700 boasts ample power and excellent body stability. Its hydraulic travel system delivers smooth handling, ensuring robust and reliable overall operation. Travel speeds reach 8 to 10 kilometres per hour, while equipped with a transfer speed mode, it can achieve a maximum of 12 to 15 kilometres per hour, facilitating rapid relocation requirements.

Advantages and Features

Advantages and features

Genuine imported powertrain

Equipped with an imported Kubota engine, delivering robust power and stable output. Specifically engineered for demanding road marking operations, it offers low fuel consumption, minimal noise, reduced failure rates, and extended service life. Paired with a high-efficiency screw-type air compressor, it provides ample and consistently stable air supply. This ensures reliable power for all working conditions—including line marking, spraying, and pneumatic control—guaranteeing no loss of speed or power during prolonged continuous operation. Consequently, overall construction efficiency and equipment durability are significantly enhanced.

Imported hydraulic and travel drive systems

Equipped with a stable and reliable imported hydraulic system and imported wheel-end motors, this unit delivers rapid hydraulic response, consistent pressure, and precise control. It offers powerful yet smooth travel, maintaining a stable operating posture on both level surfaces and in complex working conditions, thereby effectively minimising the impact of equipment vibration on line-marking precision. The integrated system features excellent sealing properties, wear resistance, and durability, exhibiting minimal oil leakage and slow performance degradation over extended use. This significantly enhances equipment reliability and service life, meeting the stringent demands of diverse road marking projects.

Intelligent Electronic Control and Multi-Function Hopper System

Equipped with a convenient electronic control system and an integrated multi-purpose hopper, the straight line cutting employs a modular blade assembly design enabling rapid switching between different line widths without hopper replacement. It facilitates seamless switching between over 100 extended line patterns including grid lines, staircase lines, piano key lines, rib lines, double solid lines, and alternating solid-dash lines. Dot line widths can also be precisely controlled via the system. Operation is straightforward and intuitive, with one-touch switching between line patterns. This significantly reduces changeover time, markedly enhancing construction flexibility and efficiency.

High-capacity, long-endurance operational configuration

Equipped with a 150-litre high-capacity diesel tank and a 600-litre high-capacity insulated hot-melt kettle, the oversized fuel tank effectively extends operational duration, reduces frequent refuelling downtime, and enhances continuous working capability; The thermal melting pot boasts superior insulation properties and precise, stable temperature control, ensuring uniform coating melting and consistent heating. This prevents temperature fluctuations from compromising line formation quality, meeting the demands of large-area, long-distance continuous marking. It significantly accelerates overall project progress and enhances construction efficiency.

User-friendly and comfortable operating design

Featuring adjustable dual-row deluxe seats with fore/aft and recline adjustment capabilities, these seats can extend beyond the vehicle's body, significantly broadening the construction observation field. This facilitates real-time monitoring of line marking results, line profile accuracy, and road surface conditions by operators, thereby reducing visual blind spots and operational errors. Ergonomic design effectively minimises fatigue during prolonged driving, enhancing operational comfort and safety, making complex line marking operations easier, more precise, and efficient.

High-quality dual glass bead spreading system

Equipped with a high-capacity dual glass bead tank, it enables independent storage and simultaneous application of both large and small glass beads. This ensures uniform mixing ratios and stable spreading, significantly enhancing the night-time reflectivity and visibility of road markings, thereby improving road safety. The dual-tank design offers substantial capacity and prolonged material supply, eliminating the need for frequent refilling. Combined with a precise material control system, it guarantees even glass bead distribution and strong adhesion, comprehensively improving the aesthetic quality and service life of road markings to meet high-standard road construction requirements.

Basic product parameters

Comprehensively understand product specifications

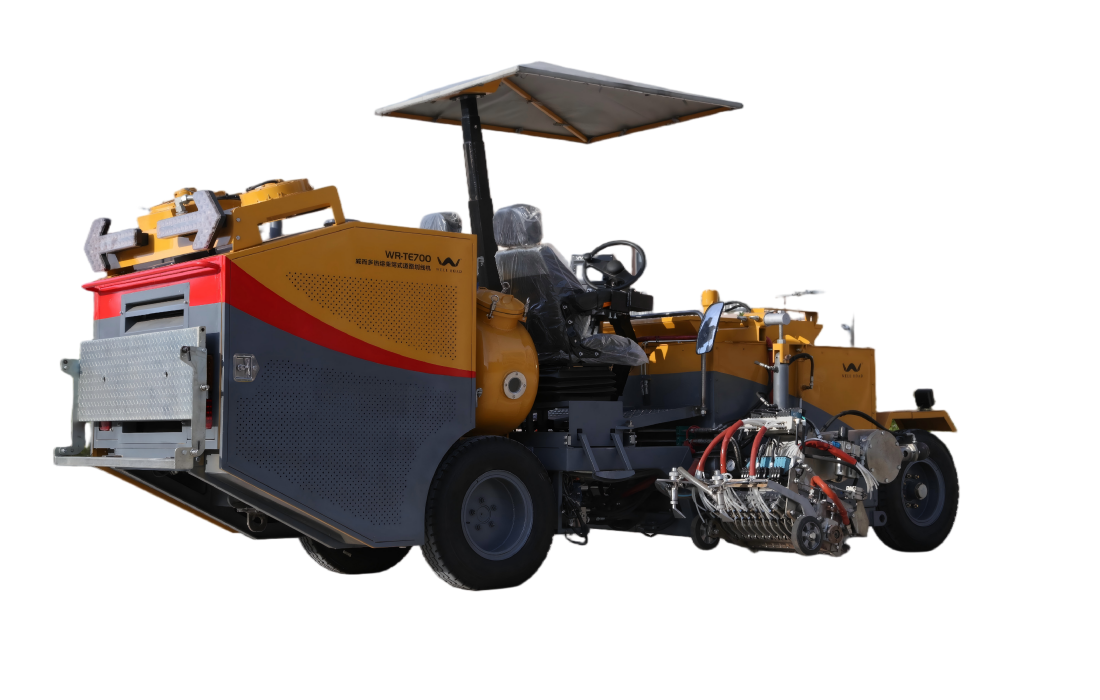

WR-TE700 Hot-Melt Ride-On Road Marking Machine

The WR-TE700 boasts ample power and excellent body stability. Its hydraulic travel system delivers smooth handling, ensuring robust and reliable overall operation. Travel speeds reach 8 to 10 kilometres per hour, while equipped with a transfer speed function, it can achieve a maximum of 12 to 15 kilometres per hour, facilitating rapid relocation requirements.

Engine power

61.6KW

Suitable coating types

Thermoplastic coating

Stroke speed

0~15Km/H

Stroke width

50-500mm

Work pressure

5~16MPa

External dimensions

5700×2360×2800mm

Power source

Hydraulic power, imported variable displacement hydraulic pump

Glass bead jar capacity

2×140L (two separate tanks)

Bucket capacity

600L

Transition speed

0-15Km/H

Strikethrough type

Solid lines, dotted lines, straight lines, staircase lines, rib lines, piano-key lines, chess-piece lines (marking hoppers may be fitted to either side of the vehicle body)

Total weight

4500KG

Engine power

61.6KW

Power source

Hydraulic power, imported variable displacement hydraulic pump

Suitable coating types

Thermoplastic coating

Glass bead jar capacity

2×140L (two separate tanks)

Stroke speed

0~15Km/H

Bucket capacity

600L

Stroke width

50-500mm

Transition speed

0-15Km/H

Work pressure

5~16MPa

Strikethrough type

Solid lines, dotted lines, straight lines, staircase lines, rib lines, piano-key lines, chess-piece lines (marking hoppers may be fitted to either side of the vehicle body)

External dimensions

5700×2360×2800mm

Total weight

4500KG
