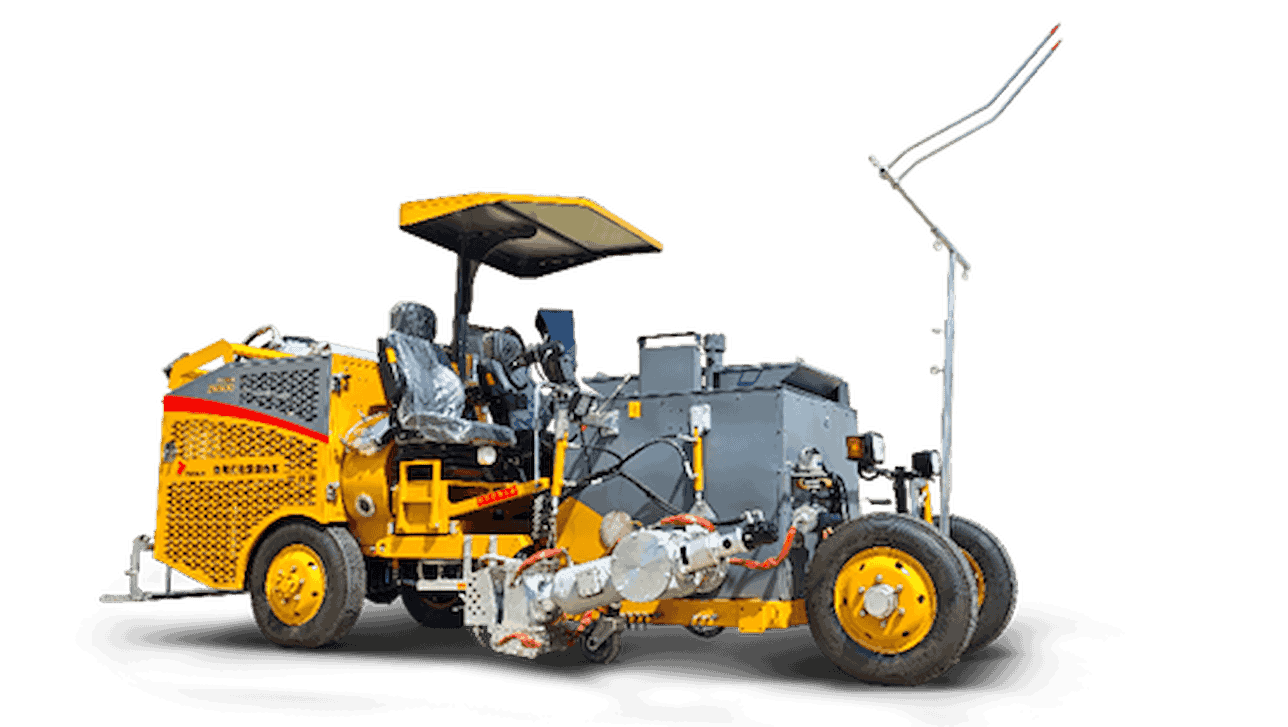

TT-CO3-R/ZG500 Thermoplastic Road Marking Machine

The TT-CO3-R/ZG500 thermoplastic ride-on road marking machine is an intelligent device combining high efficiency, multi-functionality and superior quality. It achieves high-speed continuous marking without requiring machine stoppage for material replenishment, whilst enabling flexible switching between multiple line patterns (including chequerboard lines, dotted lines, and oscillating lines) via system control. Delivering 2-3 times the operational efficiency of conventional line-marking machines, it produces exceptional marking quality that significantly enhances service life and retroreflective performance.

Advantages and Features

Advantages and features

One device, multiple functions; switch seamlessly

The equipment supports three marking methods: scraping, vibration, and spiral extrusion. Equipped with multiple spiral extrusion hoppers, it enables direct switching via the control system between various line types—including variable widths, chequerboard patterns, and spot applications—without requiring hopper replacement. This significantly enhances operational flexibility and efficiency.

Patented continuous feeding system, ensuring efficient operation without interruption

Employing a globally patented continuous-feed melting vessel, dynamic material supply is achieved, eliminating the need for stoppages to replenish materials during line marking. Construction efficiency reaches 2-3 times that of conventional equipment requiring shutdowns for material replenishment, significantly reducing project timelines.

Outstanding Construction Quality

Benefiting from patented technologies including body stability, dual-side marking, constant-speed uniform application, and synchronised adjustment of coating and glass beads, the applied road markings exhibit strong adhesion, high straightness, uniform thickness, and minimal joints. This significantly enhances the service life of the markings and their night-time retroreflective performance.

Intelligent Control and Warning System

The intelligent control system enables precise adjustment of marking parameters and functional switching, featuring functions such as glass bead spill alerts. Its operation is straightforward and intuitive, effectively ensuring stable construction processes and controllable quality.

High strength and stable structure

The machine body employs hydrostatic drive, delivering exceptional operational smoothness and high-speed traversal capability. With a maximum gradient climbing ability of 11 degrees, it can handle diverse complex terrain conditions, ensuring reliability during prolonged periods of intensive operation.

Double glass bead jar design

Featuring a dual glass bead canister design, it enables simultaneous application of two distinct glass bead specifications, catering to diverse reflective marking requirements and enhancing the functionality and professionalism of road markings.

Basic product parameters

Comprehensively understand product specifications

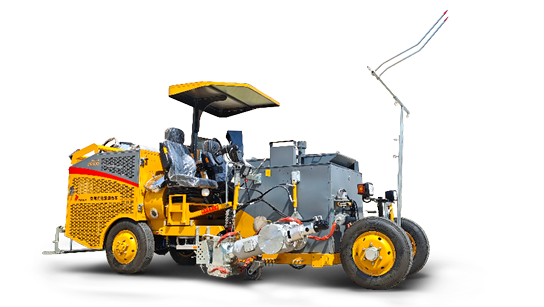

TT-CO3-R/ZG500 Ride-on Thermoplastic Road Marking Machine

The TT-CO3-R/ZG500 thermoplastic ride-on road marking machine is a high-performance road marking device that combines versatile functionality, efficient non-stop operation, exceptional line quality, intelligent controls, robust construction, and a professional dual glass bead system.

Model

TT-CO3-RZG500

Drive method

Hydrostatic drive axle

Maximum climbing ability

11°

Bucket capacity

500L

Heating method

Thermal oil

Line thickness

1.5-2.5mm

Weight

4000kg

Engine

54KW

Walking speed

Forward 0–10 km/h Reverse 0–6 km/h

Marking method

Scraping-type, vibrating-type, spiral-extrusion-type

Glass bead container capacity

2X90L

Line width

100, 150, 200, 300mm (adjustable, interchangeable buckets)

External dimensions

5560X2360X2850mm

Model

TT-CO3-RZG500

Engine

54KW

Drive method

Hydrostatic drive axle

Walking speed

Forward 0–10 km/h Reverse 0–6 km/h

Maximum climbing ability

11°

Marking method

Scraping-type, vibrating-type, spiral-extrusion-type

Bucket capacity

500L

Glass bead container capacity

2X90L

Heating method

Thermal oil

Line width

100, 150, 200, 300mm (adjustable, interchangeable buckets)

Line thickness

1.5-2.5mm

External dimensions

5560X2360X2850mm

Weight

4000kg
