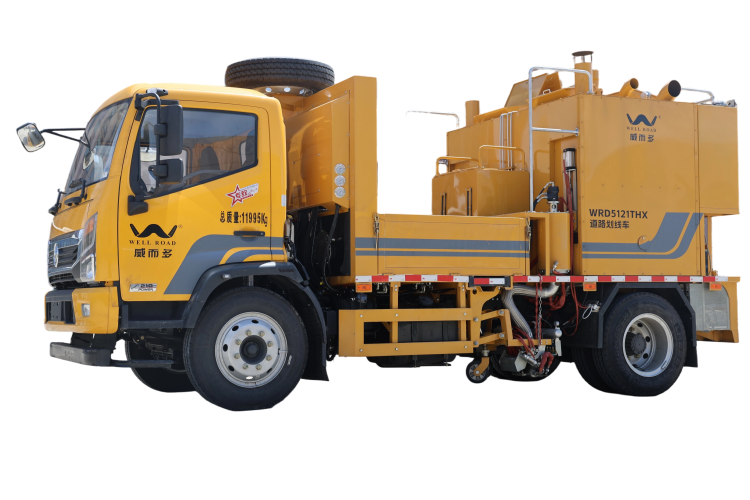

WRD5121THX Thermoplastic Marking Truck

WRD5121THX

The WRD5121THX Intelligent Thermoplastic Marking Machine integrates transportation, material melting and marking functions. It supports synchronous double-side construction with intelligently adjustable line widths, and various line types can be switched without shutdown. Fitted with an intelligent digital control system, it enables remote operation and automatic construction data statistics. The imported hydraulic system ensures stable operation. This equipment cuts material and labor costs and features flexible relocation. It is also connectable to the cloud management platform. With superior marking quality, it is highly efficient for all types of large-scale road marking projects.

Advantages and Features

Advantages and features

One machine with multiple lines , line type can be changed instantly without stopping the machine

Equipped with a patented new multi-functional extrusion device, it can draw thermoplastic flat lines, checkerboard lines , stair lines , and other square lines. The standard drawing end can intelligently adjust the line width in real time between 50-200mm without stopping the machine to change the working device. The special heat-resistant toothed closed structure ensures uniform line thickness, straight edges, neat heads, and an outstanding appearance.

Applying markings on both sides simultaneously can double construction efficiency

Featuring a unique dual-operating system and integrated material conveying and filtering device, it supports simultaneous application from both sides, significantly shortening the construction period. A large-capacity melting kettle paired with a high-power burner ensures ultra-high thermal efficiency and uninterrupted material circulation. Combined with a compartmented glass bead box and dual spray guns, it is sufficient to meet the continuous construction needs of long-distance, large-scale projects .

Digital Brain: Precise Control with Complete Traceability

Marking line type digital input and real-time remote control operation easily achieve constant width and uniform speed operation. The built-in automatic data collection and analysis system automatically calculates and prints paint usage, construction area, line length, and thickness warnings, and locates the construction position in real time , providing accurate data for project settlement.

Top-of-the-line configuration, stable operation with reduced losses

The fully imported hydraulic drive system allows for free and consistent low-speed control, completely resolving the issue of uneven marking thickness . A new type of closed-loop, large-capacity hydraulic oil tank ensures the system maintains optimal cooling even under continuous high-intensity operation , significantly extending equipment lifespan.

Reduced staffing

Highly integrated and fully intelligent control eliminates the need for ground support personnel, minimizes on-site preparation , allows for quick completion and quick relocation.

Reduced material loss

The compact screw pump conveying system shortens the conveying distance and reduces heat loss ; the pneumatically controlled solenoid valve accurately controls the material, saving material, time and effort; the sealed insulated pipes are not easy to clog and are easy to clean.

One-time forming of road markings

constant temperature feeding + uniform speed walking + uniform material output + adjustable glass bead width ensures that the marked road markings have a longer lifespan, higher reflectivity , and more uniform thickness.

Easy equipment management

Seamlessly connects to the "TATU Intelligence" mini-program, allowing for complete cloud-based control of vehicle location, work hour calculation, and construction trajectory.

Basic product parameters

Focused for 30 Years. Only for Quality Markings

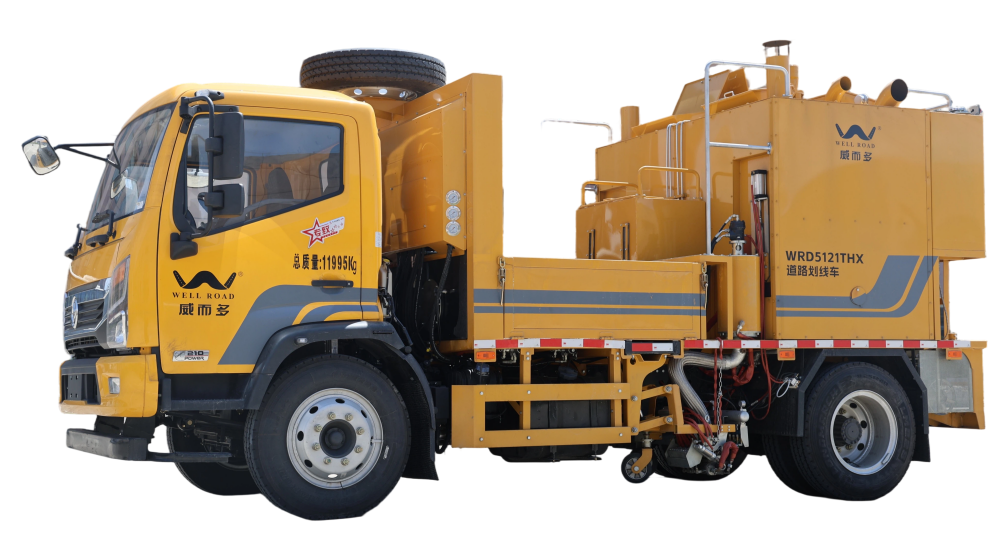

WRD5121THX Thermoplastic Marking Truck

The WRD5121THX Thermoplastic Marking Machine supports synchronous dual-side operation and flexible line type switching. Featuring intelligent control and cloud management, it delivers high efficiency while saving materials and labor, and ensures excellent marking quality.

Product Model

WRD5121THX

Wheelbase

3800mm

Chassis

Dongfeng EQ1125SJ8CDC

Engine Model

D3.0NS6B210H National VI

Marking method

Thermoplastic flat lines (solid lines, dashed lines, chessboard lines, staircase lines, piano key lines, etc.), thermoplastic checkerboard dotted lines

Marking width

50-200mm（automatic switching)

Marking thickness

The thermoplastic flat line is adjustable from 1.5-2.5mm, and the thermoplastic checkerboard dotted line is adjustable from 3-6mm

Dimensions

6145×2350×3160mm

Total mass

11995 kg

Engine power

155kw

Capacity of the hot melt kettle

1600L

Glass bead box capacity

300L

Marking speed

0-6km/h

Marking device

Configurable with a multi-functional extrusion chess piece line (dot) and stair line (square) marking device.

Product Model

WRD5121THX

Dimensions

6145×2350×3160mm

Wheelbase

3800mm

Total mass

11995 kg

Chassis

Dongfeng EQ1125SJ8CDC

Engine power

155kw

Engine Model

D3.0NS6B210H National VI

Capacity of the hot melt kettle

1600L

Marking method

Thermoplastic flat lines (solid lines, dashed lines, chessboard lines, staircase lines, piano key lines, etc.), thermoplastic checkerboard dotted lines

Glass bead box capacity

300L

Marking width

50-200mm（automatic switching)

Marking speed

0-6km/h

Marking thickness

The thermoplastic flat line is adjustable from 1.5-2.5mm, and the thermoplastic checkerboard dotted line is adjustable from 3-6mm

Marking device

Configurable with a multi-functional extrusion chess piece line (dot) and stair line (square) marking device.
