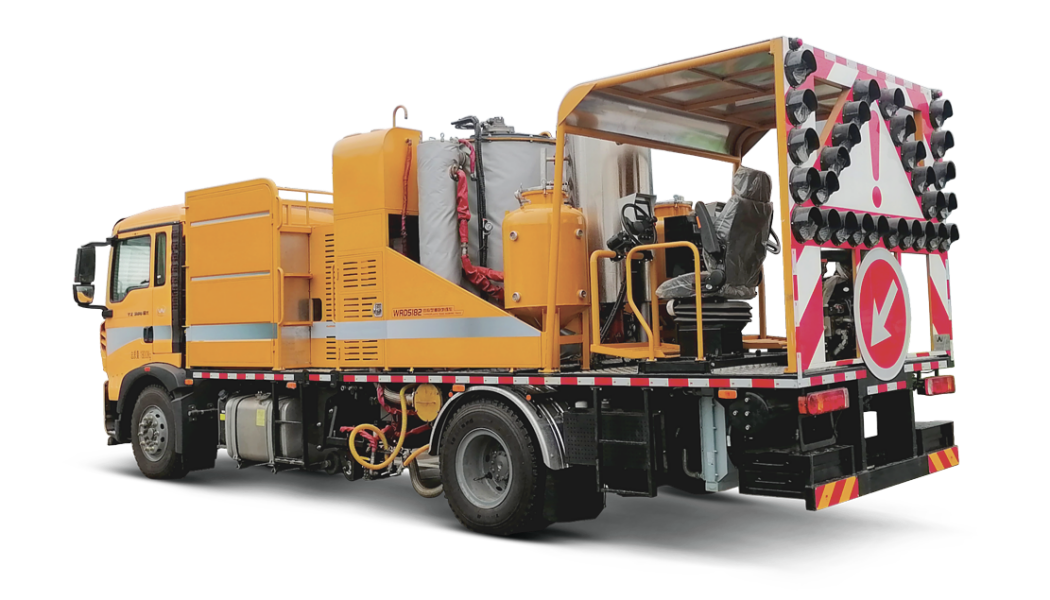

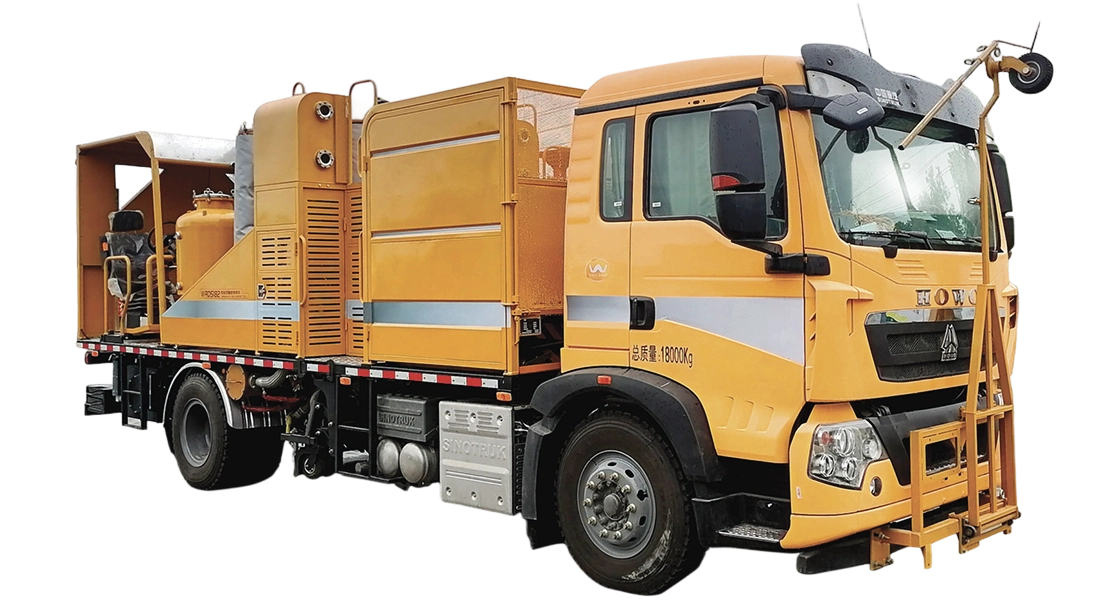

WRD5182THX Road Marking Vehicle

WRD5182THX

The WRD5182THX road marking vehicle is a multifunctional marking machine that integrates three construction methods: hot melt spraying, hot melt scraping, and hot melt extrusion. It supports users to flexibly select configurations according to their needs, achieving various marking constructions such as continuous lines, oscillating lines, and dotted lines, featuring high efficiency, high quality, and strong adaptability.

Advantages and Features

Advantages and features

Construction methods are flexible and selectable, with strong adaptability

Flexible selection of three marking systems—hot melt spraying, hot melt scraping, and hot melt extrusion—can be made according to requirements, meeting the diverse marking construction process needs, achieving multi-functionality in one machine, and adapting to different engineering conditions.

Hot melt spraying system, efficient and high-quality

Using a patented spraying system, it achieves thorough atomization of the paint, smooth edges of the markings, and strong adhesion, supporting stepless adjustment of marking width and thickness. When applying multiple lines, there is no need to remove old lines, effectively saving costs and improving construction efficiency.

The hot melt scraping and coating system is stable and reliable

The scraping and coating device is integrally molded with special heat-resistant materials, featuring high-temperature resistance, deformation resistance, strong thermal conductivity, and high insulation performance. It can meet the quality requirements of thermoplastic road markings according to national standards, with uniform thickness and straight edges of the markings.

Hot melt extrusion system has multiple functions

The extrusion hopper adopts a modular design and capillary-type heat-conducting oil heating, enabling one-key switching between straight lines and spot-painted lines, and flexible adjustment of line width. Construction operation is simple, and the quality of the lines is stable and controllable.

The chassis is powerful and construction is efficient

Based on the Sinotruk Howo chassis, equipped with a 254kW high-power engine, it has excellent driving stability and load capacity, capable of meeting continuous and efficient construction transfer and operation requirements.

Large-capacity operations, good construction continuity

Equipped with a 1000L large-capacity paint tank and 2×250L glass bead tanks, it supports long-distance, large-area continuous line marking construction, reducing the number of mid-process refills and improving overall construction efficiency.

Basic product parameters

Comprehensive understanding of product information

WRD5182THX Road Marking Vehicle

The WRD5182THX road marking vehicle is a multifunctional marking device that can integrate three construction methods: thermal spray, thermal squeegee, and thermal extrusion.

Product Model

WRD5182THX

Curb weight

16380kg

Total mass

18000kg

Chassis Model

Sinotruk Howo ZZ1187N501GF1

Paint can capacity

1000L

Line thickness

1.5-2.5mm

Line width

50-200mm (requires optional selection to replace hoppers of different specifications)

Marking device

Hot-melt inline hopper, vibrating hopper, dotted extrusion hopper

Dimensions

9240×2530×3520mm

Engine power

254kw

wheelbase

5000 mm

Engine model

MC07.35-60 National VI

Glass bead jar capacity

2×250L

Marking method

Hot melt flat line, oscillation, dotted

Construction speed

0-8km/h

Product Model

WRD5182THX

Dimensions

9240×2530×3520mm

Curb weight

16380kg

Engine power

254kw

Total mass

18000kg

wheelbase

5000 mm

Chassis Model

Sinotruk Howo ZZ1187N501GF1

Engine model

MC07.35-60 National VI

Paint can capacity

1000L

Glass bead jar capacity

2×250L

Line thickness

1.5-2.5mm

Marking method

Hot melt flat line, oscillation, dotted

Line width

50-200mm (requires optional selection to replace hoppers of different specifications)

Construction speed

0-8km/h

Marking device

Hot-melt inline hopper, vibrating hopper, dotted extrusion hopper
