WRD5185THX Hot Melt Road Marking Vehicle - Multi-functional structural marking Equipment

WRD5185THX Road Marking Vehicle

WRD5185THX

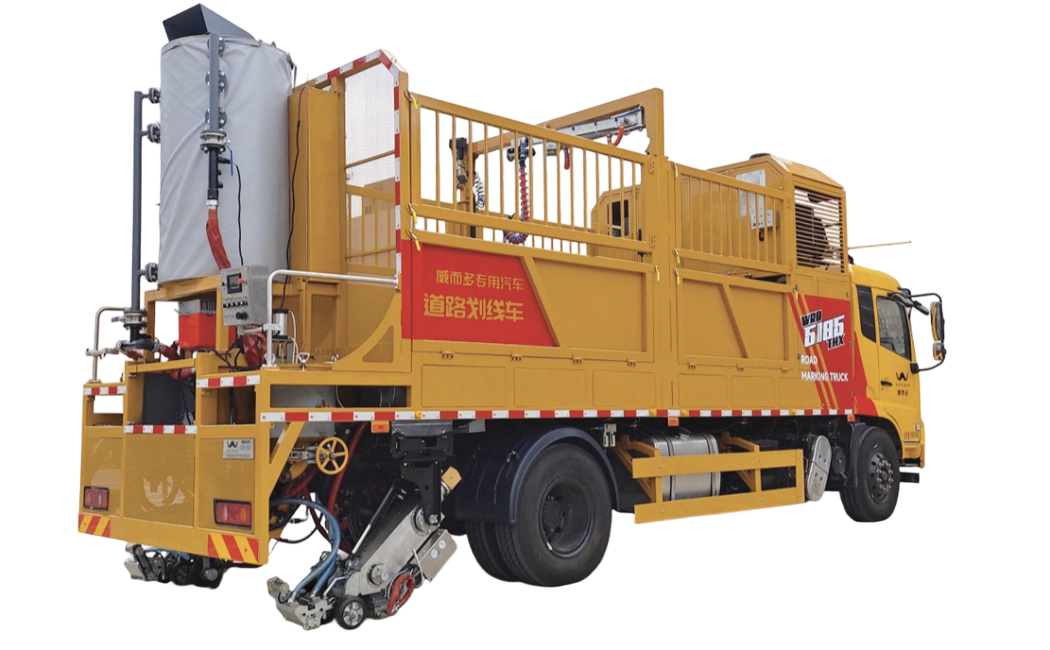

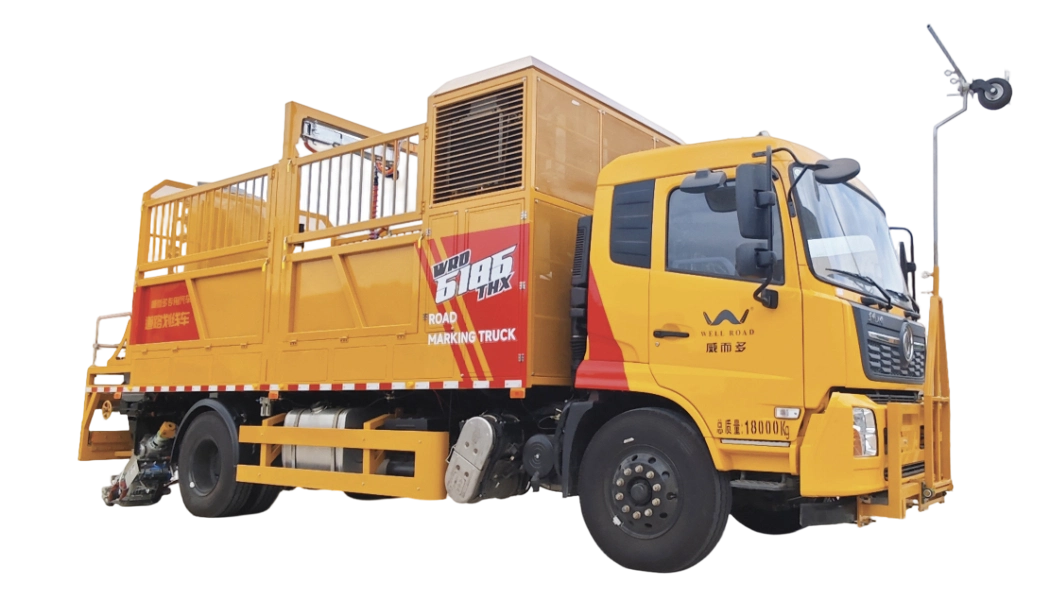

The WRD5185THX road marking vehicle is a high-performance specialized vehicle that can integrate various thermoplastic marking construction requirements. It is equipped with a multifunctional extrusion and spot painting staircase line marking device, allowing intelligent switching between thermoplastic dots, checkerboard lines, staircase lines, and straight lines without changing the device. It also features simultaneous marking on both sides, imported hydraulic precision speed control, intelligent data collection, and efficient cyclic feeding, making it suitable for large-scale, continuous, high-standard construction projects.

Advantages and Features

Advantages and features

One machine with multiple functions, intelligently switches between various markings

Equipped with a new multifunctional extrusion dot and staircase line marking device, it can mark various lines such as hot melt dot markings, checkerboard lines, staircase lines, and straight lines. The line width is adjustable from 50-200mm, and the line type can be intelligently switched in real time without replacing the device, meeting diverse construction needs.

High-efficiency bilateral synchronous marking, significantly improving work efficiency

Using a patented dual operating system and line marking device, it supports simultaneous marking on both sides. Combined with an extra-long high-efficiency horizontal double-screw melting pot, it enables high-speed continuous operation and significantly improves construction efficiency.

Imported hydraulic precision control ensures stable marking line quality

Equipped with a fully imported hydraulic transfer system, it allows free switching between high and low construction speeds and precise uniform speed control. Paired with a large-capacity closed hydraulic oil tank, it ensures continuous and stable operation of the hydraulic system, guaranteeing uniform line thickness and neat line shapes.

Intelligent Data Acquisition and Real-Time Monitoring

The intelligent line marking control system supports automatic collection, analysis, and printing of data such as line marking length and construction area, and can automatically monitor and alert construction quality and real-time positioning, achieving digital and traceable management of the construction process.

Continuous and efficient cyclic feeding to ensure construction continuity

Using a high-power, efficient heating system, an extra-long horizontal twin-screw melter, and a compact conveying system, it achieves bidirectional heating inside and outside the coating, rapid melting of materials, and short-distance conveying, avoiding heat loss and coating oxidation, and supports large-scale, long-distance, continuous construction.

High-strength structure ensures continuous high-load operation

Based on the Dongfeng Tianjin DFH1180EX8 chassis, with an engine power of 154 kW and a curb weight of 15 tons, it has good load-bearing capacity and driving stability, and can adapt to long-term, high-intensity construction conditions.

Basic product parameters

Comprehensive understanding of product information

WRD5185THX Road Marking Vehicle

The WRD5185THX road marking vehicle is a high-performance specialized vehicle that can integrate various thermoplastic line marking construction requirements.

Product Model

WRD5185THX

Curb weight

15000kg

Chassis Model

Dongfeng Tianjin DFH1180EX8

Wheelbase

5000mm

Marking device

New Multi-Functional Extrusion Spot Coating Stair Line Marking Device

Glass bead jar capacity

2×170L

Line width

50-200mm

Marking method

Hot-melt extruded chess pieces (dots) lines, chessboard lines, staircase lines, straight lines

Dimensions

9160×2550×3960mm

Total mass

18000kg

Engine power

154kw

Engine model

B6.2NS6B210 National VI

Paint can capacity

2×440L

Line thickness

1.8-2.0mm

Construction speed

0-8km/h

Product Model

WRD5185THX

Dimensions

9160×2550×3960mm

Curb weight

15000kg

Total mass

18000kg

Chassis Model

Dongfeng Tianjin DFH1180EX8

Engine power

154kw

Wheelbase

5000mm

Engine model

B6.2NS6B210 National VI

Marking device

New Multi-Functional Extrusion Spot Coating Stair Line Marking Device

Paint can capacity

2×440L

Glass bead jar capacity

2×170L

Line thickness

1.8-2.0mm

Line width

50-200mm

Construction speed

0-8km/h

Marking method

Hot-melt extruded chess pieces (dots) lines, chessboard lines, staircase lines, straight lines
