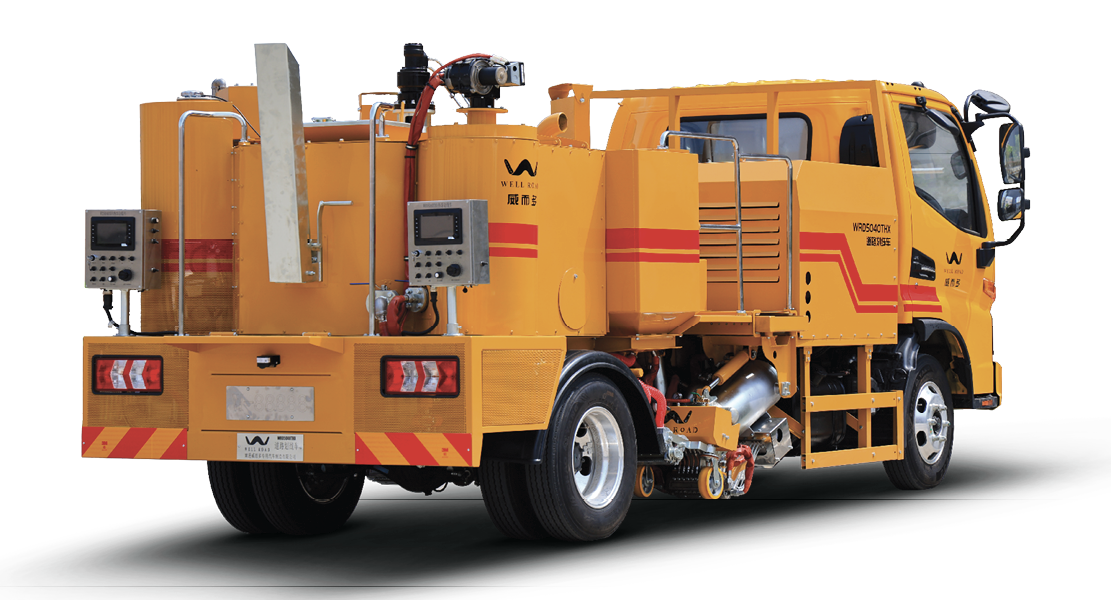

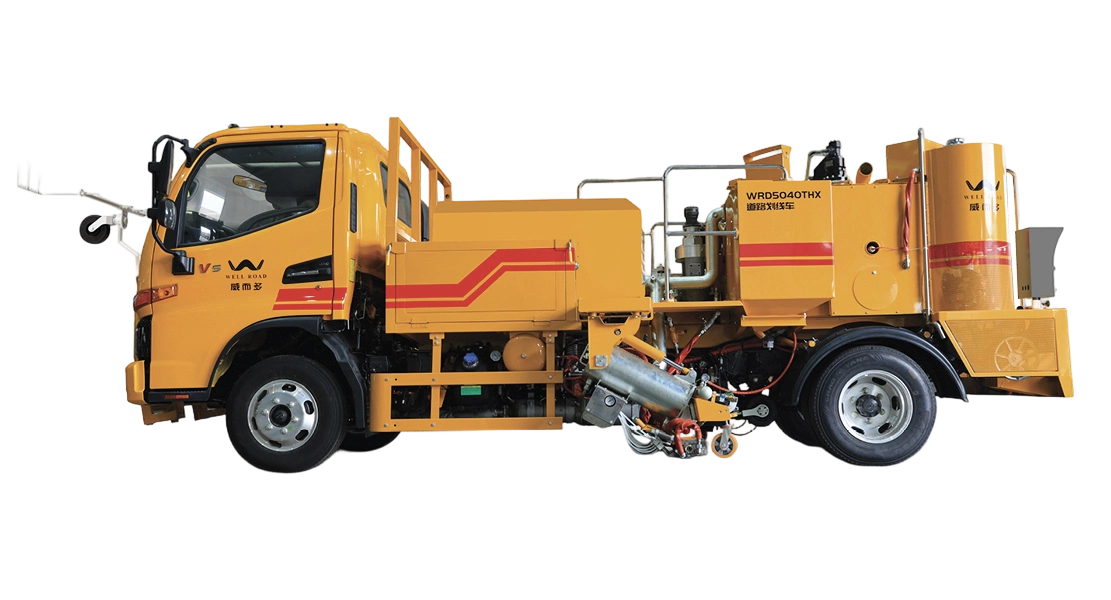

WRD5040THX Road Marking Vehicle

WRD5040THX

The WRD5040THX road marking vehicle is a lightweight intelligent marking vehicle that can be registered with a blue license plate and driven with a C-class license. It uses a new multifunctional structural marking device that can intelligently switch between various thermoplastic markings such as dot patterns, grids, and stairs without replacing the device. It features a 700L large-capacity thermoplastic tank, dual-side marking, efficient heating, and a stable material delivery system, combining high mobility with high construction quality.

Advantages and Features

Advantages and features

Flexible transitions

The vehicle has a total weight of 4.495 tons, can use a blue license plate, and can be driven by a driver with a C license. There is no need to transport the vehicle, it can be quickly relocated at any time, and it is suitable for various road construction needs in cities and suburbs.

Smart Switching

Equip a new type of multifunctional high-performance structural marking device, capable of marking thermoplastic chess piece dot lines, checkerboard lines, staircase lines, piano key lines, and conventional straight lines, with line widths of 50-200mm. The line type can be switched intelligently in real-time without replacing the device, significantly improving construction efficiency.

Lightweight design

Extensively using high-strength steel and aluminum alloy materials to achieve lightweight design, the overall vehicle length is comparable to that of an ordinary ride-on line marking machine, with a compact structure and flexible steering, suitable for operations in narrow or complex road conditions.

Bilateral intelligent lane marking

Supports simultaneous intelligent marking on both sides, with high and uniform marking quality. The construction speed can reach 0-6 km/h, combining energy-saving and environmentally friendly features with time and labor efficiency.

Large-capacity hot melt kettle, long-lasting operation

Equipped with a 700L large-capacity hot melt kettle, it can continuously apply markings for a longer time with a single batch of material, reducing the need for mid-process refills, and its operational continuity far exceeds that of an ordinary ride-on line marking vehicle.

Imported feeding and dual heating, stable quality

Using imported paint pumps and filters to ensure clean paint delivery and stable pressure; combined with high-efficiency thermal oil furnace and burner direct and indirect dual heating, it can quickly heat up and accurately control the temperature of pipes and equipment, reducing warm-up time and ensuring that the markings are of uniform thickness and firmly bonded.

Basic product parameters

Comprehensive understanding of product information

WRD5040THX Road Marking Vehicle

The WRD5040THX road marking vehicle is a lightweight intelligent marking vehicle that can be driven with a C license and can use a blue license plate.

Product Model

WRD5040THX

Wheelbase

3600mm

Chassis

Jianghuai Junling HFC1042P23K1B4ZS

Hot melt kettle capacity

700L

Construction speed

0-6km/h

Line thickness

Hot melt flat line adjustable from 1.5-2.5mm, hot melt chess piece dotted line adjustable from 3-6mm

Marking device

New multifunctional extrusion dot coating (round mark) stair line (square mark) marking device

Dimensions

5990X2000X2270mm

Total mass

4495kg

Engine power

103kw

Glass bead box capacity

2X180L

Line width

50-200mm (automatic switching)

Marking method

Hot melt lines (solid lines, dashed lines, checkerboard lines, staircase lines, piano key lines, etc.), hot melt pawn dotted lines

Product Model

WRD5040THX

Dimensions

5990X2000X2270mm

Wheelbase

3600mm

Total mass

4495kg

Chassis

Jianghuai Junling HFC1042P23K1B4ZS

Engine power

103kw

Hot melt kettle capacity

700L

Glass bead box capacity

2X180L

Construction speed

0-6km/h

Line width

50-200mm (automatic switching)

Line thickness

Hot melt flat line adjustable from 1.5-2.5mm, hot melt chess piece dotted line adjustable from 3-6mm

Marking method

Hot melt lines (solid lines, dashed lines, checkerboard lines, staircase lines, piano key lines, etc.), hot melt pawn dotted lines

Marking device

New multifunctional extrusion dot coating (round mark) stair line (square mark) marking device
