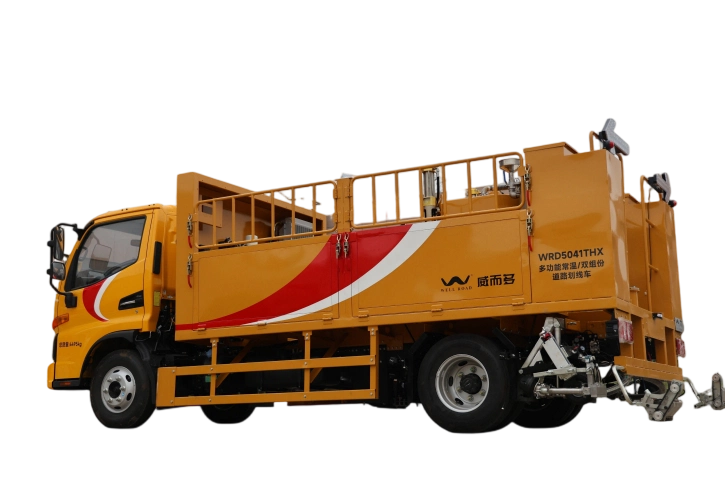

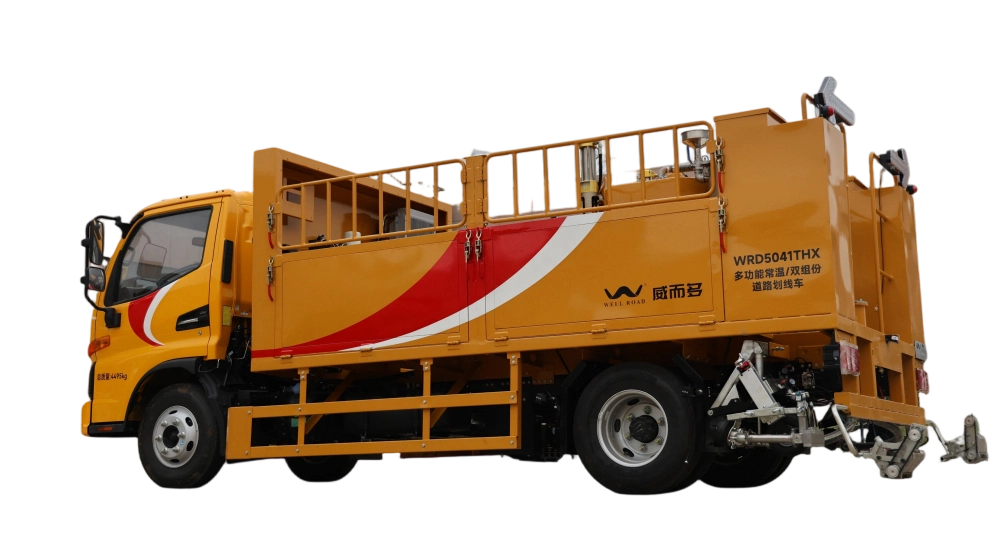

WRD5041THX Two-Component / Cold Paint Road Marking Truck

WRD5041THX

The WellRoad WRD5041THX two-component/room temperature marking truck integrates transportation, mixing, and marking, offering both spraying and extrusion modes. It can create flat lines, dotted lines, and star-shaped lines. Equipped with a large-capacity material tank and an electric bead-spreading system, it boasts high efficiency and material savings, making it suitable for large-scale projects. Utilizing an imported low-speed driving system with cruise control, it ensures uniform marking thickness. The entire vehicle features intelligent control and a modular design, with flexible dual-side control boxes allowing for the replacement of marking components as needed. Built on a dedicated chassis, it offers ample power, stable operation, requires fewer personnel, allows for rapid site relocation, and is a versatile machine with outstanding overall performance.

Advantages and Features

Advantages and features

Multifunctional

It integrates transportation, mixing, and marking functions into one unit . The cargo compartment eliminates the need for separate vehicles, and the large-capacity storage tank with mixer reduces the frequency of material addition. The double-sided marking not only improves construction efficiency but also prevents reverse driving .

Dual-mode line marking

Dual GreatRoad 20L plunger-type high-pressure airless paint pump and Changjiang quick-change nozzle (standard internal mixing) ensure uniform mixing, fine automation, and neat spray pattern ; dual closed-loop low-pressure extrusion structure can easily extrude chess piece ( dotted ) lines and also extrude star dot ( splash ) lines. During construction, the thickness and sparseness of the star dot lines can be precisely adjusted by adjusting the pressure.

High construction efficiency

Equipped with large-capacity, uninterrupted circulating paint tanks and glass bead tanks, it can meet the construction needs of long-distance, large-scale road marking projects ; quick entry and relocation, less on-site preparation work and fewer personnel required, and can adapt to multi-point construction within a unit of time; the electric glass bead spreading system provides uniform spraying, saves on bead usage, and has good retroreflective effect .

Precise speed control

Equipped with a JAC chassis and an imported hydraulic transfer low-speed driving system. Supports stepless speed adjustment and constant speed driving , ensuring uniform thickness and consistent spacing of lane markings from the vehicle speed perspective .

Fully intelligent control

The vehicle's intelligent control system has a high degree of integration , supporting not only digital input of line shape and its length and width , but also fully meeting the needs of real-time remote control operation .

Modular architecture

Control boxes are located on both sides of the vehicle to easily meet the usage needs of different marking sides . The storage tank, conveying system and marking end and other related components adopt a modular design, which can flexibly select and install a suitable marking system according to the specific construction line type , so as to give full play to the efficiency of equipment use, making it a machine that does the work of many.

Basic product parameters

Focused for 30 Years. Only for Quality Markings

WRD5041THX Two-Component / Cold Paint Road Marking Truck

The WellRoad WRD5041THX two-component road marking machine features comprehensive functions and intelligent high efficiency. It supports various road marking constructions, delivers multi-purpose performance and helps cut labor costs.

Overall dimensions (mm)

Length: 5950, width: 2430, height: 2390

Chassis model

HFC1042P23K1B4ZS

Engine type

YN25PLUS160B

Tire model

7.00R16 8PR

Glass bead tank Capacity（L）

2x200

Marking device

High-pressure spraying of flat lines, low-pressure squeezing of chess pieces (dots), star dots and flat lines

Marking thickness(mm)

High-pressure spraying 0.2-0.7, two-component extrusion 2-4

Wheelbase (mm)

3600

Total weight (kg)

4495

Engine power(KW)

114

Paint tank capacity(L)

700

Drive mode

Hydraulic drive, stepless speed change

Marking width(mm)

50-450(Different specifications of marking ends need to be optionally installed and replaced)

Marking speed(km/h)

0-6 (affected by driving proficiency)

Overall dimensions (mm)

Length: 5950, width: 2430, height: 2390

Wheelbase (mm)

3600

Chassis model

HFC1042P23K1B4ZS

Total weight (kg)

4495

Engine type

YN25PLUS160B

Engine power(KW)

114

Tire model

7.00R16 8PR

Paint tank capacity(L)

700

Glass bead tank Capacity（L）

2x200

Drive mode

Hydraulic drive, stepless speed change

Marking device

High-pressure spraying of flat lines, low-pressure squeezing of chess pieces (dots), star dots and flat lines

Marking width(mm)

50-450(Different specifications of marking ends need to be optionally installed and replaced)

Marking thickness(mm)

High-pressure spraying 0.2-0.7, two-component extrusion 2-4

Marking speed(km/h)

0-6 (affected by driving proficiency)
