WRD5184THX Hot melt Road Marking Vehicle - Multi-functional equipment for spraying, scraping and extrusion -WELL-ROAD

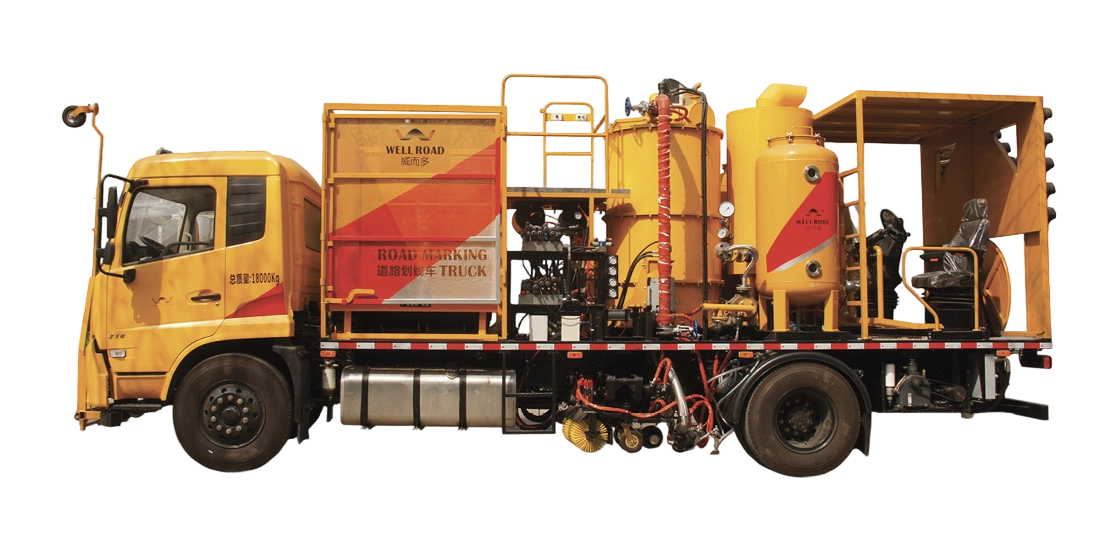

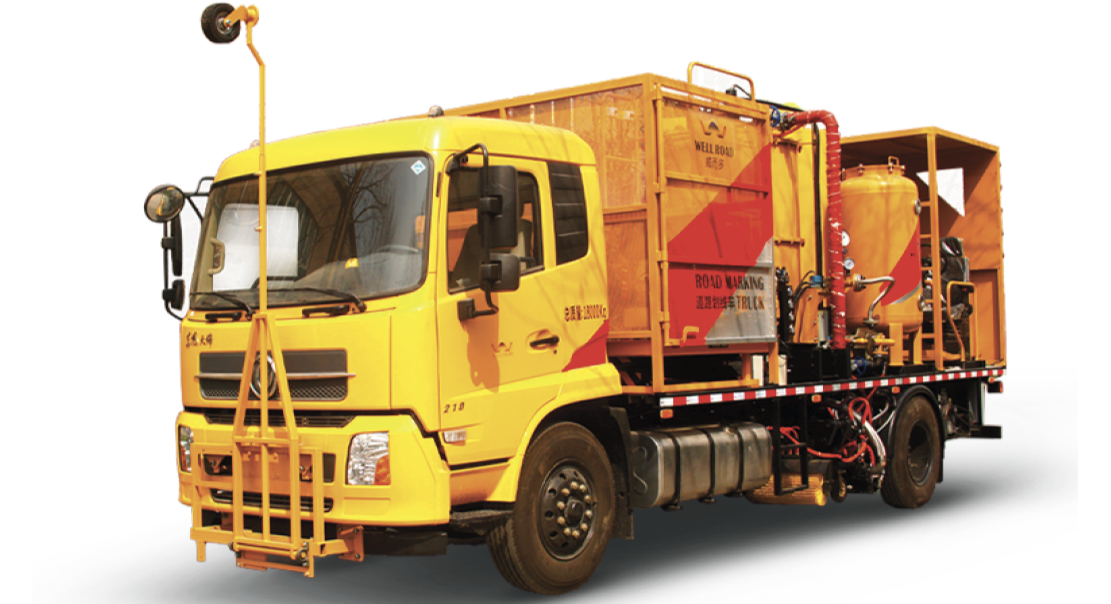

WRD5184THX Road Marking Vehicle

WRD5184THX

The WRD5184THX road marking vehicle is a multifunctional marking device that can flexibly be configured to integrate three construction methods: thermoplastic spraying, thermoplastic scraping, and thermoplastic extrusion. It supports diverse marking operations such as straight lines, oscillating lines, and dotted lines, featuring efficient, flexible, and highly adaptable construction characteristics.

Advantages and Features

Advantages and features

A variety of construction methods are available

Supports users in selecting and configuring on demand among three construction systems: hot melt spraying, hot melt scraping, and hot melt extrusion, which can flexibly meet different road marking project requirements, achieve multiple uses with a single machine, and significantly improve equipment adaptability and utilization.

The spraying system is efficient and high-quality, saving costs.

Using patented spraying technology, the paint is highly atomized, with smooth edges and strong adhesion of the markings. It supports stepless adjustment of the marking width and thickness, and the construction of multiple lines does not require removing old lines, saving construction costs and improving efficiency.

The scraping and coating system is stable and reliable, meeting national standards.

The scraping and coating device is integrally formed from special heat-resistant materials, featuring high-temperature resistance, deformation resistance, strong thermal conductivity, and excellent insulation properties, capable of stably meeting the quality requirements of national standard thermoplastic markings.

The extrusion system is easy to operate and ensures uniform quality.

The integrated extrusion hopper supports one-key switching and width adjustment for straight-line and spot-line marking. It uses a modular and capillary thermal oil heating design to ensure the hopper is heated evenly, so the marking lines have consistent thickness and smooth edges.

The chassis has stable performance and strong adaptability

Based on the Dongfeng Tianjin chassis, it offers two optional power configurations (149KW/127KW), with good driving stability and load capacity, suitable for various construction environments and site transfer needs.

Large-capacity continuous operation, improving work efficiency

Equipped with a 1000L large-capacity paint tank and 2×250L glass bead tanks, it supports long-duration, large-area continuous construction, reducing the frequency of refilling and effectively ensuring construction efficiency and continuity.

Basic product parameters

Comprehensive understanding of product information

WRD5184THX Road Marking Vehicle

The WRD5184THX road marking vehicle is a multifunctional marking equipment that can flexibly be equipped with three construction methods: hot melt spraying, hot melt squeegee coating, and hot melt extrusion.

Product Model

WRD5184THX

Wheelbase

5000, 4500mm

Chassis Model

Dongfeng Tianjin DFH1180BX1V

Engine model

ISD210 50，ISD，180 50

Marking device

Hot melt flat line, oscillation, dot-shaped extrusion hopper

Marking method

Hot melt flat line, oscillation, dotted

Line width

50-200 (requires optional replacement with hoppers of different specifications)

Dimensions

9270，9250×2550×3850mm

Curb weight

13990，13880kg

Total mass

18000kg

Engine power

149KW，127KW

Paint can capacity

1000L

Glass bead jar capacity

2X250L

Product Model

WRD5184THX

Dimensions

9270，9250×2550×3850mm

Wheelbase

5000, 4500mm

Curb weight

13990，13880kg

Chassis Model

Dongfeng Tianjin DFH1180BX1V

Total mass

18000kg

Engine model

ISD210 50，ISD，180 50

Engine power

149KW，127KW

Marking device

Hot melt flat line, oscillation, dot-shaped extrusion hopper

Paint can capacity

1000L

Marking method

Hot melt flat line, oscillation, dotted

Glass bead jar capacity

2X250L

Line width

50-200 (requires optional replacement with hoppers of different specifications)
