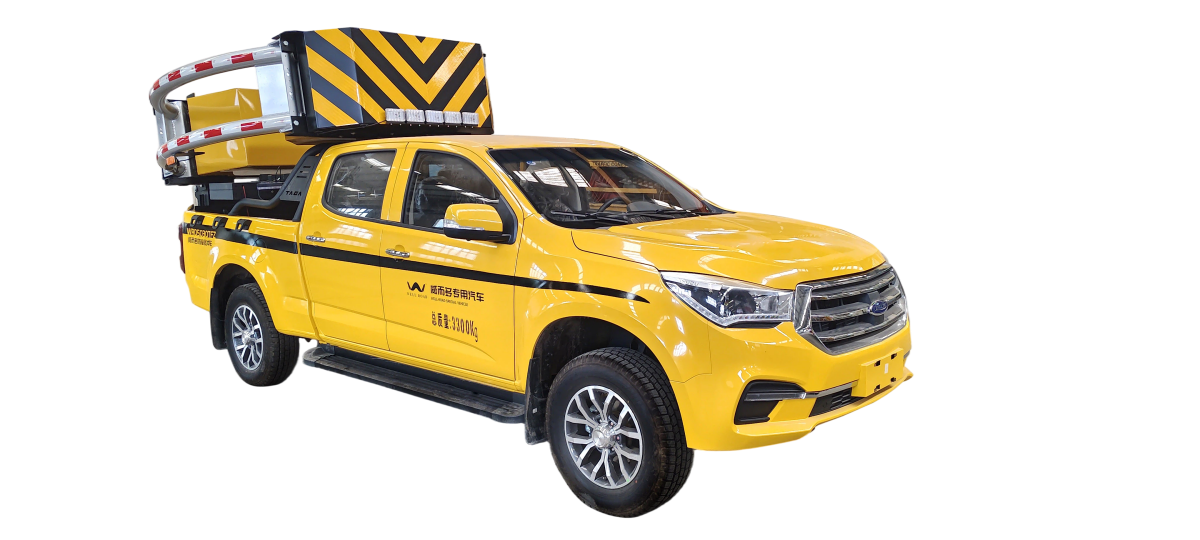

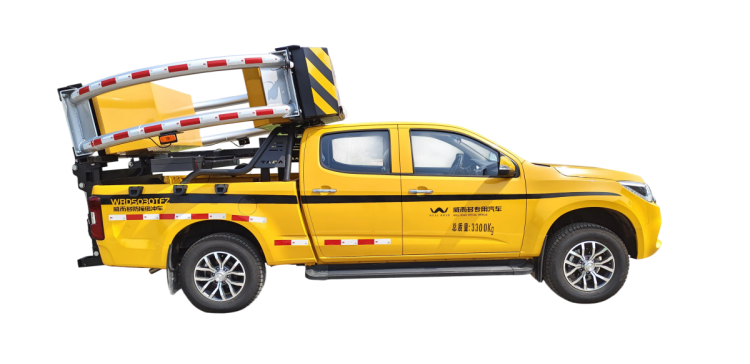

WRD5030TFZ Micro Anti-collision Buffer Vehicle - Lightweight Automatic Deployment Construction Protection Vehicle

WRD5030TFZ Anti-collision Buffer Vehicle (Mini)

WRD5030TFZ

The WRD5041TFZ micro anti-collision buffer vehicle is a lightweight construction protection vehicle equipped with a single-stage collision energy absorption device, an arm-type automatic loading mechanism and a high-brightness LED warning screen. It is suitable for the construction of ordinary grade roads and can effectively absorb collision impacts, actively guide traffic, and enhance the safety and efficiency of operations.

Advantages and Features

Advantages and features

High-efficiency collision energy-absorbing structure

The buffer device, which combines single-section four arc-shaped curved tubes with malleable energy-absorbing materials, absorbs the impact energy step by step through the deformation of the tube body and the plastic deformation of the material during a collision, minimizing the harm to vehicles and personnel to the greatest extent.

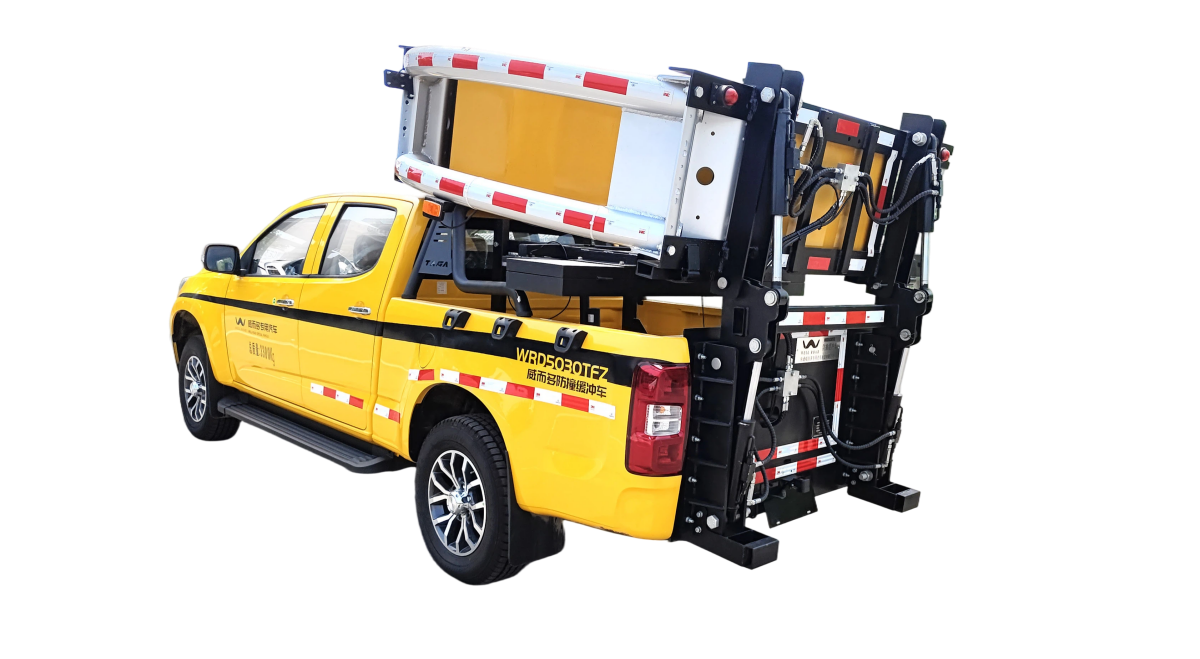

Boom-type automatic loading mechanism

The two-stage arm extension, lifting and folding are achieved through a 90-degree rotation mechanism. Combined with the four-point support of the vehicle body outrigger, the on-site deployment and transfer of the buffer pad can be quickly completed. The operation is convenient and the parking stability is strong.

High-brightness LED active traffic guidance

Equipped with high-brightness LED warning screens and high-reflectivity traffic signs, it can dynamically display guiding information, actively remind passing vehicles to avoid safely, and reduce the impact of construction on traffic flow.

Lightweight and highly mobile design

Based on a micro truck chassis, with a curb weight of only 1,670 kg and a top speed of up to 140km/h, it is suitable for rapid deployment and flexible relocation in medium and low-speed scenarios such as county and rural roads and urban roads.

High-grade anti-corrosion and anti-rust treatment

The entire vehicle is treated with high-grade electrophoretic painting or composite electroplating processes, featuring excellent corrosion resistance. It can adapt to various complex outdoor environments and extend the service life of the equipment.

It has a wide range of applicable scenarios

Designed specifically for the daily maintenance and management of ordinary-grade roads, it takes into account both protective capabilities and cost-effectiveness, and is suitable for safety protection operations in medium and low-speed driving environments such as local roads and urban streets.

Basic product parameters

Gain a comprehensive understanding of product information

WRD5030TFZ Anti-collision Buffer Vehicle (Mini)

The WRD5041TFZ mini anti-collision buffer vehicle is a lightweight construction protection vehicle equipped with a single-stage collision energy absorption device, an arm-type automatic loading mechanism and a high-brightness LED warning screen

product model

WRD5041TFZ

Anti-collision buffer mechanism

2030x790x1780mm

Quality of the buffer pad

84kg

Buffer level

2000kg-70km/h

Buffer structure length

2030mm

overall dimensions of a car

5980x2030x2730 (length x width x height mm)

Truck chassis parameters

Huanghai brand DD1032HE multi-purpose truck chassis

curb weight

4105kg

total mass

3335kg

curb weight

1670kg

maximum speed

140km/h

type of fuel

gasoline

power

160kw

boundary dimension

5375x1840x1940 (length x width x height mm)

product model

WRD5041TFZ

curb weight

4105kg

Anti-collision buffer mechanism

2030x790x1780mm

total mass

3335kg

Quality of the buffer pad

84kg

curb weight

1670kg

Buffer level

2000kg-70km/h

maximum speed

140km/h

Buffer structure length

2030mm

type of fuel

gasoline

overall dimensions of a car

5980x2030x2730 (length x width x height mm)

power

160kw

Truck chassis parameters

Huanghai brand DD1032HE multi-purpose truck chassis

boundary dimension

5375x1840x1940 (length x width x height mm)
