WRD5041TFZ Light Anti-collision Buffer Vehicle - 80K Class urban Construction Protection Vehicle

WRD5041TFZ Anti-collision Buffer Vehicle (Light Type)

WRD5041TFZ

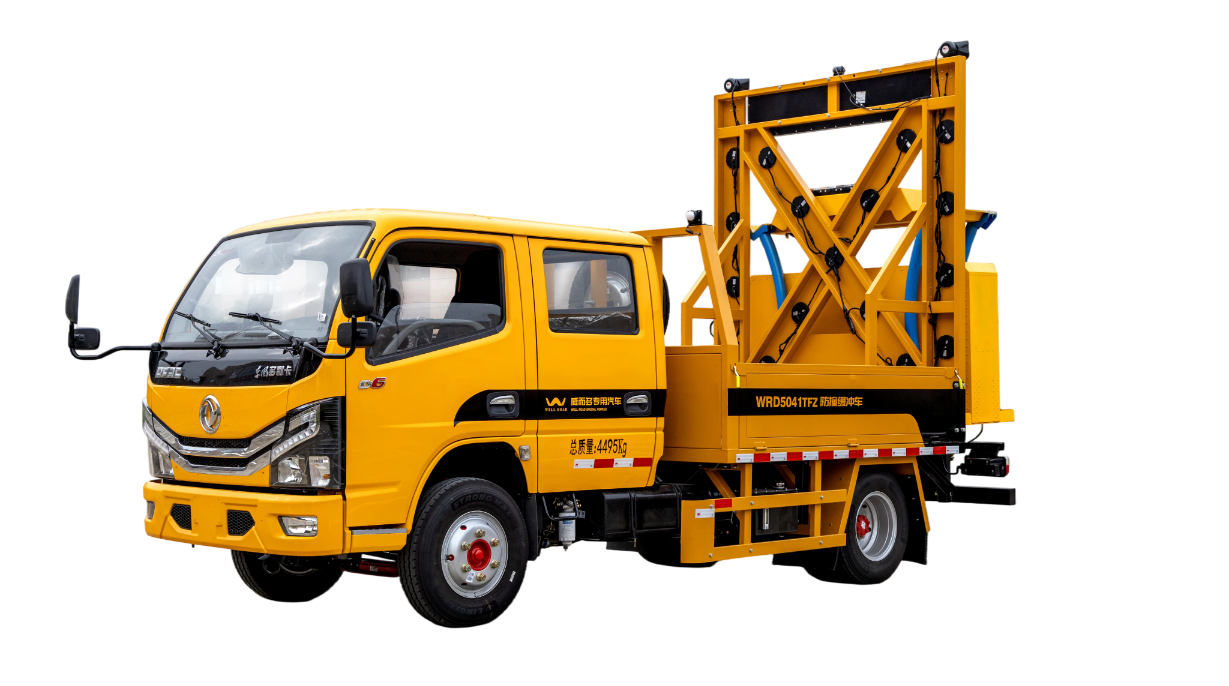

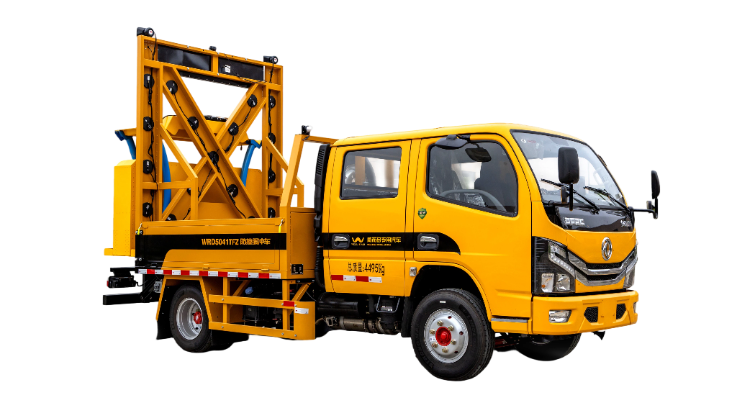

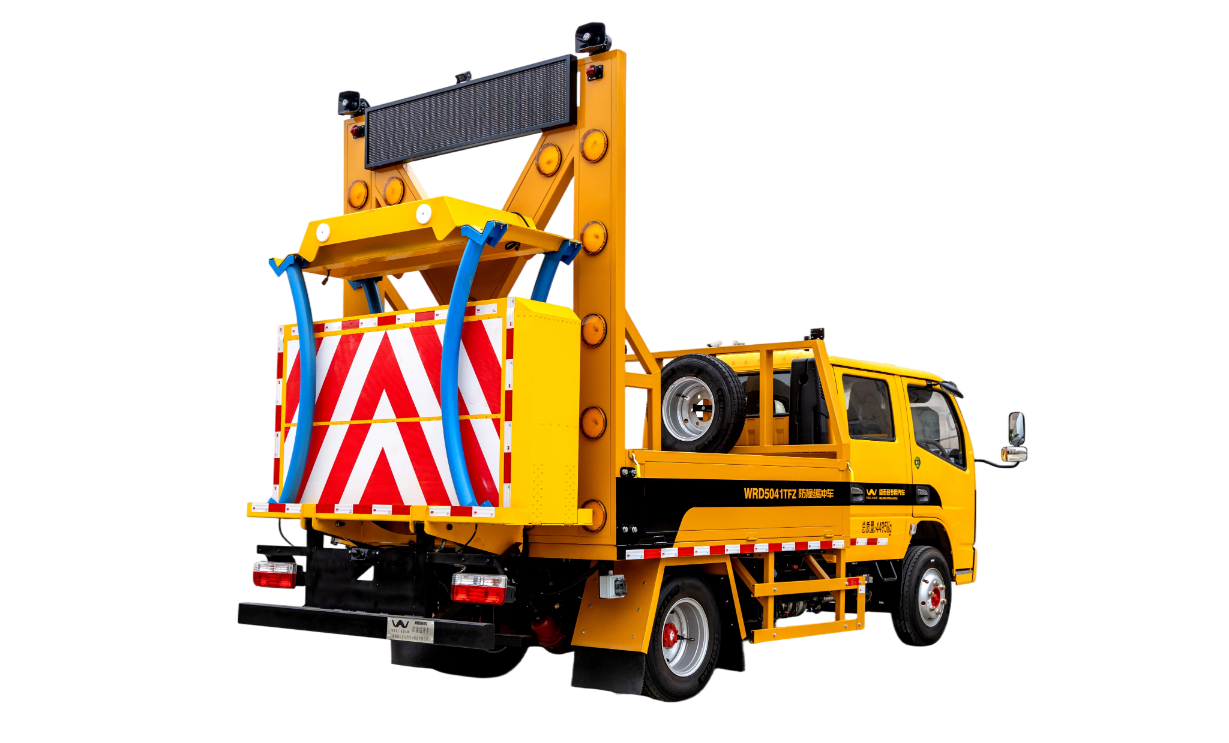

The WRD5041TFZ light-duty anti-collision buffer vehicle is a professional construction protection vehicle based on the Dongfeng chassis and equipped with 80K-level integrated aluminum alloy buffer blocks. It features lightweight, high mobility, and strong warning effect, and is suitable for safety protection during construction operations on urban and suburban roads.

Advantages and Features

Advantages and features

High mobility and lightweight design

The curb weight of the entire vehicle is only 4,105 kg, with a wheelbase of 3,308mm. Based on the Dongfeng light truck chassis, the top speed can reach 110km/h. It has excellent off-road capability and transfer flexibility, making it suitable for construction on narrow urban roads.

80K-level high-efficiency anti-collision protection

It adopts an integrated aluminum alloy buffer block box body, filled with honeycomb aluminum inside, and is equipped with a double inwardly curved round pipe frame. The protection level reaches 80K, which can effectively absorb collision impact and protect the safety of construction personnel and equipment.

High-brightness warning system

It is equipped with a large-sized arrow guide light of 2200×2600mm, with an installation height of 3660mm. It has a wide visible range and a prominent warning effect, effectively reminding vehicles coming from behind to give way.

Strong economic practicality

It adopts a mature light truck chassis and standardized protective structure, with relatively low purchase and maintenance costs. At the same time, it can meet the protective needs of most urban and suburban road construction, offering high cost performance.

Quick disassembly and deployment

The buffer block has a compact structure (1665×2030×660mm), weighs only 160kg, supports quick installation and disassembly, and is convenient for flexible scheduling and use between different construction points.

High passability and adaptability

The vehicle is compact in size (5945×2200×3660mm), with a small turning radius. It can pass through sections with height and width restrictions, adapting to the complex urban road conditions and the rapid deployment requirements of temporary construction sites.

Basic product parameters

Gain a comprehensive understanding of product information

WRD5041TFZ Anti-collision Buffer Vehicle (Light Type)

The WRD5041TFZ light-duty anti-collision buffer vehicle is a professional construction protection vehicle based on Dongfeng chassis and equipped with 80K-level integrated aluminum alloy buffer blocks for protection

product model

WRD5041TFZ

boundary dimension

5945X2200X3660mm

Chassis type

EQ1045DJ3CDF

Buffer level

80K

Buffer structure length

1665X2030X660(length X width X height mm)

Effective protective area

1.34㎡

The size of the arrow guide light area

2200X2600(width X height mm)

engine type

YCY24140-60

tire model

7.00R16 8PR

engine power

103kw

track rear

1498mm

maximum speed

110Km/h

curb weight

4105kg

total mass

4495kg

Chassis manufacturer

Dongfeng Automobile Company

Weight of buffer block

160Kg

Effective interception length

1600mm

Structural features of buffer blocks

One-piece aluminum alloy buffer block box body, filled with honeycomb aluminum inside, double inwardly curved round pipe frame

The arrow guide light rises

3660(mm off the ground）

The number of leaf springs

6/6+5 (front/back)

Wheel number

2+4

front gauge

1503mm

number of axles

product model

WRD5041TFZ

curb weight

4105kg

boundary dimension

5945X2200X3660mm

total mass

4495kg

Chassis type

EQ1045DJ3CDF

Chassis manufacturer

Dongfeng Automobile Company

Buffer level

80K

Weight of buffer block

160Kg

Buffer structure length

1665X2030X660(length X width X height mm)

Effective interception length

1600mm

Effective protective area

1.34㎡

Structural features of buffer blocks

One-piece aluminum alloy buffer block box body, filled with honeycomb aluminum inside, double inwardly curved round pipe frame

The size of the arrow guide light area

2200X2600(width X height mm)

The arrow guide light rises

3660(mm off the ground）

engine type

YCY24140-60

The number of leaf springs

6/6+5 (front/back)

tire model

7.00R16 8PR

Wheel number

2+4

engine power

103kw

front gauge

1503mm

track rear

1498mm

number of axles

maximum speed

110Km/h
