WRD5140TFZ Heavy-duty anti-collision buffer vehicle - 100K Class anti-collision buffer block

WRD5140TFZ Anti-collision Buffer Vehicle (Heavy-duty)

WRD5140TFZ

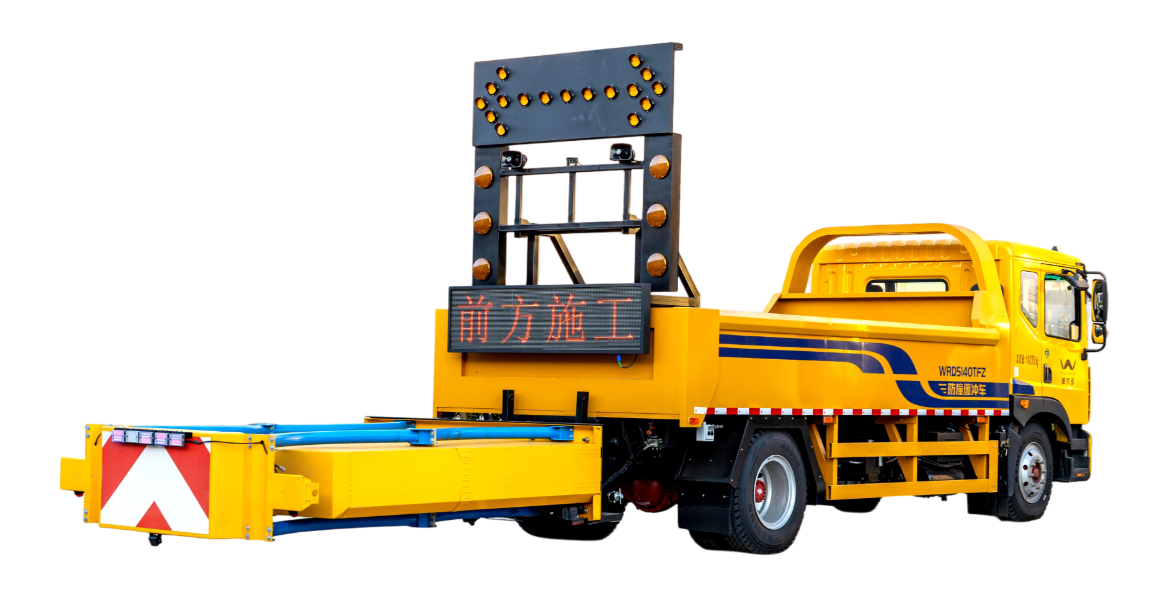

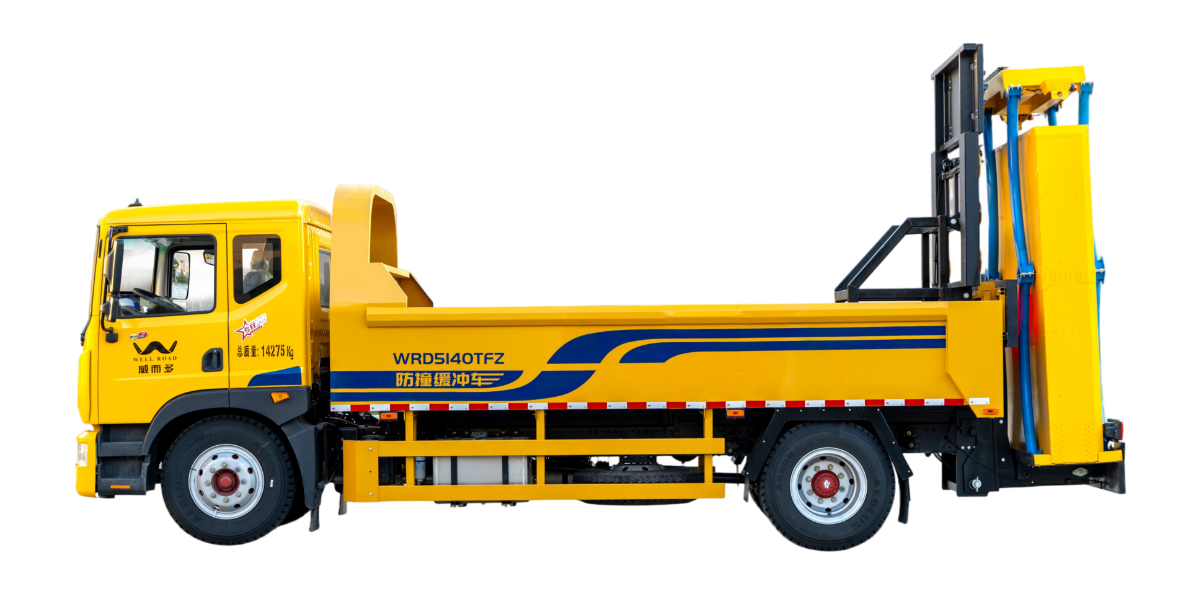

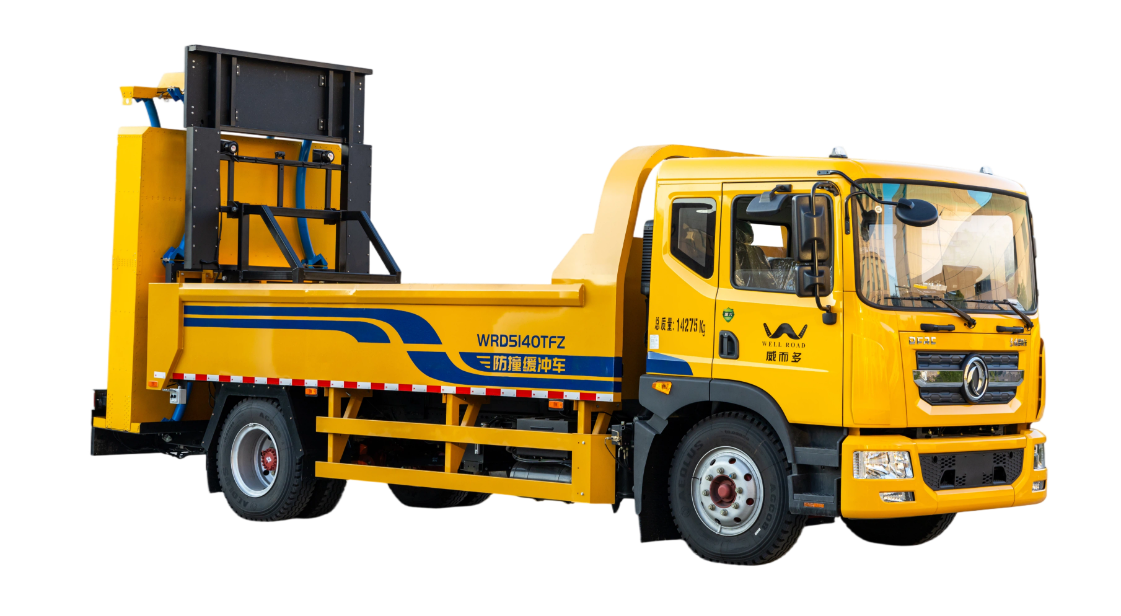

The WRD5140TFZ heavy-duty anti-collision buffer vehicle is a professional construction safety vehicle equipped with a 100K-level protection inward-bending buffer block and an integrated high-brightness warning system. It can effectively absorb collision energy and provide high-level safety protection for construction operations on urban roads, expressways, and other areas.

Advantages and Features

Advantages and features

High-level anti-collision protection

It adopts an integrated modular inwardly curved aluminum elbow buffer block, filled with aviation-grade honeycomb aluminum inside, with a protection level of 100K. It can effectively absorb collision energy and significantly reduce the risk of damage to construction personnel, equipment and the vehicle involved in the accident.

High-intensity warning and guidance system

It is equipped with 2000×690mm arrow guide lights, 2000×530mm LED guide screens and 6 yellow flashing lights, which can warn vehicles coming from behind in multiple directions and with high brightness, enhancing the all-weather safety visibility of the construction area.

The chassis is powerful, stable and reliable

Based on the Dongfeng EQ1165LJ9CDE chassis, equipped with a 147kW Yuchai engine, with a wheelbase of 4700mm and a top speed of 105km/h, it features excellent driving stability and load capacity, and is suitable for various road conditions and construction requirements.

Lightweight and high-strength design

The buffer block is made of aluminum alloy and features a honeycomb aluminum filling structure, weighing only 320kg. It ensures the protective strength while reducing the load on the equipment, facilitating quick disassembly, assembly and maintenance.

Spacious and practical working space

The interior dimensions of the carriage reach 4750×2300mm, providing ample space for equipment storage and operation. It supports the carrying of various construction tools and materials, enhancing the convenience of construction.

Standardized interface with strong adaptability

The overall vehicle design complies with the road construction protection standards and can be quickly matched with various construction vehicles and equipment for use, adapting to the complex working conditions of urban roads, expressways, airport Bridges and culverts, etc.

Basic product parameters

Gain a comprehensive understanding of product information

WRD5140TFZ Anti-collision Buffer Vehicle (Heavy-duty)

The WRD5140TFZ heavy-duty anti-collision buffer vehicle is a professional construction protection vehicle equipped with 100K-level protective inwardly curved buffer blocks and an integrated high-brightness warning system

product model

WRD5140TFZ (Inward Bend Type)

boundary dimension

8280×2550×3970mm

Chassis type

EQ1165LJ9CDE

manufacturer

Dongfeng Automobile Company

maximum speed

105Km/h

number of axles

The number of leaf springs

8/10+7 (front/back)

tire model

10.00R20 18PR

Buffer level

100K

Buffer structure length

3150×2300×700mm

The size of the arrow guide light area

2000×690mm

The height of the arrow guide light from the ground

3970mm

Structural features of buffer blocks

Integrated modular design, inward-curved aluminum elbow pipe, filled with aviation-grade honeycomb aluminum inside

Internal dimensions of the carriage

4750×2300mm

curb weight

14080kg

total mass

14275kg

engine type

Yuchai YCS04200-68

engine power

147KW

Wheel number

Front 2 Back 4

front gauge

1862mm

track rear

1806mm

wheel base

4700mm

Weight of buffer block

320Kg

Effective interception length

2700mm

Effective protective area

1.6㎡

The size of the LED guide screen

2000×530mm

The height of the LED guide screen from the ground

2050mm

The color and quantity of strobe lights

There are 6 yellow ones on both sides

product model

WRD5140TFZ (Inward Bend Type)

curb weight

14080kg

boundary dimension

8280×2550×3970mm

total mass

14275kg

Chassis type

EQ1165LJ9CDE

engine type

Yuchai YCS04200-68

manufacturer

Dongfeng Automobile Company

engine power

147KW

maximum speed

105Km/h

Wheel number

Front 2 Back 4

number of axles

front gauge

1862mm

The number of leaf springs

8/10+7 (front/back)

track rear

1806mm

tire model

10.00R20 18PR

wheel base

4700mm

Buffer level

100K

Weight of buffer block

320Kg

Buffer structure length

3150×2300×700mm

Effective interception length

2700mm

The size of the arrow guide light area

2000×690mm

Effective protective area

1.6㎡

The height of the arrow guide light from the ground

3970mm

The size of the LED guide screen

2000×530mm

Structural features of buffer blocks

Integrated modular design, inward-curved aluminum elbow pipe, filled with aviation-grade honeycomb aluminum inside

The height of the LED guide screen from the ground

2050mm

Internal dimensions of the carriage

4750×2300mm

The color and quantity of strobe lights

There are 6 yellow ones on both sides
