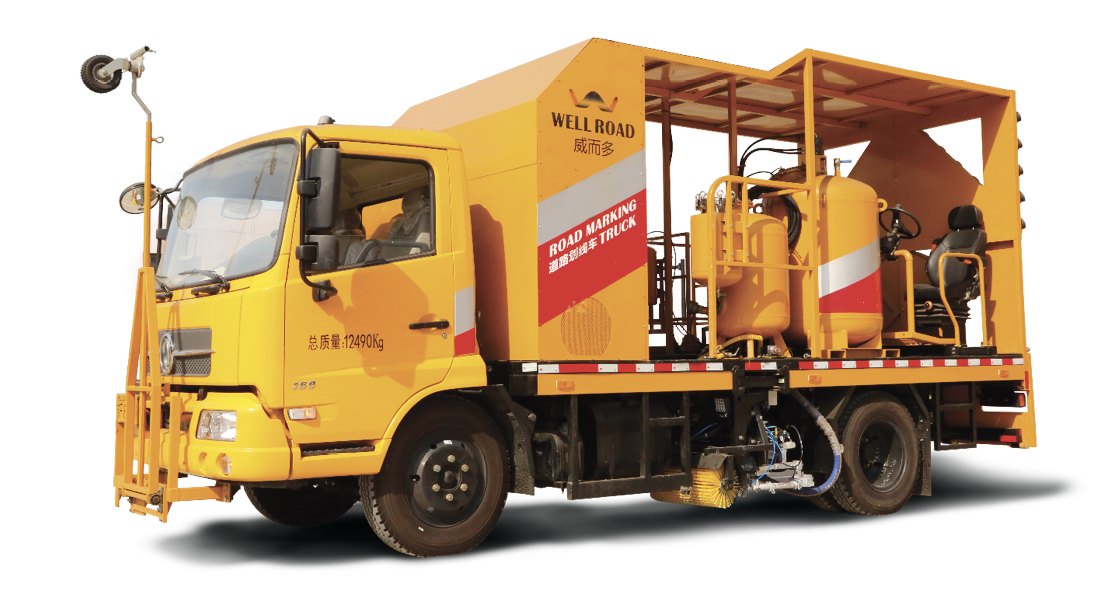

WRD5120THX Two-Component (Ambient Temperature/Water-Based) Road Marking Vehicle

WRD5120THX

The WRD5120THX road marking vehicle is an intelligent line-marking device that integrates multiple construction methods, including two-component spraying, dot extrusion, and spin coating. It is equipped with a precise paint and curing agent mixing control system, a continuous recirculation feeding system, and an imported hydraulic transfer system, which can flexibly meet various line-marking construction requirements and achieve efficient, high-quality, and intelligent road marking operations.

Advantages and Features

Advantages and features

Modular construction system, flexibly adapting to needs

Supports various marking methods such as two-component spraying, spot extrusion, and flicking, allowing users to select combinations according to their needs. Each module features a convenient detachable design, enabling quick and flexible switching of construction systems to meet diverse engineering requirements.

Imported hydraulic precise speed control, stable marking quality

Using a fully imported hydraulic distribution system, it achieves free switching between high and low construction speeds and stable constant-speed control, ensuring that road markings are uniform and straight, while reducing the operator's workload and improving construction smoothness.

Intelligent Data Collection and Quality Monitoring

The intelligent line marking control system supports automatic collection, analysis, and printing of construction parameters. It can automatically evaluate and alert on paint consumption, construction length, area, thickness, and real-time positioning, achieving digital and traceable management of the construction process.

Precise Control of Paint and Hardener Ratio

Using microcomputer precision control of the coating and curing agent delivery, the ratio is accurate and stable. The built-in quick cleaning system facilitates equipment maintenance, ensuring uniform mixing during construction and reliable line marking quality.

Continuous loop feeding, efficient and uninterrupted construction

Equipped with sealed large-capacity paint tanks and glass bead tanks, it supports long-duration and long-distance continuous construction, prevents paint from oxidizing and glass beads from getting damp, and automatically warns when materials are running low during construction, ensuring uninterrupted operation.

Diversified Glass Bead Spreading System

Using a pressure-type double glass bead jar with a pneumatic proportioning device, it achieves automatic control of different glass bead spreading amounts and continuous feeding, adapting to various road marking reflectivity requirements and improving nighttime driving safety.

Basic product parameters

Comprehensive understanding of product information

WRD5120THX Two-Component (Ambient Temperature/Water-Based) Road Marking Vehicle

The WRD5120THX road marking vehicle is an intelligent marking device that integrates multiple construction methods, including two-component spraying, dot extrusion, and flicking.

Model

WRD5120THX

Curb weight

9000kg

Chassis Model

DFH1120B1

Engine power

118kw

Marking device

Spray coating flat line device, star point extrusion hopper, chess piece extrusion hopper

Construction speed

0-8km/h

Dimensions

7630×2480×3530mm

Wheelbase

3800mm

Total mass

12490kg

Engine model

EQH160-53

Paint can capacity

1×600L

Glass bead jar capacity

1×250L

Model

WRD5120THX

Dimensions

7630×2480×3530mm

Curb weight

9000kg

Wheelbase

3800mm

Chassis Model

DFH1120B1

Total mass

12490kg

Engine power

118kw

Engine model

EQH160-53

Marking device

Spray coating flat line device, star point extrusion hopper, chess piece extrusion hopper

Paint can capacity

1×600L

Construction speed

0-8km/h

Glass bead jar capacity

1×250L
