WELL-ROAD

WRD5041TSG Silent Melting Truck

WRD5041TSG

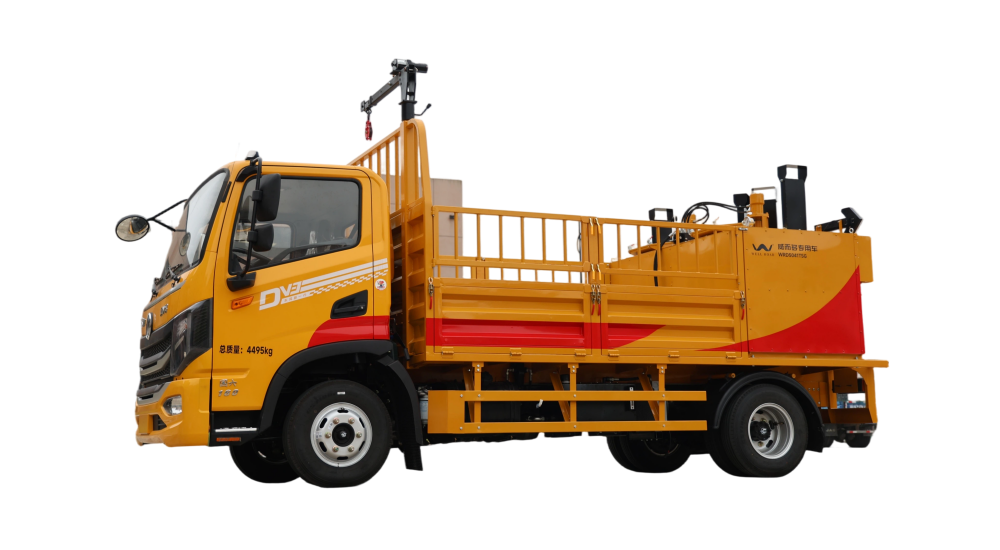

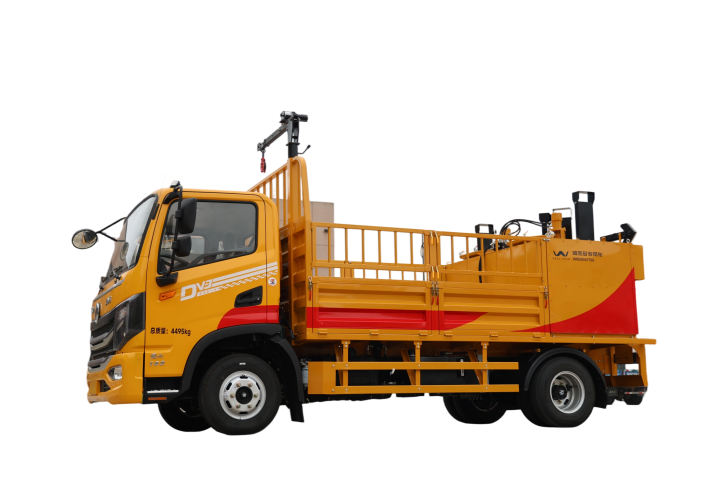

The WellRoad WRD5041TSG Silent Melter specializes in quiet and eco-friendly melting technology. Equipped with a Dongfeng dedicated chassis and a high-power Yuchai engine, it delivers robust and stable power. Designed without an auxiliary engine, the machine features low noise, low fuel consumption and a lightweight body. Fitted with dual large-capacity hot melt kettles and high-power burners, it ensures fast melting speed and high thermal efficiency. Adopting a chassis-mounted direct hydraulic drive stirring system, it runs smoothly and is easy to operate. Boasting excellent load capacity, it balances high-efficiency construction with environmental protection and noise reduction, making it an ideal device for road hot melt marking operations.

Advantages and Features

Advantages and features

Robust chassis , reliable power

The vehicle uses the Dongfeng EQ1040GL6DJ special vehicle chassis and is equipped with a Yuchai YCF25160-66A high-performance engine (rated power 116kw), providing power guarantee for long-term, high-load construction .

Quiet operation, low power consumption , and high-efficiency melting

The quiet design, which requires no auxiliary engine , achieves multiple benefits such as lightweight, large space, and low fuel consumption; the direct-fired thermoplastic kettle with dual high-power burners has high thermal efficiency , fast melting, and sufficient material supply .

Hydraulic direct drive, stable mixing

Powered directly by the chassis, it requires no external, cumbersome equipment and can continuously and steadily stir the coating inside the vessel upon startup . The overall structure is simple and easy to operate .

Large carrying capacity , low energy consumption and high efficiency

The auxiliary engine-free power architecture reduces weight while increasing vehicle carrying capacity; eliminating auxiliary engine fuel consumption, coupled with the high thermal efficiency of the high-efficiency burner, fully meets the stringent environmental and low-noise requirements of modern construction, making it the preferred equipment for road marking operations .

Easy Operation & Quick Mastery

Featuring a chassis-integrated direct hydraulic drive design, it eliminates cumbersome external equipment. The stirring function starts with just one click. With a streamlined structure and low failure rate, it is easy to handle even for new operators and greatly reduces maintenance difficulty.

Large Material Capacity & Long Endurance

Equipped with two 400L large-capacity hot melt kettles, it ensures sufficient and continuous material supply. Frequent refilling is minimized, enabling long-distance non-stop melting work and effectively boosting overall construction efficiency.

Basic product parameters

Focused for 30 Years. Only for Quality Markings

WRD5041TSG Silent Melting Truck

The WellRoad WRD5041TSG Silent Melter features powerful performance, low noise and energy efficiency with high melting efficiency, making it a top choice for road hot-melt construction.

Product Model

WRD5041TSG

Curb weight (kg)

4300

Chassis Model

EQ1040GL6DJ

Engine Model

Yuchai YCF25160-66A

Maximum speed (km/h)

Number of leaf springs (front/rear)

8/9+7

Number of tires

2 in front, 4 in back

Rear track width (mm)

1550

Number of passengers allowed in the driver's cab (persons)

External dimensions (mm)

5995X2250X2650

Total mass (kg)

4495

Manufacturer

Dongfeng Huashen Automobile Co., Ltd.

Engine power (KW)

116

Number of axes

Tire Model

7.00R16LT 8PR

Front track width (mm)

1525

Wheelbase (mm)

3600

Hot melt kettle volume (L)

2X400

Product Model

WRD5041TSG

External dimensions (mm)

5995X2250X2650

Curb weight (kg)

4300

Total mass (kg)

4495

Chassis Model

EQ1040GL6DJ

Manufacturer

Dongfeng Huashen Automobile Co., Ltd.

Engine Model

Yuchai YCF25160-66A

Engine power (KW)

116

Maximum speed (km/h)

Number of axes

Number of leaf springs (front/rear)

8/9+7

Tire Model

7.00R16LT 8PR

Number of tires

2 in front, 4 in back

Front track width (mm)

1525

Rear track width (mm)

1550

Wheelbase (mm)

3600

Number of passengers allowed in the driver's cab (persons)

Hot melt kettle volume (L)

2X400
