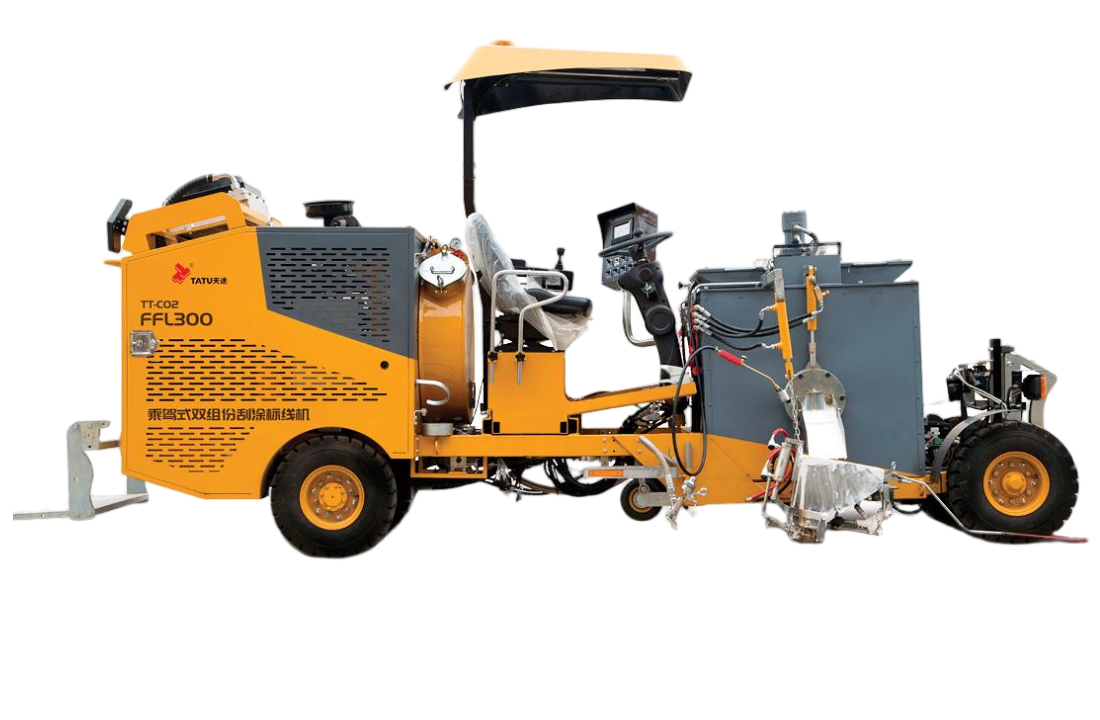

TT-C02-FL300 Passenger-mounted two-component marking Machine - Intelligent one-click Hydraulic drive

TT-C02-FL300 type passenger-driven two-component marking machine

TT-C02-FL300 Type Passenger Riding Two-component Marking Machine

It features convenient operation, flexible running and safety. The imported integrated control valve and hydraulic system are stable and reliable. The electrical control system adopts the integrated control system independently developed by our company, which is reliable in performance, aesthetically pleasing, compact in size, clearly and prominently marked, easy to operate, and enables one-click switching of line types. Adjustable steering system, convenient for right and left operation, quick action, light weight, small size, easy to install. The control of the glass bead spraying system adopts an advanced pneumatic spraying system. Compared with the rolling broadcasting system, this system has the advantages of uniform spraying and firm adsorption.

Advantages and Features

Advantages and features

The operation is convenient and flexible, with outstanding safety performance

The overall design of the equipment is in line with the construction requirements. The operation process is simple and easy to understand, and the operation process is flexible and smooth, which can quickly adapt to different construction scenarios. At the same time, it takes into account safety features, comprehensively ensuring the operational safety and equipment operation safety during the construction process, and reducing construction risks.

The hydraulic system is stable and the control is reliable and durable

It adopts imported integrated control valves and is equipped with high-quality hydraulic components to create a stable and reliable hydraulic system. During operation, there are no obvious faults, with strong pressure-bearing capacity and rapid response. It can be adapted to high-intensity construction for a long time, reducing the frequency of equipment maintenance and improving construction efficiency.

Intelligent control system, shifting towards high-quality spray broadcasting

The electrical control system adopts an independently developed integrated design, featuring stable and reliable performance, an attractive appearance, compact size, clear and eye-catching identification, convenient operation and the ability to switch between linear lines with one click. Adjustable steering system, supporting left and right operation, quick action, light and easy to install. The glass bead spray seeding adopts an advanced pneumatic spray seeding system. Compared with the rolling broadcasting, the spraying is more uniform and the adhesion is more firm, ensuring the reflective effect of the marking line and the construction quality.

Basic product parameters

Gain a comprehensive understanding of the product parameters

TT-CO2-FFL300 hot melt ride-on road marking machine

Dynamic force

33kw

Paint can capacity

300L

The way glass beads are scattered

Air pressure jet dispersion

maximum gradeability

11°

Determination of surface coating thickness

1.5~2.5mm

drive mode

Hydrostatic drive axle

work stress

4~15Mpa

Capacity of the glass bead jar

120L

traveling speed

Advance 0- 10Km/h, retreat 0-6km/h

Application method

Scraping method

Apply it wide

100, 120, 150 (Adjustable and interchangeable)

boundary dimension

5014X1885X2537mm

Dynamic force

33kw

work stress

4~15Mpa

Paint can capacity

300L

Capacity of the glass bead jar

120L

The way glass beads are scattered

Air pressure jet dispersion

traveling speed

Advance 0- 10Km/h, retreat 0-6km/h

maximum gradeability

11°

Application method

Scraping method

Determination of surface coating thickness

1.5~2.5mm

Apply it wide

100, 120, 150 (Adjustable and interchangeable)

drive mode

Hydrostatic drive axle

boundary dimension

5014X1885X2537mm
