TT-CO1-RZG200 Ride-on hot melt Marking Machine - Remote control operation for marking oscillating lines

TT-CO1-RZG200 Portable hot melt marking machine

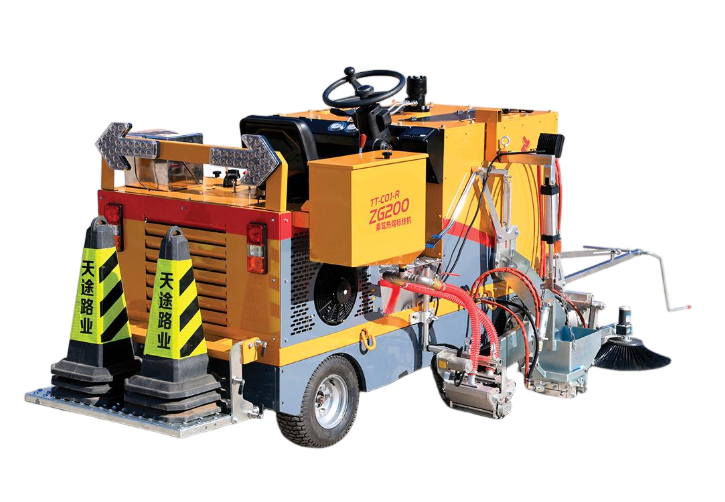

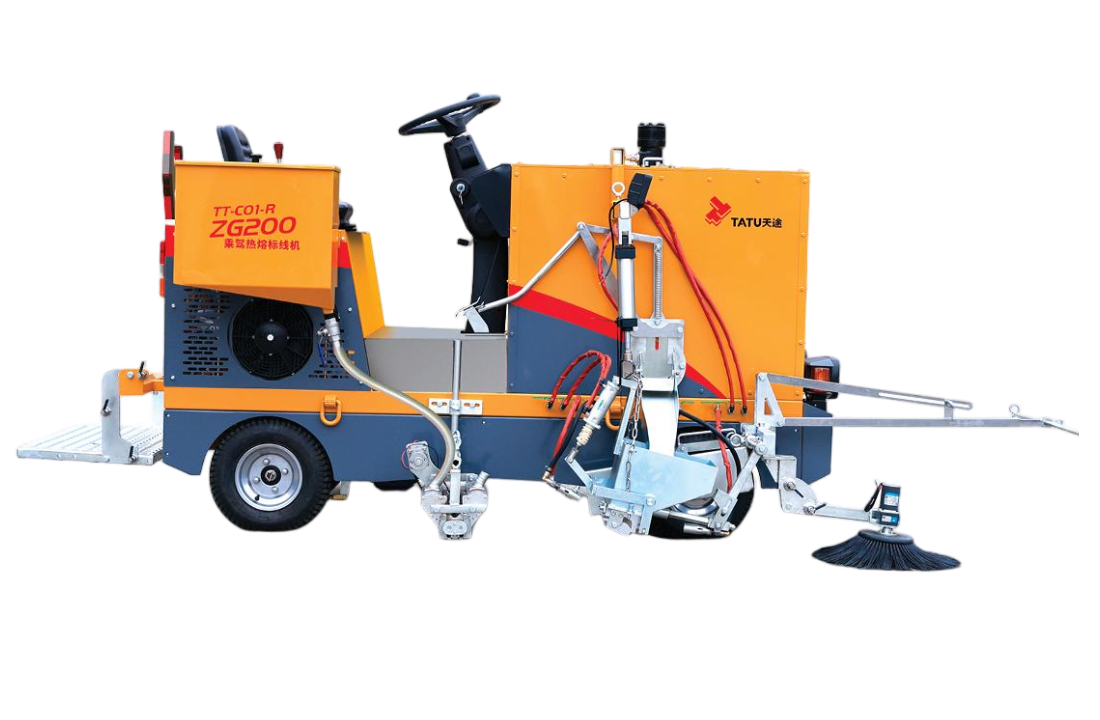

TT-CO1-RZG200 Ride-on Hot-melt Marking Machine

本设备采用乘驾式及遥控式两种控制方式，可随意选择使用方式，使施工更便捷。本设备采用柴油发动机，同时采用柴油加热方式，二者燃料的统一使设备使用更具便捷性。本设备采用先进的液压无级变速系统能精确地控制速度。本设备可以普通热熔标线施工，又可以凸起振荡标线施工，实现一机多用。微电脑自动控制采用最新的智能程序控制器和人性化控制面板。与涂料刮敷系统同步进行的玻璃珠撒播器确保玻璃珠播洒更均匀、更节省。双层保温料桶，熔料保温时间更长，燃料消耗更少，熔料效率更高。采用特种材料制造而成的涂敷斗，耐高温、耐腐蚀、不易变形。电动转向，更轻便，控制更精准，带自动回正功能，实现定向功能，确保划直线时，更流畅。配置箭头灯及照明灯使夜间施工更安全、更方便。

Advantages and Features

Advantages and features

Dual-mode control makes construction more convenient

The equipment supports two control methods: ride-on and remote control. It can be switched freely according to the construction scene without additional adjustment, effectively enhancing construction flexibility, reducing operational difficulty, and making the construction process more efficient and convenient.

Unified fuel supply makes usage more worry-free

It is driven by a diesel engine and equipped with a diesel heating method. The fuel is uniform and does not need to be prepared separately, simplifying the operation process of the equipment, reducing the trouble of fuel replacement, and enhancing the convenience and practicality of equipment use.

Hydraulic stepless speed change, with precise and controllable speed

Equipped with an advanced hydraulic stepless speed change system, the operating speed of the equipment can be precisely adjusted according to the construction requirements, avoiding the impact of speed fluctuations on the quality of marking lines and ensuring smooth and standardized construction lines.

One machine with multiple uses, suitable for various construction needs

The equipment can flexibly carry out both ordinary hot melt marking and raised oscillation marking construction without the need to replace additional equipment or core components. It is suitable for different road marking construction requirements and can reduce construction costs.

Microcomputer automatic control makes the operation more user-friendly

Adopting the latest intelligent program controller and user-friendly control panel, it realizes microcomputer automatic control. The operation is simple and easy to understand, reducing manual operation errors and improving construction efficiency and marking accuracy.

Synchronous glass bead scattering is energy-saving and uniform

The glass bead spreader operates in synchronization with the paint application system to ensure even scattering of glass beads, avoid waste, enhance the reflective effect of the marking lines, guarantee the safety of night passage, and balance energy conservation and construction quality.

Basic product parameters

Gain a comprehensive understanding of the product parameters

TT-C01-RZG200 Portable hot melt marking machine

This equipment adopts two control methods: ride-on and remote control. You can freely choose the usage mode to make the construction more convenient.

The stirring method of the material bucket

hydraulic pressure

emptying door

Manual/Pneumatic (optional configuration)

Cleaning The Hood

electric aeromodelling

Marking method

Scraping and applying type (flat line and oscillation line)

Hopper opening and closing

pneumatic

air compressor

0.036 cubic meters per minute

traveling speed

0-20km/h

climbing

Harbin now 20 degrees

boundary dimension

2450×1300×1568mm

Capacity of glass bead box

30L

vehicles control

The entire vehicle is equipped with a wireless remote control system, enabling remote operation

turnaround mode

electronic steering

The lifting method of the guide pole

Manual/electric (optional configuration)

heating method

fuel oil heater

dispenser

Electric spreader

engine power

9.6Kw

tickWidth

50-400mm (Optional configuration）

Linear speed

0.8-1.5Km/h

Total Weight

836kg

Bowl Capacity

200L

Lifting method

Special lifting mechanism

The stirring method of the material bucket

hydraulic pressure

turnaround mode

electronic steering

emptying door

Manual/Pneumatic (optional configuration)

The lifting method of the guide pole

Manual/electric (optional configuration)

Cleaning The Hood

electric aeromodelling

heating method

fuel oil heater

Marking method

Scraping and applying type (flat line and oscillation line)

dispenser

Electric spreader

Hopper opening and closing

pneumatic

engine power

9.6Kw

air compressor

0.036 cubic meters per minute

tickWidth

50-400mm (Optional configuration）

traveling speed

0-20km/h

Linear speed

0.8-1.5Km/h

climbing

Harbin now 20 degrees

Total Weight

836kg

boundary dimension

2450×1300×1568mm

Bowl Capacity

200L

Capacity of glass bead box

30L

Lifting method

Special lifting mechanism

vehicles control

The entire vehicle is equipped with a wireless remote control system, enabling remote operation
