WELL-ROAD

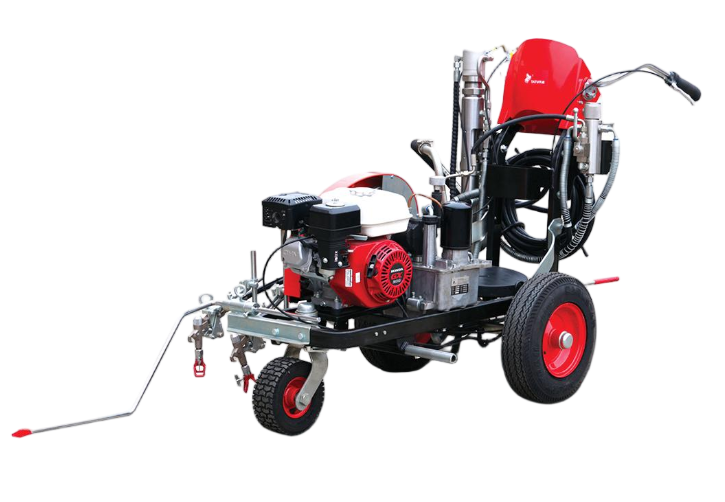

TT-SCP90 Push-type Road Marking Machine for Normal Temperature

This equipment features an ultra-durable alloy plunger-type coating pump, utilising a 9L/min imported ultra-wear-resistant plunger pump with adjustable pressure ranging from 0–20Mpa to accommodate varying line thickness and width requirements. The variable-displacement pump is paired with an automatic reciprocating hydraulic cylinder, ensuring stable and sustained power delivery. An efficient cooling system comprises a large-capacity die-cast aluminium oil tank integrated with a fan and radiator, guaranteeing continuous and stable operation of the hydraulic system while extending its service life. The electrical system features an independently integrated control unit with one-touch line pattern switching for simplified operation. Adjustable steering delivers light, agile handling. Pneumatic glass bead spraying achieves more uniform coverage and superior adhesion, resulting in enhanced construction quality.

Advantages and Features

Advantages and features

Super-durable alloy plunger pump, with stable and adjustable spray performance

Features a 9L/min imported ultra-wear-resistant plunger pump delivering uniform flow with adjustable pressure from 0–20MPa, accommodating varying line thicknesses and widths. Utilises a variable-displacement pump coupled with an automatic reciprocating hydraulic cylinder for drive, eliminating complex electrical controls while ensuring continuous, stable and reliable power delivery.

High-efficiency cooling system, extending hydraulic service life

Equipped with a large-capacity aluminium die-cast hydraulic oil tank, paired with an efficient cooling fan and radiator, ensuring effective heat dissipation for the hydraulic system during continuous operation. This enhances operational stability and significantly extends the equipment's service life.

Intelligent electronic control + steering + spray application, ensuring efficient and high-quality construction.

The electrical system employs an independently integrated control unit, offering stable performance, compact dimensions, and clear labelling, with one-touch lane marking switching capability. The adjustable steering system is lightweight, agile, and responsive. Advanced pneumatic glass bead spraying delivers superior uniformity and adhesion compared to conventional spreading methods, ensuring optimal reflectivity and construction quality for road markings.

Basic product parameters

Comprehensively understand product specifications

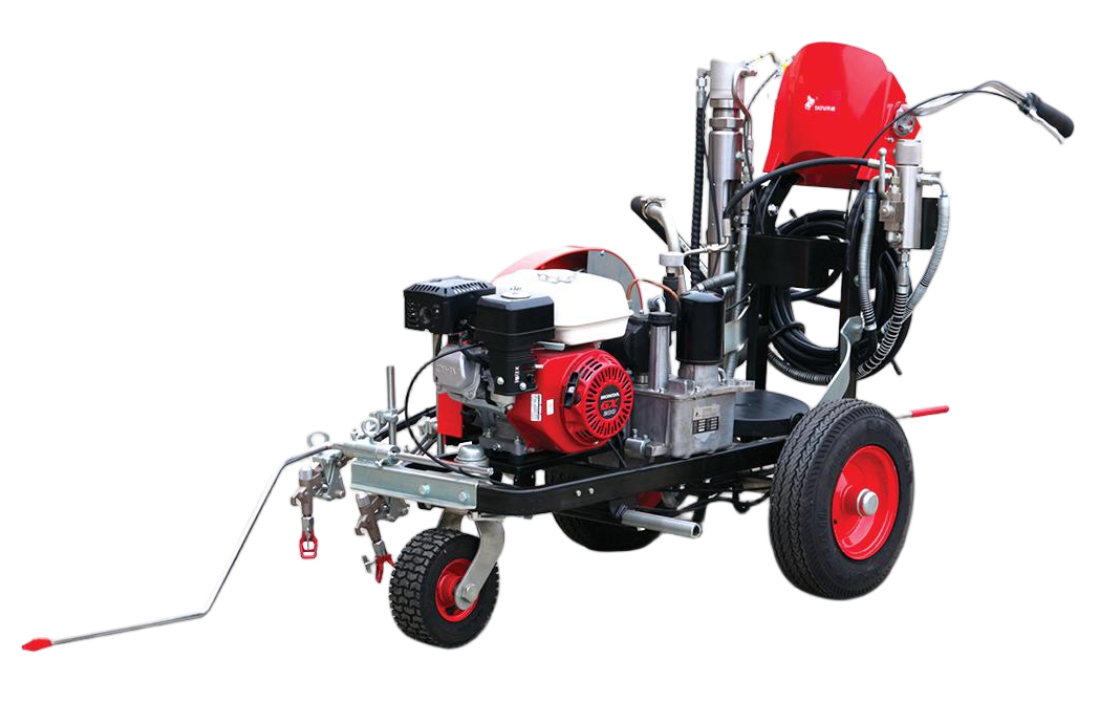

TT-SCP90 Manual Cold-Applied Road Marking Machine

This equipment is fitted with an ultra-durable alloy plunger-type coating pump, utilising a 9L/min imported ultra-wear-resistant plunger pump. Pressure is adjustable from 0–20Mpa to accommodate varying line thickness and width requirements. The variable-displacement pump is paired with an automatic reciprocating hydraulic cylinder, ensuring stable and sustained power delivery.

Model

TT-SCP90

Power source

Hydraulic power, imported variable displacement hydraulic pump

Marking method

High-pressure airless spraying

Pump flow rate

9L/min

Line width

50–400 mm (adjustable)

Weight

150kg

engine

6.0HP

Suitable coating types

Solvent-based at ambient temperature, water-based

Paint pump

Paired with the "Great road" automatic reciprocating plunger pump

Number of spray guns

2 manual spray guns (fitted with reverse-flush nozzles)

External dimensions

1740×1000×1250mm

Model

TT-SCP90

engine

6.0HP

Power source

Hydraulic power, imported variable displacement hydraulic pump

Suitable coating types

Solvent-based at ambient temperature, water-based

Marking method

High-pressure airless spraying

Paint pump

Paired with the "Great road" automatic reciprocating plunger pump

Pump flow rate

9L/min

Number of spray guns

2 manual spray guns (fitted with reverse-flush nozzles)

Line width

50–400 mm (adjustable)

External dimensions

1740×1000×1250mm

Weight

150kg
