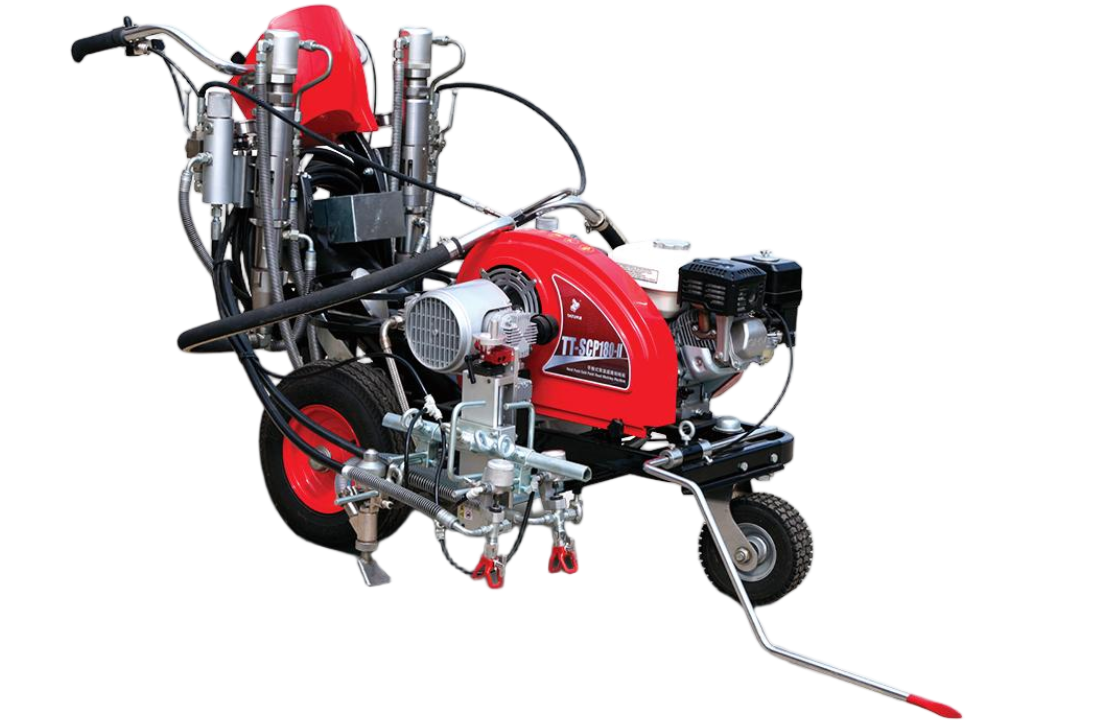

TT-SCP180 Hand-pushed Ambient Temperature Marking Machine - High-pressure airless spraying Hydraulic drive -WELL-ROAD

TT-SCP180 Push-type Road Marking Machine for Normal Temperature

This equipment is equipped with a high-pressure airless spraying system, featuring a dual-inlet, ultra-wear-resistant plunger pump with a flow rate of 9 L/min and an adjustable pressure range of 0–20 MPa, ensuring stable and sustained power output. It incorporates an efficient cooling system, comprising a large-capacity aluminum die-cast oil tank combined with fans and radiators to extend hydraulic system service life. The ergonomic design ensures comfortable operation, with flexible, user-friendly handles, spray guns, brackets, and swivel wheels. Additionally, it features an independently integrated electrical control system enabling linear, one-button mode switching; an adjustable steering system for lightweight, rapid maneuvering; and pneumatic glass-bead broadcasting for more uniform distribution and stronger adhesion—delivering overall stable performance and high-quality construction results.

Advantages and Features

Advantages and features

High-pressure airless spraying with stable flow and adjustable pressure

The high-pressure airless spraying system is equipped with dual 9L/min imported ultra-wear-resistant plunger pumps, delivering ample flow and stable output. Spraying pressure can be flexibly adjusted within the 0–20MPa range, accommodating coatings of varying viscosities to meet diverse requirements for line thickness and width.

Hydraulic drive ensures reliable operation with ample power for continuous work.

The combination of an imported variable displacement pump and an automatic reciprocating hydraulic cylinder eliminates the need for complex electronic control systems, providing continuous, smooth and sustained driving force for the paint pump. This ensures more reliable equipment operation and a lower failure rate.

High-efficiency cooling system, extending the service life of the entire unit

The large-capacity aluminium die-cast hydraulic oil tank, paired with an efficient cooling fan and radiator, maintains effective heat dissipation during continuous high-intensity operation. This significantly reduces oil temperature, thereby enhancing the stability and service life of the hydraulic system.

Ergonomic design for comfortable and effortless handling

Featuring an ergonomically designed control handle, a flexible and lightweight spray gun control assembly, a multi-directional adjustable spray gun bracket, and lockable front swivel castors, operation is effortless and intuitive, significantly enhancing comfort during extended periods of use.

Integrated electronic control system, one-touch switching between linear modes

The electrical system employs a proprietary integrated control system, offering stable performance, a clean aesthetic, compact dimensions, and clear labelling. Its operation is straightforward and intuitive, enabling rapid one-touch switching between line types to accommodate diverse construction requirements.

Steering + spray optimisation, delivering superior line marking quality

The adjustable steering system offers agile lateral control, swift response, and effortless installation. Utilising an advanced pneumatic spray system for glass beads, it achieves superior uniformity and enhanced adhesion compared to traditional rolling methods, significantly improving the reflectivity of road markings and overall construction quality.

Basic product parameters

Comprehensive understanding of product specifications

TT-SCP180 Manual Cold-Applied Road Marking Machine

This equipment incorporates a high-pressure airless spraying system, utilising dual imported 9L/min ultra-wear-resistant plunger pumps. Pressure is adjustable from 0–20MPa, delivering stable and sustained power.

Engine

6.0HP

Applicable Paint Types

Solvent-based at ambient temperature, water-based, two-component

Paint pump

Dual-Head “Greatroad” Automatic Reciprocating Plunger Pump

Number of spray guns

2 pneumatic spray guns (fitted with reverse decontamination nozzles)

Line width

50–400 mm (adjustable)

Weight

200kg

Power Source

Hydraulic Power

Marking method

High-pressure airless spraying

Pump Flow

9 L/min×2

Glass bead jar capacity

10L

External dimensions

1740×1000×1250mm

Engine

6.0HP

Power Source

Hydraulic Power

Applicable Paint Types

Solvent-based at ambient temperature, water-based, two-component

Marking method

High-pressure airless spraying

Paint pump

Dual-Head “Greatroad” Automatic Reciprocating Plunger Pump

Pump Flow

9 L/min×2

Number of spray guns

2 pneumatic spray guns (fitted with reverse decontamination nozzles)

Glass bead jar capacity

10L

Line width

50–400 mm (adjustable)

External dimensions

1740×1000×1250mm

Weight

200kg
