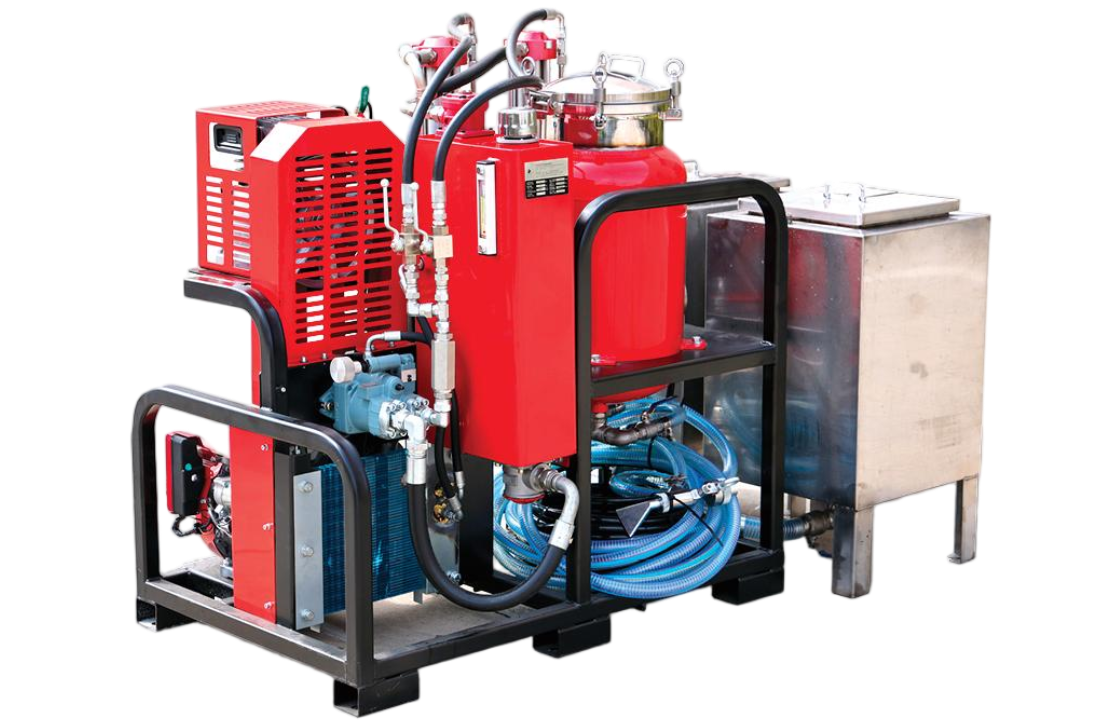

TT-ZCP400-I Road Marking Machine for Vehicle

This equipment features an intelligent operating system, achieving precise line marking control via a control box and programmable microcomputer, with the ability to freely select or input line profile standards. The high-pressure airless spraying system employs dual imported 20L/min ultra-wear-resistant plunger pumps, with adjustable pressure from 0–25Mpa, compatible with various coatings and line specifications. The variable pump + hydraulic cylinder drive ensures stable and reliable operation, also capable of spraying two-component 1:1 coatings. Electrical, steering, and spray systems have been synchronously upgraded. The proprietary integrated electronic control enables one-touch line pattern switching. Adjustable steering ensures light and agile manoeuvrability. Pneumatic glass bead spraying delivers more uniform coverage and stronger adhesion, resulting in highly efficient and precise overall construction.

Advantages and Features

Advantages and features

Intelligent operating system, linear precision and controllability

All marking operations can be performed via the control box. At its core lies a programmable microcomputer module, enabling precise selection or input of line type standards according to construction requirements. It offers accurate control and straightforward operation.

High-pressure airless spraying, powerful and versatile

Equipped with dual imported 20L/min ultra-wear-resistant plunger pumps, delivering high flow rates with adjustable pressure from 0–25MPa to accommodate diverse coating types, thicknesses and widths. The variable-displacement pump integrates with an automatic reciprocating hydraulic cylinder, ensuring continuous and stable power output. Capable of retrofitting for spraying two-component 1:1 road marking paint.

Electronically controlled steering optimisation, ensuring uniform and robust spray application

Featuring an independently integrated electrical control system, this unit delivers reliable performance with a compact footprint and clear labelling, enabling one-touch switching between line patterns. Its adjustable steering system operates swiftly and is lightweight for easy installation. Utilising advanced pneumatic glass bead spraying technology, it achieves superior uniformity and adhesion compared to traditional spreading methods, effectively enhancing line quality and reflective performance.

Basic product parameters

Comprehensively understand product specifications

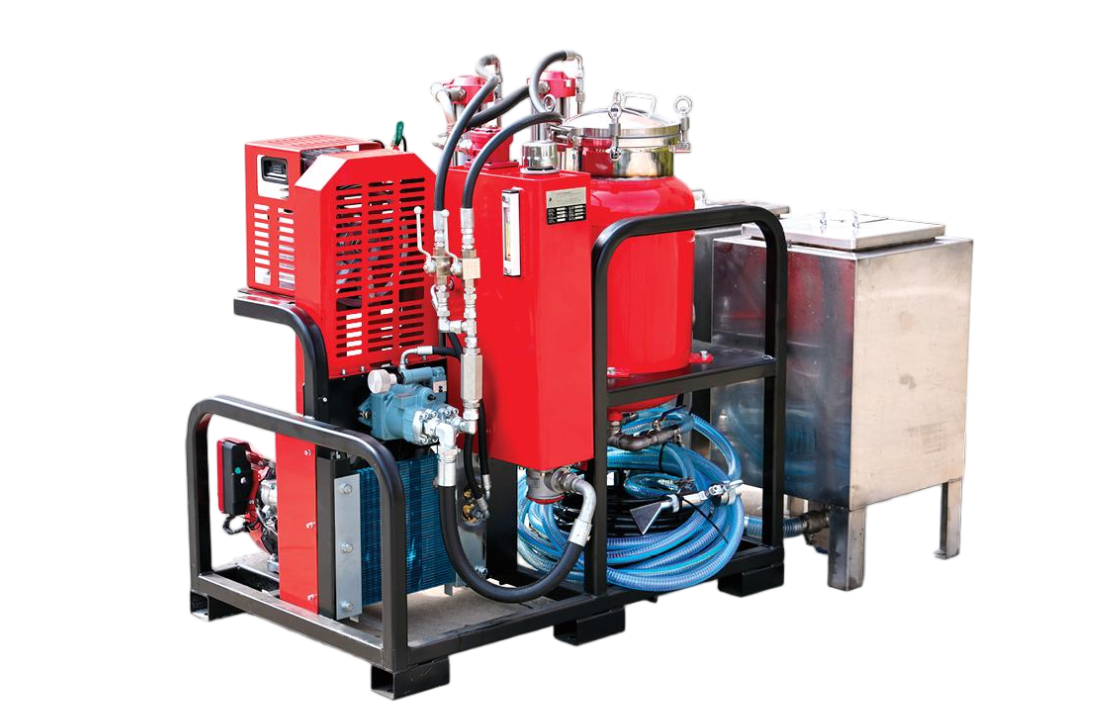

TT-ZCP400-I Vehicle-Mounted Ambient Temperature Road Marking Machine

The equipment is fitted with an intelligent operating system, enabling precise line-drawing control via a control box and programmable microcomputer. Line patterns may be freely selected or custom input.

Model

TT-ZCP400

Power source

Hydraulic power

Marking method

High-pressure airless spraying

Pump flow rate

20L/min×2

Glass bead jar capacity

50L

Line width

50–1000 mm (adjustable)

Weight

735kg

Engine

13.0HP

Suitable coating types

Solvent-based at ambient temperature, water-based, two-component

Paint pump

Dual-configuration "Great road" automatic reciprocating plunger pump

Number of spray guns

3 pneumatic spray guns, 1 manual spray gun (fitted with reverse decontamination nozzle)

Paint Can Capacity

100L×2

External dimensions

1150×1390×1410mm

Model

TT-ZCP400

Engine

13.0HP

Power source

Hydraulic power

Suitable coating types

Solvent-based at ambient temperature, water-based, two-component

Marking method

High-pressure airless spraying

Paint pump

Dual-configuration "Great road" automatic reciprocating plunger pump

Pump flow rate

20L/min×2

Number of spray guns

3 pneumatic spray guns, 1 manual spray gun (fitted with reverse decontamination nozzle)

Glass bead jar capacity

50L

Paint Can Capacity

100L×2

Line width

50–1000 mm (adjustable)

External dimensions

1150×1390×1410mm

Weight

735kg
