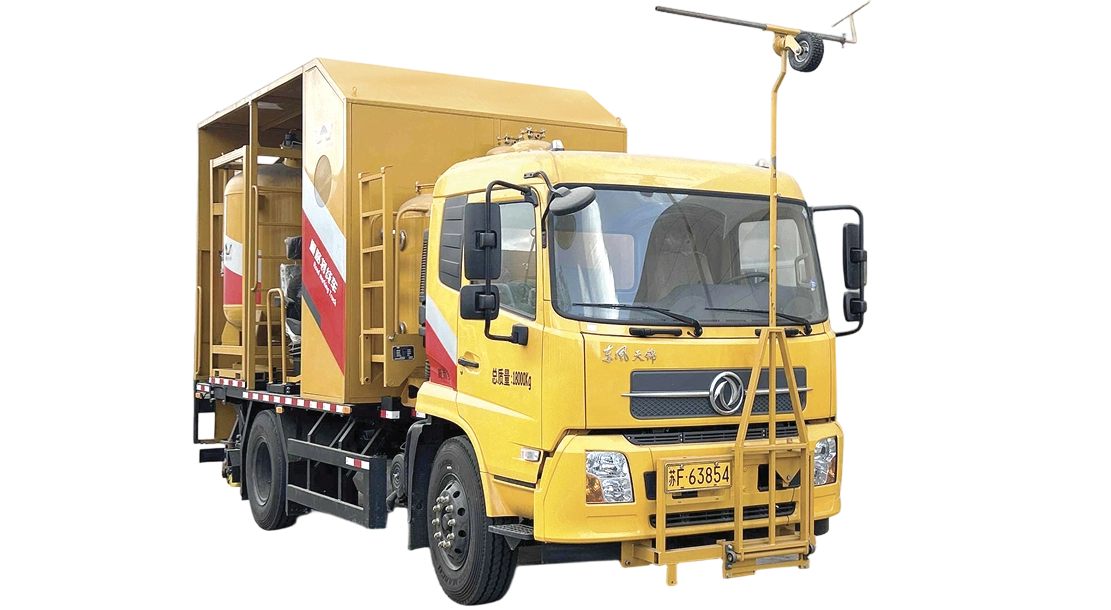

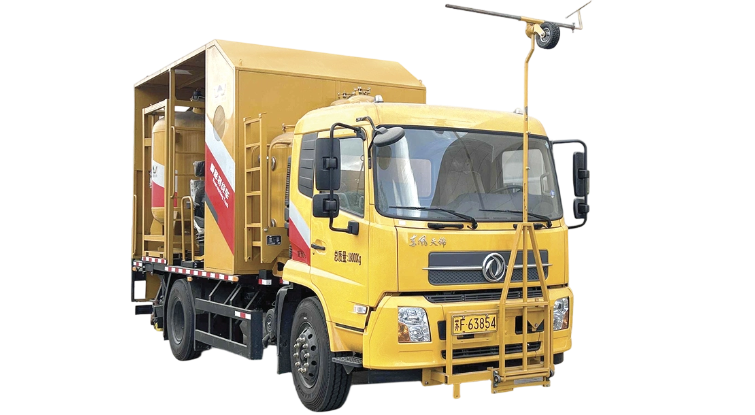

WRD5183THX Two-Component (Ambient Temperature/Water-Based) Road Marking Vehicle

WRD5183THX

The WRD5183THX road marking vehicle is an intelligent line marking device that integrates multiple construction methods, including two-component spraying, dot extrusion, and fling coating. It is equipped with a precise coating and curing agent mixing control system, a continuous material supply system, and an imported hydraulic distribution system, which can flexibly meet various marking construction needs and achieve efficient, high-quality, and intelligent road marking operations.

Advantages and Features

Advantages and features

Modular construction system, flexibly adapting to needs

Supports various marking methods such as two-component spraying, spot extrusion, and fling coating. Users can choose combinations according to their needs. Each module uses a convenient assembly and disassembly design, allowing the construction system to switch quickly and flexibly, meeting diverse engineering requirements.

Imported hydraulic precise speed control ensures stable marking quality

Using a fully imported hydraulic transfer system, it achieves free switching between high and low construction speeds and stable constant-speed control, ensuring that road markings are uniform and straight, while reducing the operator's workload and improving construction smoothness.

Intelligent Data Collection and Quality Monitoring

The intelligent line marking control system supports automatic collection, analysis, and printing of construction parameters. It can automatically evaluate and alert on paint consumption, construction length, area, thickness, and real-time positioning, achieving digital and traceable management of the construction process.

Precise Control of Paint and Hardener Ratio

Using microcomputer precision control of the coating and curing agent delivery, the ratio is accurate and stable. The built-in quick cleaning system facilitates equipment maintenance, ensuring uniform mixing during construction and reliable line marking quality.

Uninterrupted continuous feeding, construction is continuous and efficient

Equipped with sealed large-capacity paint tanks and glass bead tanks, it supports long-duration and long-distance continuous construction, prevents paint from oxidizing and glass beads from getting damp, and automatically warns when materials are running low during construction, ensuring uninterrupted operation.

Diversified Glass Bead Spreading System

Using a pressure-type double glass bead jar with a pneumatic proportioning device, it achieves automatic control of different glass bead spreading amounts and continuous feeding, adapting to various road marking reflectivity requirements and improving nighttime driving safety.

Basic product parameters

Comprehensive understanding of product information

WRD5183THX Two-Component (Ambient Temperature/Water-Based) Road Marking Vehicle

The WRD5183THX road marking vehicle is an intelligent line marking device that integrates multiple construction methods such as two-component spraying, point extrusion, and flicking.

Product Model

WRD5183THX

Wheelbase

3650mm

Curb weight

11540kg

Total mass

18000kg

Marking device

Spraying device, spinning paint bucket, dot-shaped extrusion hopper

Paint can capacity

2X1200L

Glass bead jar capacity

2X500L

Marking method

Two-component spray straight line; two-component extrusion dot line, fling-coated straight line

Dimensions

8090×2450×3845mm

Chassis Model

DFH1180BX1V

Engine model

ISD180 50

Engine power

127 kW

Line width

100-400mm (requires optional selection to replace hoppers of different specifications)

Construction speed

0-8km/h

Line thickness

0.3-5mm

Product Model

WRD5183THX

Dimensions

8090×2450×3845mm

Wheelbase

3650mm

Chassis Model

DFH1180BX1V

Curb weight

11540kg

Engine model

ISD180 50

Total mass

18000kg

Engine power

127 kW

Marking device

Spraying device, spinning paint bucket, dot-shaped extrusion hopper

Line width

100-400mm (requires optional selection to replace hoppers of different specifications)

Paint can capacity

2X1200L

Construction speed

0-8km/h

Glass bead jar capacity

2X500L

Line thickness

0.3-5mm

Marking method

Two-component spray straight line; two-component extrusion dot line, fling-coated straight line
