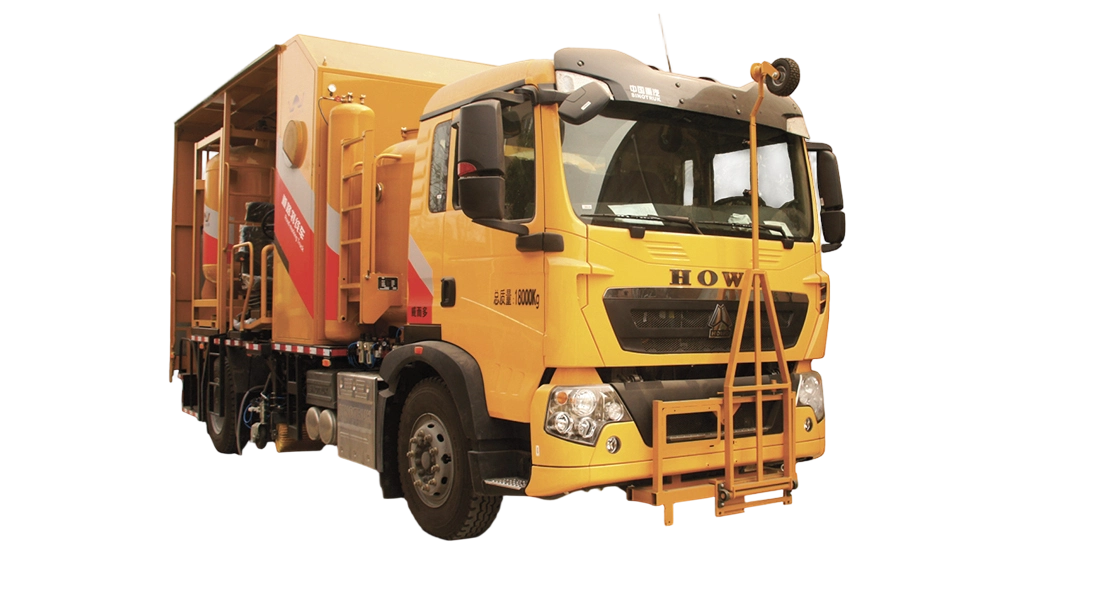

WRD5181THX Two-Component (Ambient Temperature/Water-Based) Road Marking Vehicle

WRD5181THX

The WRD5181THX road marking vehicle is an intelligent line-marking device that integrates multiple construction methods, including two-component spraying, dot extrusion, and spin coating. It is equipped with a precise paint and curing agent mixing control system, a continuous recirculation feeding system, and an imported hydraulic transfer system, which can flexibly meet various marking construction requirements and achieve efficient, high-quality, and intelligent road marking operations.

Advantages and Features

Advantages and features

Modular construction system, flexibly adapting to needs

Supports various marking methods such as two-component spraying, spot extrusion, and flicking; users can choose combinations according to their needs. Each module uses a convenient assembly and disassembly design, allowing the construction system to switch quickly and flexibly, meeting diverse engineering requirements.

Imported hydraulic precise speed control, stable marking quality

Using a fully imported hydraulic transfer system, it achieves free switching between high and low construction speeds and stable constant-speed control, ensuring uniform and straight markings, while reducing operator effort and improving construction smoothness.

Intelligent Data Collection and Quality Monitoring

The intelligent line marking control system supports automatic collection, analysis, and printing of construction parameters. It can automatically evaluate and alert on paint consumption, construction length, area, thickness, and real-time positioning, achieving digital and traceable management of the construction process.

Precise Control of Paint and Hardener Ratio

Using microcomputer precision control of the coating and curing agent delivery, the ratio is accurate and stable. The built-in quick cleaning system facilitates equipment maintenance, ensuring uniform mixing during construction and reliable line marking quality.

Continuous loop feeding, efficient and uninterrupted construction

Equipped with sealed large-capacity paint and glass bead containers, supporting long-duration and long-distance continuous construction, preventing paint oxidation and glass bead moisture absorption. During construction, it can automatically alert when materials are low to ensure uninterrupted operation.

Diversified Glass Bead Spreading System

Using a pressure-type double glass bead jar with a pneumatic proportioning device, it achieves automatic control of different glass bead spreading amounts and continuous feeding, adapting to various road marking reflectivity requirements and improving nighttime driving safety.

Basic product parameters

Comprehensive understanding of product information

WRD5181THX Two-Component (Ambient Temperature/Water-Based) Road Marking Vehicle

The WRD5181THX road marking vehicle is an intelligent line-marking device that integrates multiple construction methods, including two-component spraying, dot extrusion, and flick spraying.

Product Model

WRD5181THX

Wheelbase

5000mm

Curb weight

13100kg

Total mass

18000kg

Marking device

Spraying device, slinging paint hopper, dotted extrusion hopper

Paint can capacity

2X1200L

Glass bead jar capacity

2X500L

Marking method

Two-component spray straight line; two-component extrusion dot line, fling-coated straight line

Dimensions

9130×2530×3955mm

Chassis Model

ZZ1187N501GF1

Engine model

MC07H.35-60 National VI

Engine power

248kW

Line width

50-400mm (requires optional selection to replace hoppers of different specifications)

Construction speed

0-8 km/h

Line thickness

0.3-5mm

Product Model

WRD5181THX

Dimensions

9130×2530×3955mm

Wheelbase

5000mm

Chassis Model

ZZ1187N501GF1

Curb weight

13100kg

Engine model

MC07H.35-60 National VI

Total mass

18000kg

Engine power

248kW

Marking device

Spraying device, slinging paint hopper, dotted extrusion hopper

Line width

50-400mm (requires optional selection to replace hoppers of different specifications)

Paint can capacity

2X1200L

Construction speed

0-8 km/h

Glass bead jar capacity

2X500L

Line thickness

0.3-5mm

Marking method

Two-component spray straight line; two-component extrusion dot line, fling-coated straight line
