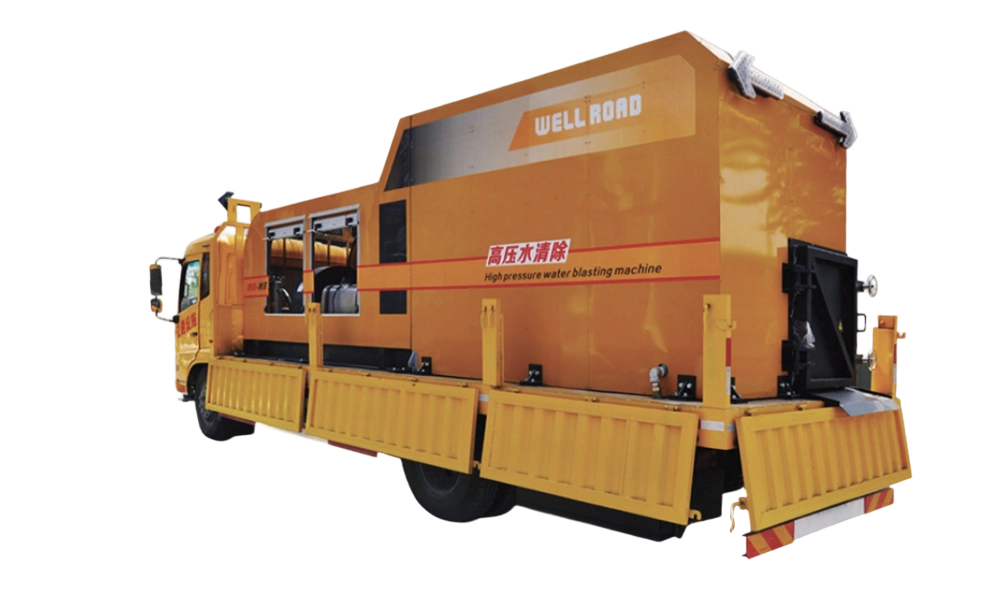

WR-WBZ20MP/PT cleaning vehicle (vehicle-mounted high-pressure water cleaning)

WR-WBZ20MP/PT

The WR-WBZ20MP/PT standard vehicle-mounted high-pressure water stripping machine is a high-pressure water marking removal device that can be directly mounted on the user's own truck. Utilizing 200MPa ultra-high pressure water technology and equipped with a hand-propelled operating end, it features high flexibility, high reliability, and intelligent safety protection, allowing for economical and efficient adaptation to various marking removal tasks.
The WR-WBZ20MP/PT standard vehicle-mounted high-pressure water stripping machine is a high-pressure water marking removal device that can be directly mounted on the user's own truck. Utilizing 200MPa ultra-high pressure water technology and equipped with a hand-propelled operating end, it features high flexibility, high reliability, and intelligent safety protection, allowing for economical and efficient adaptation to various marking removal tasks.

Advantages and Features

Advantages and features

Modular loading, economical and flexible
It can be directly loaded onto trucks owned or purchased by users that meet the required size specifications, eliminating the need for a dedicated chassis. This significantly reduces equipment procurement and maintenance costs, while enhancing the flexibility of vehicle usage.
200MPa ultra-high pressure system, reliable and durable
Equipped with a 200MPa high-flow ultra-high pressure water pump, all key components are imported with original packaging. With a single maintenance, it can operate continuously for 600-1000 hours, ensuring long-term stable operation of the equipment and reducing maintenance frequency.
Hand-propelled operation end, flexibly adaptable to complex working conditions
Equipped with a hand-pushed removal unit, it offers convenient and flexible operation, adapting to various road conditions and working conditions for marking removal tasks, enhancing construction adaptability.
Intelligent security protection system
Equipped with a two-stage filtration system ranging from 1 to 10μm, it features multiple safety protection functions such as automatic prompts for filter blockage, automatic shutdown in case of excessive pressure, and automatic alarm and shutdown in case of exceeding pressure difference, ensuring equipment and operational safety.
Rapid and efficient performance cleanup
The single cleaning disc is equipped with a ruby nozzle, achieving a cleaning speed of up to 40-45 square meters per hour. It can meet the needs for efficient and high-quality removal of road markings, thereby enhancing construction efficiency.
Compact structure, easy to deploy
The entire machine is compact in size (6600x2500x3100mm) and lightweight (3600kg), allowing for quick loading into standard truck bodies, facilitating site transfers and deployments, and adapting to construction needs in various locations.

Basic product parameters

Comprehensive understanding of product information

WR-WBZ20MP/PT Cleaning Vehicle (Vehicle-mounted High-pressure Water Removal)

The WR-WBZ20MP/PT standard vehicle-mounted high-pressure water removal machine is a high-pressure water line removal device that can be directly mounted on the user's own truck.

Category

WR-WBZ20MP/PTA、WR-WBZ20MP/PTCWR-WBZ20MP/PTB、

Main pump brand and rated pressure

JETECH200,200Mpa;GREATROAD,200Mpa;JETSTREAM,200Mpa

Filtration accuracy

1-10μm two-stage filtration

Fuel tank capacity

300L

Maximum width of clearance markings

200mm

Dimensions

6600x2500x3100mm

Recommended chassis specifications

The total weight is 16 tons, with a wheelbase of 5 meters, a carriage length of 6.8 meters, and a width of 2.5 meters

Engine Model and Power

Weichai WP6B120E201 120 kW or Dongfeng Cummins QSB5.9 133 kW

System traffic

24L/min;36L/min

Water Supply Booster Pump

12.5 m³/h, lift 20 m

Clearing device

Single cleaning plate, ruby nozzle

Maximum speed for clearing lane markings

35-40㎡/h;40-45㎡/h

Overall machine weight

3600kg

Category

WR-WBZ20MP/PTA、WR-WBZ20MP/PTCWR-WBZ20MP/PTB、

Engine Model and Power

Weichai WP6B120E201 120 kW or Dongfeng Cummins QSB5.9 133 kW

Main pump brand and rated pressure

JETECH200,200Mpa;GREATROAD,200Mpa;JETSTREAM,200Mpa

System traffic

24L/min;36L/min

Filtration accuracy

1-10μm two-stage filtration

Water Supply Booster Pump

12.5 m³/h, lift 20 m

Fuel tank capacity

300L

Clearing device

Single cleaning plate, ruby nozzle

Maximum width of clearance markings

200mm

Maximum speed for clearing lane markings

35-40㎡/h;40-45㎡/h

Dimensions

6600x2500x3100mm

Overall machine weight

3600kg

Recommended chassis specifications

The total weight is 16 tons, with a wheelbase of 5 meters, a carriage length of 6.8 meters, and a width of 2.5 meters
