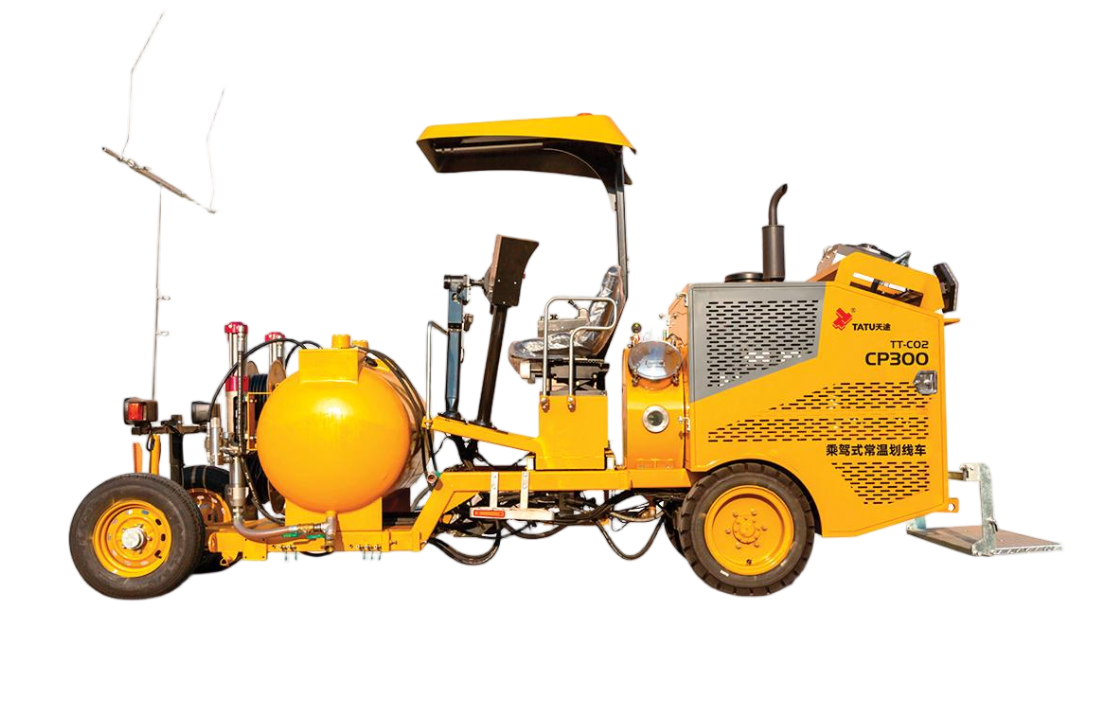

TT-C02-CP300 Ride-on Ambient Temperature Road Marking Machine

TT-C02-CP300 Passenger Car Temperature Marking Machine

The intelligent operating system enables precise control of line patterns; the high-pressure airless spraying system delivers stable power with adjustable pressure, facilitating the application of two-component coatings; the integrated dual-tank feed system supports continuous operation; the glass bead spraying system prevents clogging and features adjustable parameters.

Advantages and Features

Advantages and features

Smart Operating System

All line control and operation functions are performed via the control box, whose core system employs a programmable microcomputer module for precise control. This enables users to accurately manipulate line selection or input required line standards in accordance with construction specifications.

High-Pressure Airless Spray System (CPAL)

Dual-configuration imported brand ultra-wear-resistant plunger pump (single pump flow rate 20L/min), delivering high flow and stable pressure. Spraying pressure is adjustable within the 0-20MPa range to meet user requirements for line thickness and width when applying coatings of varying viscosities. The seamless integration of an imported variable-displacement pump and an automatic reciprocating hydraulic cylinder eliminates the need for complex paint pump drive control systems, delivering continuous, enduring, and stable driving force to the paint pump.

Dual-tank integrated feeding system

Large-capacity paint tanks meet the demands of large-scale, long-distance, uninterrupted road marking projects. The tanks incorporate a hydraulic stirring system, ensuring efficient and convenient mixing operations.

Glass Bead Blasting System

Large-capacity pressurised glass bead tank equipped with an efficient drying system, effectively preventing issues such as moisture absorption and nozzle blockage. Glass bead spraying pressure, flow rate, and spray width can all be adjusted according to construction requirements, fully meeting user specifications for glass bead spraying applications.

Basic product parameters

Comprehensively understand product specifications

TT-C02-CP300 Ride-on Ambient Temperature Road Marking Machine

engine

33.7 kW water-cooled four-cylinder diesel engine

Total weight

2600Kg

Glass bead jar capacity

120L

Rated pressure of the air circuit

0.8Mpa

Maximum flow rate of the paint line

20 litres per minute (dual coating pump)

Working pressure of the paint line

12~16MPa

Spraying speed

2~8km/h

Wheelbase

3135mm

Rear wheel width

1260mm

Travel speed

0-8km/h

Spray width

150–800 mm (adjustable, optional 1000-type spray gun bracket)

External dimensions

4700×1470×2200mm

Paint Can Capacity

2×150L

Maximum climbing ability

15°

Air compressor

0.25m3/min

Maximum pressure on the paint line

20MPa

Rated pressure of the paint line

16MPa

Spray coating thickness

0.1~0.3mm

Diesel tank

90L

Front wheel width

1260mm

Glass bead blasting gun count

Number of paint spray guns

3 (automatic) + 1 (manual)

engine

33.7 kW water-cooled four-cylinder diesel engine

External dimensions

4700×1470×2200mm

Total weight

2600Kg

Paint Can Capacity

2×150L

Glass bead jar capacity

120L

Maximum climbing ability

15°

Rated pressure of the air circuit

0.8Mpa

Air compressor

0.25m3/min

Maximum flow rate of the paint line

20 litres per minute (dual coating pump)

Maximum pressure on the paint line

20MPa

Working pressure of the paint line

12~16MPa

Rated pressure of the paint line

16MPa

Spraying speed

2~8km/h

Spray coating thickness

0.1~0.3mm

Wheelbase

3135mm

Diesel tank

90L

Rear wheel width

1260mm

Front wheel width

1260mm

Travel speed

0-8km/h

Glass bead blasting gun count

Spray width

150–800 mm (adjustable, optional 1000-type spray gun bracket)

Number of paint spray guns

3 (automatic) + 1 (manual)
