WELL-ROAD

TT-ZRF300-Ⅳ fuel indirect heating single-cylinder hot melt kettle

TT-ZRF300-Ⅳ Indirect fuel heating single-cylinder hot melt kettle

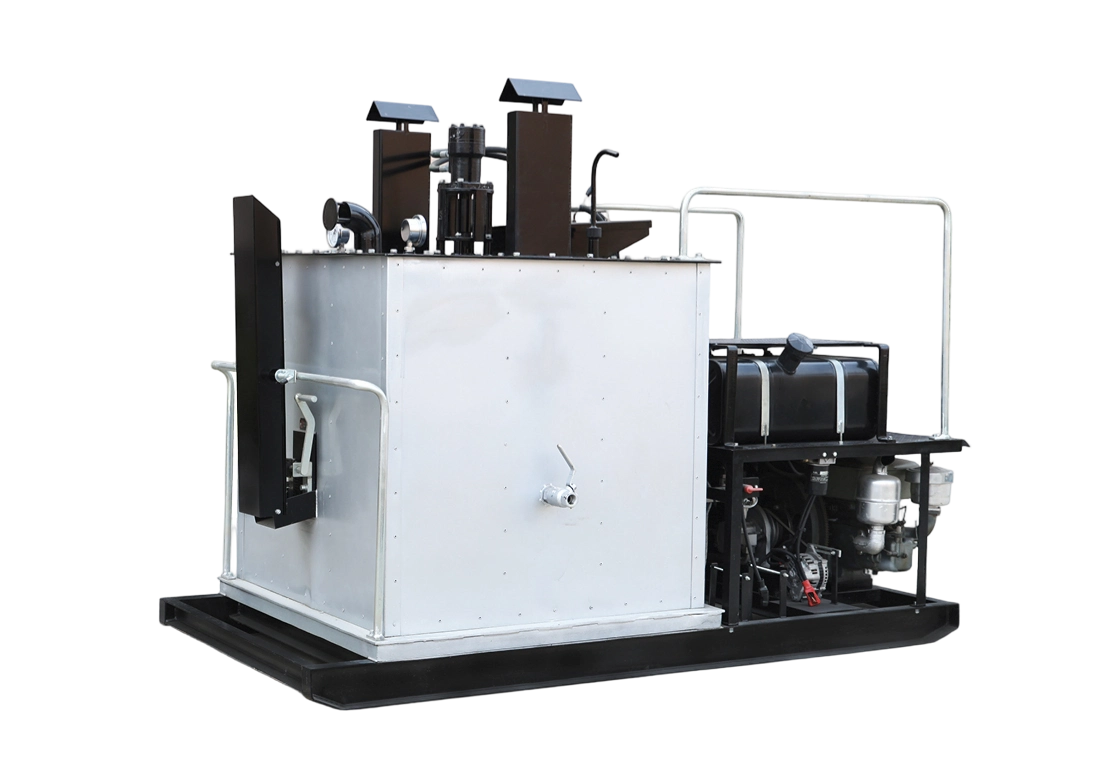

The TT-ZRF300-Ⅳ is a 300L single-cylinder hot melt kettle indirectly heated by imported burner fuel. It is equipped with a special heat-resistant steel material tank, hydraulic stepless stirring, double-layer insulation (heat transfer oil + new materials), and an indirect heating system. It features uniform heating, energy conservation, high efficiency, safety and reliability. It is suitable for high-quality hot-melt coating melting operations in areas with abundant diesel resources or high-altitude regions.

Advantages and Features

Advantages and features

Imported burners provide efficient indirect heating

It adopts professional imported diesel injection burners, which indirectly heat the pot body through a heat transfer oil layer, achieving uniform heating throughout and avoiding local overheating. It has high heating efficiency and good construction safety, especially suitable for areas with abundant diesel, high altitudes or scarce gas.

300L large-capacity single-cylinder molten material

The special heat-resistant steel spinning forming material tank is adopted, with an effective volume of 300L and a moderate capacity. Combined with the hydraulic-driven spiral blades for forward and reverse stirring, it ensures that the coating is heated and stirred evenly, protecting the best film performance of the coating.

Precise control of hydraulic stepless stirring

The stirring system is driven by high-quality hydraulic pumps and hydraulic control valves, featuring large torque, stepless speed adjustment, high uniformity of stirring, simple hydraulic control operation and anti-misoperation protection function.

Double-layer composite insulation and energy saving

It adopts a composite double-layer insulation structure with a heat transfer oil layer and a new type of insulation material filling layer, which has excellent insulation effect, effectively reduces heat loss, significantly saves fuel consumption and lowers operating costs.

Optional automatic temperature control and safety system

An optional automatic temperature control system can be equipped to achieve automatic control of heating temperature and ensure the stability of coating quality. Additional optional safety auxiliary devices such as police lights, lighting, and fire extinguishers are available to enhance the safety and convenience of construction.

Compact and lightweight design

The overall weight of the machine is 1200kg, with moderate external dimensions (2300×1250×1800mm), compact structure, facilitating rapid on-site deployment and relocation, and suitable for flexible construction needs of medium and small-sized projects.

Basic product parameters

Gain a comprehensive understanding of product information

TT-ZRF300-Ⅳ fuel indirect heating single-cylinder hot melt kettle

The TT-ZRF300-Ⅳ is a 300L single-cylinder hot melt kettle that uses imported burner fuel for indirect heating

engine

18HP, diesel single-cylinder engine

Bowl Capacity

300L

Insulation method

Double-layer insulation with a heat transfer oil layer and a new type of insulation material filling layer

boundary dimension

2300×1250×1800mm

use fuel

diesel

Stir to drive

High-quality hydraulic pumps, hydraulic control valves, and hydraulic agitators

heating method

Imported high-quality burners for indirect heating

Temperature control mode

Standard manual control

weight

1200kg

Additional optional device

Automatic temperature control system, safety assistance system (warning light system, lighting system, fire extinguisher holder)

engine

18HP, diesel single-cylinder engine

Stir to drive

High-quality hydraulic pumps, hydraulic control valves, and hydraulic agitators

Bowl Capacity

300L

heating method

Imported high-quality burners for indirect heating

Insulation method

Double-layer insulation with a heat transfer oil layer and a new type of insulation material filling layer

Temperature control mode

Standard manual control

boundary dimension

2300×1250×1800mm

weight

1200kg

use fuel

diesel

Additional optional device

Automatic temperature control system, safety assistance system (warning light system, lighting system, fire extinguisher holder)
