WELL-ROAD

TT-ZRFS450-III/IV fuel oil direct (indirect) heating type hot melt kettle

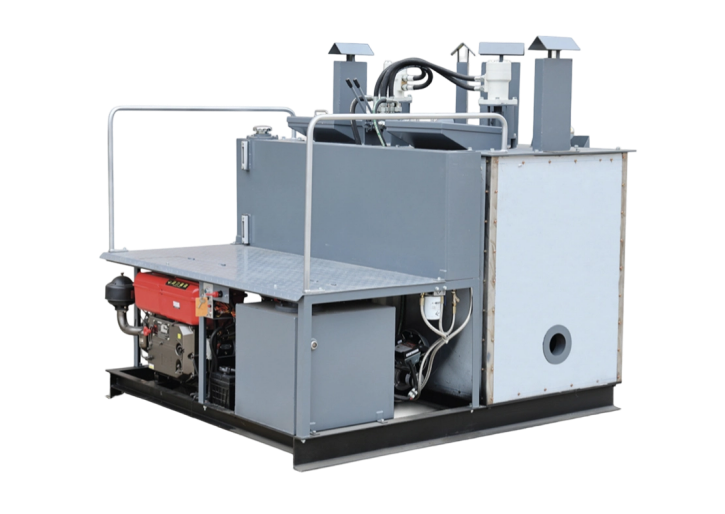

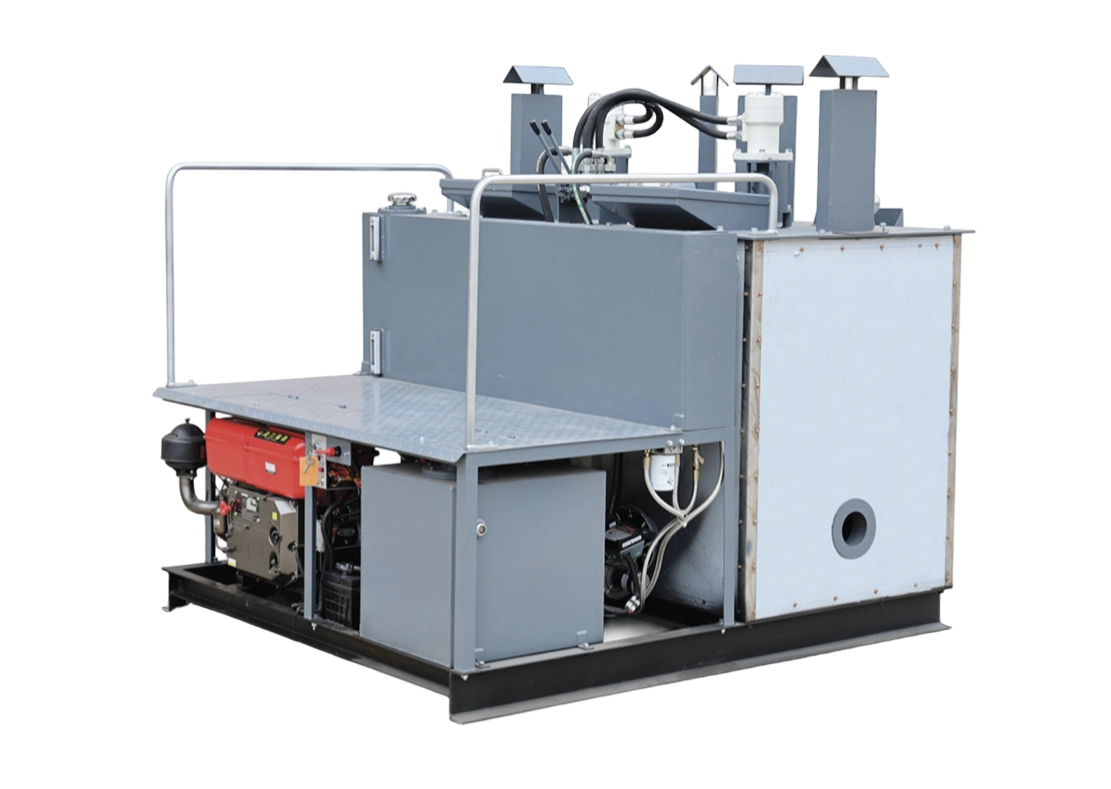

TT-ZRFS450-III/IV Fuel-fired Direct (Indirect) Heating Hot Melt Kettle

The TT-ZRFS450-III/IV is a double-cylinder hot melt kettle featuring dual 250L heat-resistant steel tanks, direct (indirect) fuel heating, and hydraulic stepless stirring. It is equipped with imported burners and a double-layer insulation system, offering high heating efficiency, uniform stirring, energy conservation, and safety. It supports automatic temperature control and indirect heating options. It is suitable for high-quality hot-melt coating melting operations in areas with abundant diesel resources or high-altitude regions.

Advantages and Features

Advantages and features

Double vertical material tanks evenly melt materials

It is equipped with two special heat-resistant steel spinning forming material tanks, each with an effective volume of 250L and a total capacity of 500L. Combined with the hydraulic-driven spiral blades for forward and reverse stirring, it ensures that the coating is heated and stirred evenly, protecting the best film performance of the coating.

The imported burner provides efficient heating

It adopts professional imported diesel injection burners. The flame size is optimally matched with the structure of the pot body, featuring high heating efficiency and good construction safety. It is especially suitable for use in areas rich in diesel resources, high-altitude regions or those lacking gas.

Fuel direct (indirect) heating is optional

It is equipped with direct fuel heating as standard and can be optionally equipped with an indirect heating system. The heat transfer oil layer ensures uniform heating of the pot body, avoiding local overheating, improving heating efficiency and insulation effect, and ensuring the stability of coating quality.

Precise control of hydraulic stepless stirring

The stirring system is driven by high-quality hydraulic pumps and hydraulic control valves, featuring large torque, stepless speed adjustment, high uniformity of stirring, simple hydraulic control operation and anti-misoperation protection function.

Double-layer insulation and energy-saving structure

It adopts a special double-layer insulation structure, with new insulation materials filled in the interlayer. It has excellent insulation effect, effectively reduces heat loss, significantly saves fuel consumption and lowers operating costs.

Optional automatic temperature control ensures quality

An optional automatic temperature control system can be equipped to achieve precise and automatic control of the heating temperature, ensuring that the coating is always heated and maintained within a reasonable temperature range, avoiding insufficient or excessive heating that may affect the performance of the coating.

Basic product parameters

Gain a comprehensive understanding of product information

TT-ZRFS450-III/IV fuel oil direct (indirect) heating type hot melt kettle

The TT-ZRFS450-III/IV is a double-cylinder hot melt kettle featuring dual 250L heat-resistant steel material tanks, direct (indirect) fuel heating, and hydraulic stepless stirring

model

TT-ZRFS450-Ⅲ series

Drive mode of the stirring system

High-quality hydraulic pump, hydraulic control valve, hydraulic agitator

heating method

Imported high-quality burner, direct heating (standard configuration)

Insulation method

New type of insulation material filled insulation layer

boundary dimension

2200×1750×1860mm

engine power

18HP diesel single-cylinder engine

The capacity of the diesel tank used

120L

Temperature control mode

Manual control, automatic temperature control (optional)

Paint can capacity

2X250L (Vertical)

total weight

1800kg

model

TT-ZRFS450-Ⅲ series

engine power

18HP diesel single-cylinder engine

Drive mode of the stirring system

High-quality hydraulic pump, hydraulic control valve, hydraulic agitator

The capacity of the diesel tank used

120L

heating method

Imported high-quality burner, direct heating (standard configuration)

Temperature control mode

Manual control, automatic temperature control (optional)

Insulation method

New type of insulation material filled insulation layer

Paint can capacity

2X250L (Vertical)

boundary dimension

2200×1750×1860mm

total weight

1800kg
