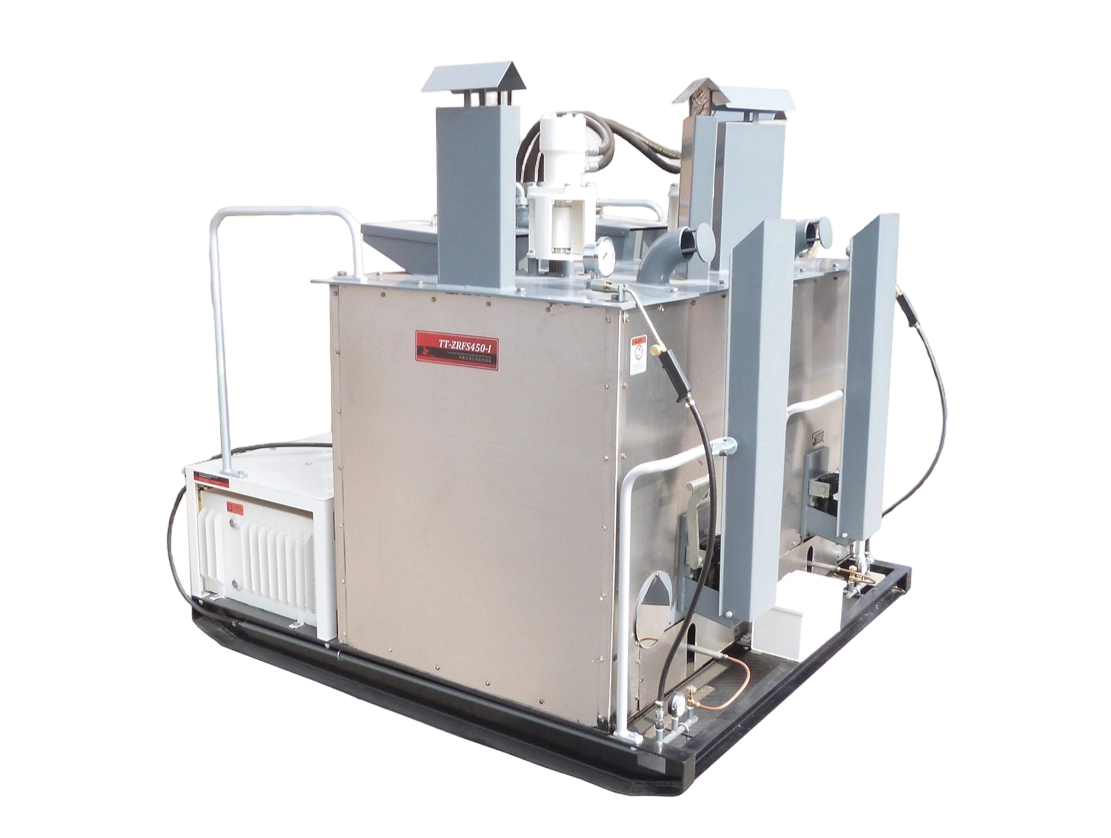

TT-ZRFS450-I/B gas-fired direct (indirect) heating type hydraulic double-cylinder hot melt pot

TT-ZRFS450-I/B Gas-fired Direct (Indirect) Heating Hydraulic Double-cylinder Hot Melt Reactor

The TT-ZRFS450-I/B is a double-cylinder hot melt kettle featuring dual 225L heat-resistant steel material tanks, direct (indirect) gas heating, and hydraulic stepless stirring. It is characterized by uniform molten material, efficient heating, energy conservation, and heat preservation. It supports automatic temperature control and indirect heating options and is suitable for high-quality melting operations of medium and small-scale hot melt coatings.

Advantages and Features

Advantages and features

Double vertical material tanks evenly melt materials

It is equipped with two special heat-resistant steel spinning forming material tanks, each with an effective volume of 225L and a total capacity of 450L. Combined with the hydraulic-driven spiral blades for forward and reverse stirring, it ensures that the coating is heated and stirred evenly, protecting the best film performance of the coating.

Flexible heating through direct (indirect) connection of gas

Energy-saving and highly efficient gas stoves are adopted, ensuring complete combustion. Equipped with a stove plate height regulator, the heating state can be optimized. An indirect heating system can be optionally equipped. Through a heat transfer oil layer, the reactor body is heated evenly, resulting in higher heating efficiency and better insulation effect.

Precise control of hydraulic stepless stirring

The stirring system is driven by high-quality hydraulic pumps and hydraulic control valves, featuring large torque, stepless speed adjustment, high uniformity of stirring, simple hydraulic control operation and anti-misoperation protection function.

Double-layer insulation and energy-saving structure

It adopts a special double-layer insulation structure, with new insulation materials filled in the interlayer. It has excellent insulation effect, effectively reduces heat loss, significantly saves gas consumption and lowers operating costs.

Optional automatic temperature control and safety system

An optional automatic temperature control system can be equipped to achieve automatic control of heating temperature and ensure the stability of coating quality. Additional optional safety auxiliary devices such as police lights, lighting, and fire extinguishers are available to enhance the safety and convenience of construction.

Compact and lightweight design

The overall weight of the machine is 1600kg, with compact dimensions (1820×1750×1860mm), a lightweight structure, and is convenient for rapid on-site deployment and relocation. It is suitable for the flexible construction needs of medium and small-sized projects.

Basic product parameters

Gain a comprehensive understanding of product information

TT-ZRFS450-I/B gas-fired direct (indirect) heating type hydraulic double-cylinder hot melt pot

The TT-ZRFS450-I/B is a double-cylinder hot melt kettle featuring dual 225L heat-resistant steel material tanks, direct (indirect) gas heating, and hydraulic stepless stirring

unit type

TT-ZRFS450-I/B

Mixing Device Driver

High-quality hydraulic pumps, hydraulic control valves, and hydraulic agitators

heating method

High-efficiency gas stoves provide direct heating

Temperature control mode

Standard manual control (optional)

weight

1600kg

engine

18HP, diesel single-cylinder engine

Bowl Capacity

2×225L (Vertical)

Insulation method

New type of insulation material filled insulation layer

boundary dimension

1820×1750×1860mm

Additional optional device

Automatic temperature control system, safety assistance system (warning light system, lighting system, fire extinguisher holder)

unit type

TT-ZRFS450-I/B

engine

18HP, diesel single-cylinder engine

Mixing Device Driver

High-quality hydraulic pumps, hydraulic control valves, and hydraulic agitators

Bowl Capacity

2×225L (Vertical)

heating method

High-efficiency gas stoves provide direct heating

Insulation method

New type of insulation material filled insulation layer

Temperature control mode

Standard manual control (optional)

boundary dimension

1820×1750×1860mm

weight

1600kg

Additional optional device

Automatic temperature control system, safety assistance system (warning light system, lighting system, fire extinguisher holder)
