TT-SRG-IV multi-functional hand-pushed hot melt road marking machine

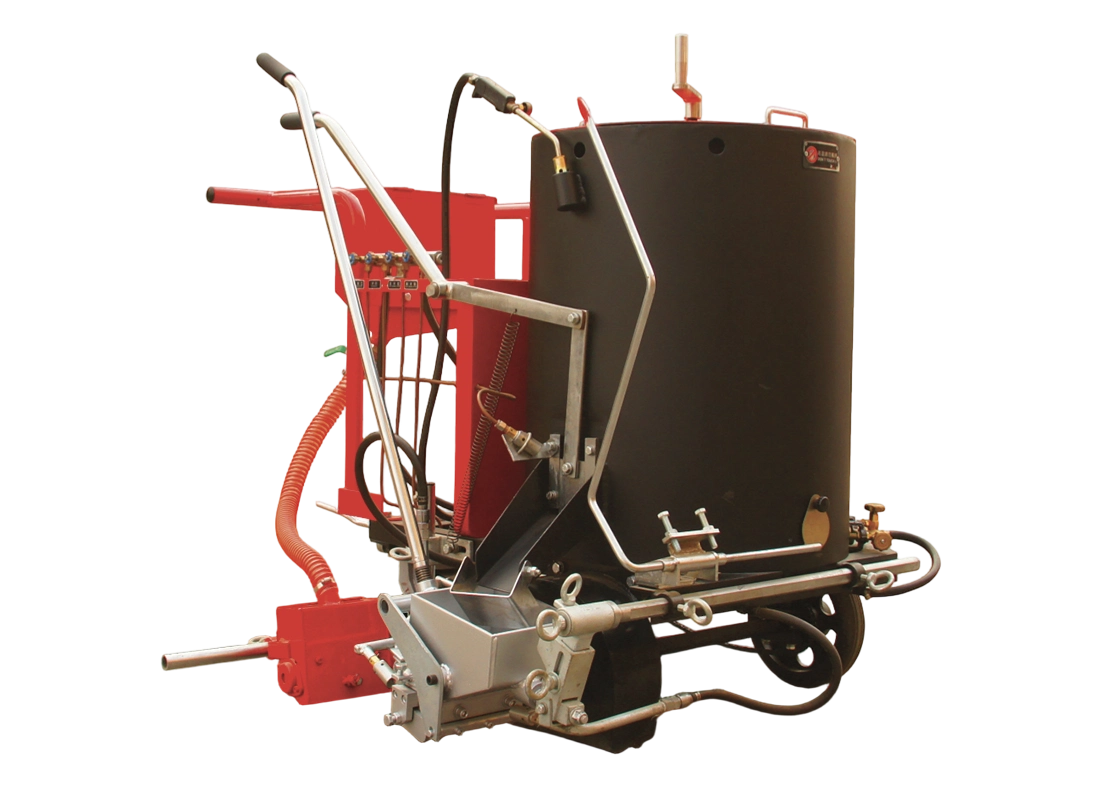

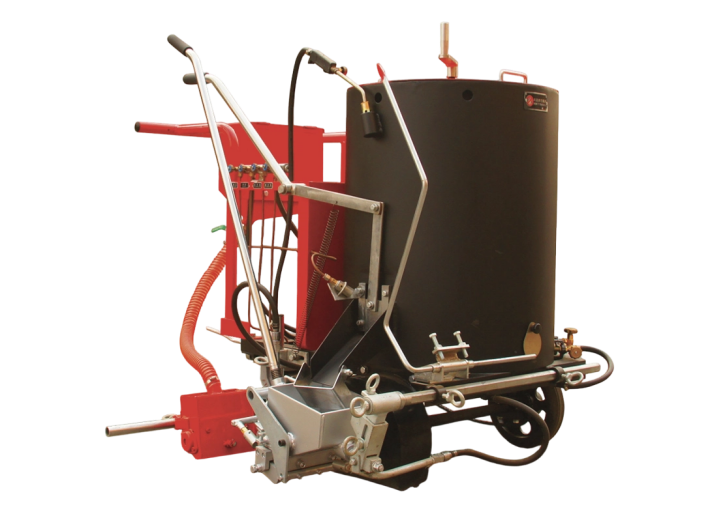

TT-SRG-IV Multi-functional Hand-pushed Hot Melt Road Marking Machine

TT-SRG-Ⅳ is a large-capacity hand-pushed hot melt road marking machine with upgraded capacity, equipped with a special scraping hopper and an efficient heating system. It features high marking quality, energy-saving heating, and stable operation, and is suitable for medium and large-scale road leveling construction operations.

Advantages and Features

Advantages and features

High-capacity and efficient construction

The paint tank has a capacity of 100L and the glass bead box has a capacity of 12L, supporting longer continuous operation, reducing the frequency of material addition, significantly improving construction efficiency, and is suitable for medium and long-distance marking projects.

Professional dressing scraper hopper ensures the quality of the marking lines

The dressing hopper adopts a special heat-resistant one-piece formed bottom knife and a high-strength plate welded warehouse body, equipped with a hard tungsten alloy floor knife and a toothed closed structure, ensuring uniform thickness of the marking lines, straight edges, and neat heads, and stable and reliable construction quality.

High-efficiency and energy-saving heating system

Professional multi-functional and highly efficient stoves are adopted, featuring complete combustion and high thermal efficiency. Combined with a double-layer insulation design, heat loss is effectively reduced, ensuring uniform melting of the coating, achieving energy-saving construction and enhancing the continuity of operations.

Basic product parameters

Gain a comprehensive understanding of product information

TT-SRG-IV多功能型手推式热熔型道路划线机

Tt-srg-iv is a large-capacity hand-pushed hot melt road marking machine with upgraded capacity, equipped with a special scraper hopper and an efficient heating system

model

TT-SRG-Ⅳ

Capacity of glass bead box

12L

tickWidth

Standard configuration: 150mm, 100-450mm (optional)

boundary dimension

1295×970×1160(mm)

Paint can capacity

100L

Heating and heat preservation method

Professional multi-functional and highly efficient stove, with double-layer insulation

Marking line thickness

1.5-3.0mm (adjustable)

weight

220kg

model

TT-SRG-Ⅳ

Paint can capacity

100L

Capacity of glass bead box

12L

Heating and heat preservation method

Professional multi-functional and highly efficient stove, with double-layer insulation

tickWidth

Standard configuration: 150mm, 100-450mm (optional)

Marking line thickness

1.5-3.0mm (adjustable)

boundary dimension

1295×970×1160(mm)

weight

220kg
