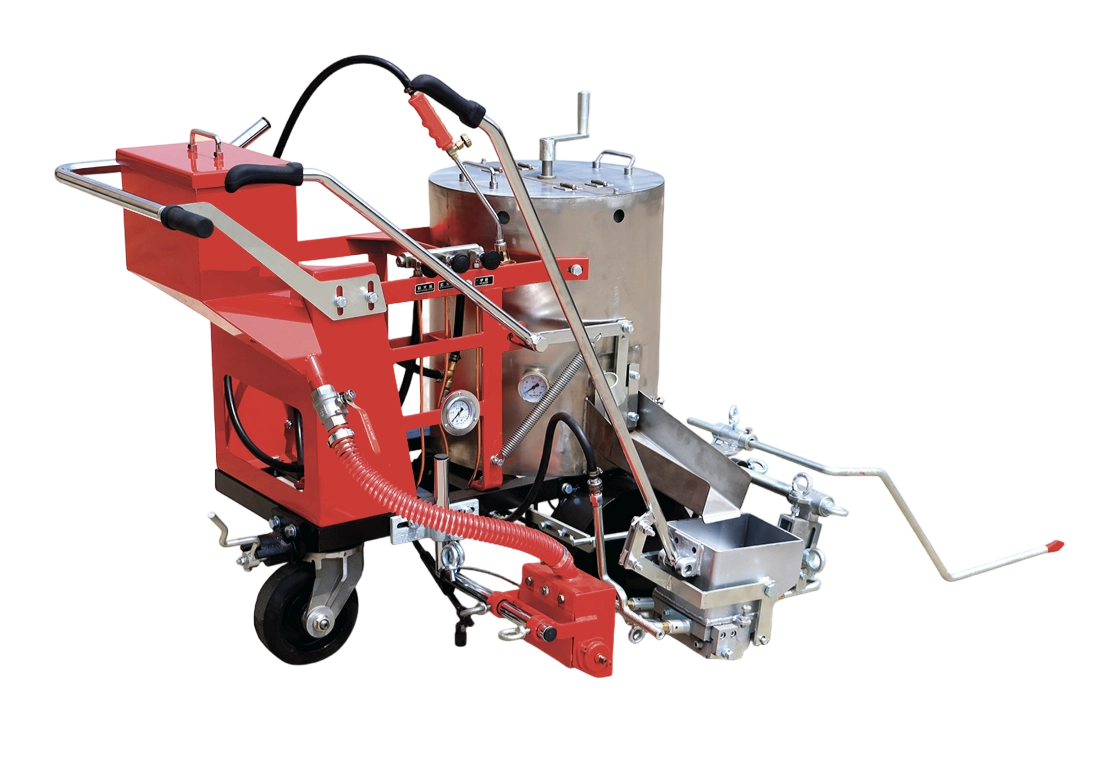

TT-SRG-I hand-pushed hot melt road marking machine

TT-SRG-I is a professional hand-pushed hot melt road marking machine that uses direct-fired gas heating and is equipped with a special scraper hopper. It features high marking quality, efficient heating, and stable operation, and is suitable for medium and small-scale road leveling construction operations.

Advantages and Features

Advantages and features

The special dressing scraping hopper has excellent marking quality

The dressing hopper is made of a special heat-resistant material one-piece formed bottom knife and a high-strength plate welded hopper bin, combined with a hard tungsten alloy ground knife and a toothed structure, ensuring uniform thickness of the marking line, straight edges, tight closure, and stable and reliable construction quality.

Direct-fired high-efficiency heating system

Equipped with energy-saving and highly efficient liquefied gas stoves, it features complete combustion and high thermal efficiency. Combined with a double-layer insulation design, it effectively reduces heat loss, ensures uniform melting of the coating, and enhances the continuity of construction and energy efficiency ratio.

Compact structure and flexible operation

The whole machine weighs 190kg, with compact dimensions (1210×910×970mm), making it easy to move and relocate. It is suitable for construction on narrow or complex sections of road and can be pushed and operated by a single person, offering high flexibility.

Basic product parameters

Gain a comprehensive understanding of product information

TT-SRG-I hand-pushed hot melt road marking machine

TT-SRG-I is a professional hand-pushed hot melt road marking machine that uses direct-fired gas heating and is equipped with a special scraper hopper

model

TT-SRG-I

Capacity of glass bead box

12L

tickWidth

Standard configuration: 150mm, 100-450mm (optional)

boundary dimension

1210×910×970(mm)

Paint can capacity

55L

Heating and heat preservation method

Direct-fired high-efficiency liquefied gas stove with double-layer insulation

Marking line thickness

1.5-3.0mm (adjustable)

weight

190kg

model

TT-SRG-I

Paint can capacity

55L

Capacity of glass bead box

12L

Heating and heat preservation method

Direct-fired high-efficiency liquefied gas stove with double-layer insulation

tickWidth

Standard configuration: 150mm, 100-450mm (optional)

Marking line thickness

1.5-3.0mm (adjustable)

boundary dimension

1210×910×970(mm)

weight

190kg
