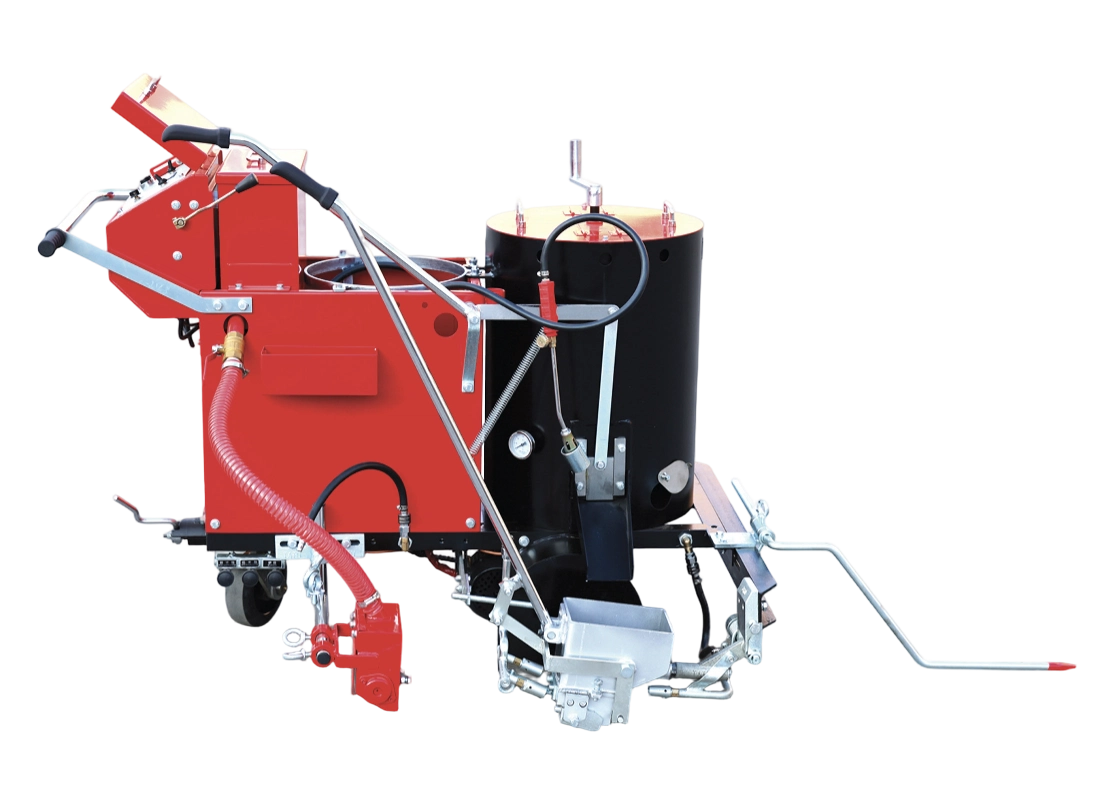

TT-FRG-D Self-propelled Hot Melt Road Marking Machine (Electric Drive Type)

TT-FRG-D self-propelled hot melt road marking machine (electric drive type)

TT-FRG-D is a self-propelled hot melt flat line road marking machine driven by lithium batteries and featuring stepless speed regulation. It is characterized by zero emissions, strong battery life, and convenient operation. At the same time, it retains professional configurations such as a special coating hopper, efficient heating, and synchronous glass bead scattering. It is suitable for long-distance flat line construction with high environmental protection requirements.

Advantages and Features

Advantages and features

Lithium battery-driven is environmentally friendly and highly efficient

It adopts a 48V/40Ah large-capacity lithium battery and an 800W motor, achieving zero emissions and low-noise operation. It can work continuously for 8 hours, meeting the requirements of environmental protection construction and reducing operating costs.

Stepless speed change ensures smooth operation

Equipped with a professional drive axle with a gearbox, it supports 0-4.7km/h stepless speed change and bidirectional driving. The whole machine operates stably, with a maximum climbing ability of 15°, and is suitable for various road conditions.

The dressing hopper adopts a special heat-resistant one-piece formed bottom knife and a high-strength plate welded hopper bin, combined with a hard tungsten alloy floor knife and a toothed structure, to ensure uniform thickness of the marking line, straight edges and tight closure.

High-efficiency heating and insulation system

Equipped with energy-saving direct-fired gas stoves, it features complete combustion and high thermal efficiency. The double-layer insulation design reduces heat loss, ensuring uniform coating melting and continuous construction.

Synchronous glass bead scattering system

The glass bead scattering system is synchronously driven with the hopper discharge, with adjustable scattering volume and uniform distribution, effectively enhancing the reflective performance and durability of the marking lines at night.

The lightweight design makes operation convenient

The whole machine weighs only 200kg, has a compact structure (1420×950×1020mm), is flexible to move and transfer, and can be operated by a single person, significantly reducing labor intensity and improving construction efficiency.

Basic product parameters

Gain a comprehensive understanding of product information

TT-FRG-D Self-propelled Hot Melt Road Marking Machine (Electric Drive Type)

TT-FRG-D is a self-propelled hot melt flat line road marking machine driven by lithium batteries and featuring stepless speed regulation

unit type

TT-FRG-D

motor power

800W

actuating speed

0-4.7km/h

Marking method

Hot-melt scraping and smoothing the line

Capacity of glass bead box

14L

tickWidth

150 (standard configuration), 100-450mm (optional)

boundary dimension

1420×950×1020(mm)

battery capacity

Lithium battery: 48V, 40Ah

drive axle

The gearbox drive axle provides professional technical support for the speed of marking operations

maximum gradeability

15°

Bowl Capacity

65L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

Marking line thickness

1.2-3.0mm (adjustable)

weight

200kg

unit type

TT-FRG-D

battery capacity

Lithium battery: 48V, 40Ah

motor power

800W

drive axle

The gearbox drive axle provides professional technical support for the speed of marking operations

actuating speed

0-4.7km/h

maximum gradeability

15°

Marking method

Hot-melt scraping and smoothing the line

Bowl Capacity

65L

Capacity of glass bead box

14L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

tickWidth

150 (standard configuration), 100-450mm (optional)

Marking line thickness

1.2-3.0mm (adjustable)

boundary dimension

1420×950×1020(mm)

weight

200kg
