WELL-ROAD

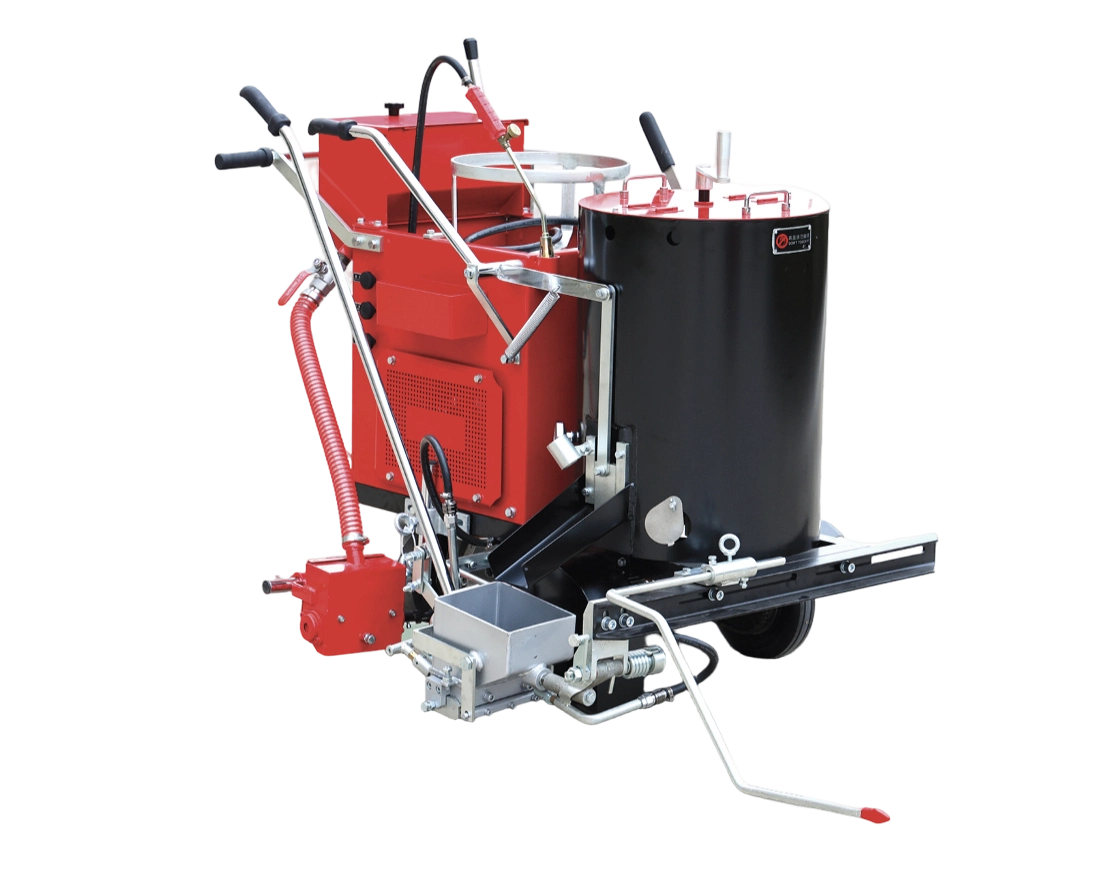

TT-FRG-I Self-propelled Hot Melt Road Marking Machine (Fuel-driven type)

TT-FRG-I self-propelled hot melt road marking machine (fuel-driven)

TT-FRG-I is a fuel-driven, stepless speed change self-propelled hot melt flat line road marking machine, equipped with a special scraper hopper and an efficient gas heating system. It features effortless operation, high marking quality, uniform glass bead scattering, and smooth movement. It is suitable for long-distance continuous flat line construction operations.

Advantages and Features

Advantages and features

Stepless variable speed self-drive, highly efficient and labor-saving

It adopts an imported continuously variable transmission, enabling bidirectional uniform speed travel from 0 to 4km/h for forward movement and from 0 to 3.2km/h for backward movement. This can significantly reduce the labor intensity of operators, enhance the efficiency of long-distance construction, and decrease human input.

The special dressing scraping hopper has excellent marking quality

The dressing hopper adopts a special heat-resistant one-piece formed bottom knife and a high-strength plate welded hopper bin, combined with a hard tungsten alloy floor knife and a toothed knife bottom structure, ensuring uniform thickness of the marking lines, straight edges, and tight closure without material leakage.

Direct-fired high-efficiency heating, energy-saving and reliable

Equipped with energy-saving and highly efficient gas stoves, it features complete combustion and high heating efficiency. The double-layer insulation design reduces heat loss, ensuring uniform melting of the coating and enhancing the continuity of construction and quality stability.

Variable glass bead synchronous scattering system

The glass bead scattering system and the hopper discharge system are driven synchronously, with adjustable scattering volume to ensure uniform distribution of glass beads and enhance the reflective performance and durability of the marking lines at night.

Comfortable control and smooth walking design

It adopts specially made wear-resistant and heat-resistant wheels and stamped rims, which are heat-resistant, wear-resistant and do not deform. The rear tail wheel can be locked to ensure smooth straight-line movement of the equipment and easy and effortless operation.

Compact structure and strong adaptability

The whole machine weighs 250kg, has a compact shape (1350×930×1130mm), a maximum climbing ability of 15°, and can adapt to various road slopes and working conditions. It is flexible and convenient for relocation and construction.

Basic product parameters

Gain a comprehensive understanding of product information

TT-FRG-I Self-propelled Hot Melt Road Marking Machine (Fuel-driven type)

TT-FRG-I is a self-propelled hot melt flat line road marking machine driven by fuel and with stepless speed change

unit type

TT-FRG-I

driving system

Imported continuously variable

maximum gradeability

15°

Bowl Capacity

65L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

Marking line thickness

1.2-3.0mm (adjustable)

weight

250kg

engine power

6HP

actuating speed

Advance 0-4km/h, retreat 0-3.2km/h

Marking method

Hot-melt scraping and smoothing the line

Capacity of glass bead box

14L

tickWidth

150 (standard configuration), 100-450mm (optional)

boundary dimension

1350×930×1130(mm)

unit type

TT-FRG-I

engine power

6HP

driving system

Imported continuously variable

actuating speed

Advance 0-4km/h, retreat 0-3.2km/h

maximum gradeability

15°

Marking method

Hot-melt scraping and smoothing the line

Bowl Capacity

65L

Capacity of glass bead box

14L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

tickWidth

150 (standard configuration), 100-450mm (optional)

Marking line thickness

1.2-3.0mm (adjustable)

boundary dimension

1350×930×1130(mm)

weight

250kg
