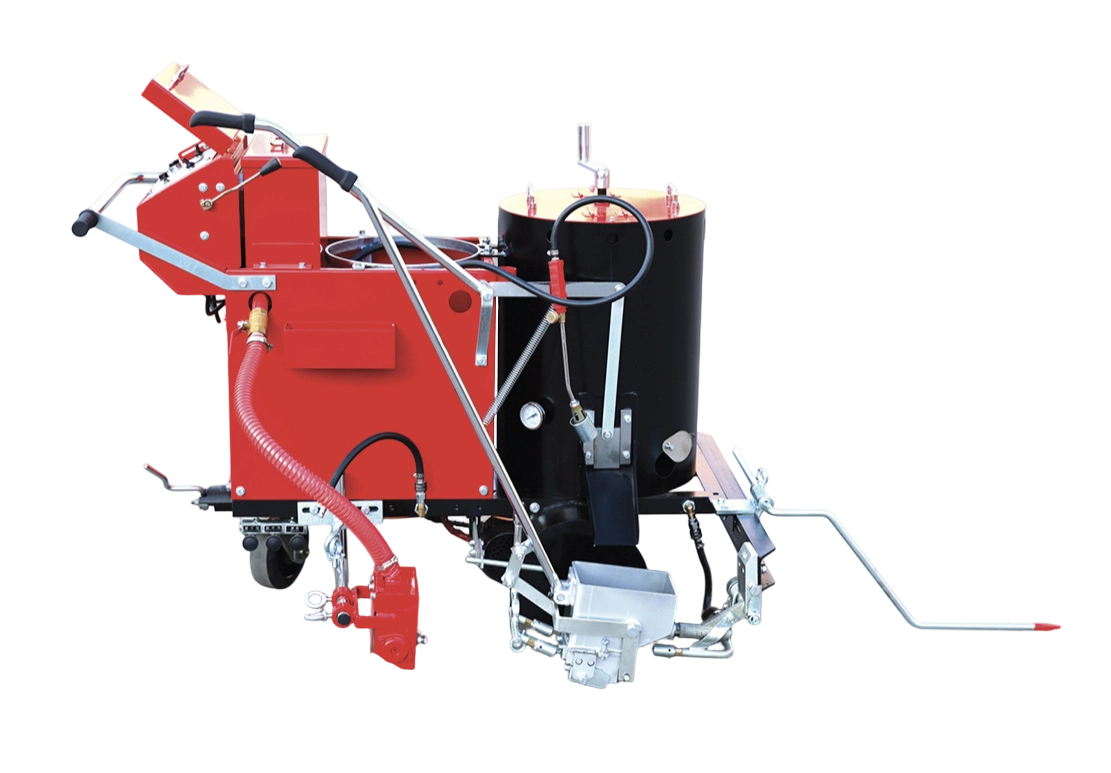

TT-FR/ZG-D Self-propelled Hot melt oscillating Road Marking Machine (Electric Drive Type)

TT-FR/ZG-D self-propelled hot melt shock road marking machine (electric drive type)

The TT-FR/ZG-D is a self-propelled hot melt oscillating road marking machine that adopts electric stepless speed change drive, is equipped with a special oscillating hopper and an intelligent control system. It features zero emissions, low noise, efficient construction and excellent marking quality, and is suitable for road marking operations with high environmental protection requirements.

Advantages and Features

Advantages and features

Electric stepless speed change, zero-emission operation

It is driven by a high-performance lithium battery (48V/40Ah) and an 800W motor, achieving stepless speed change from 0 to 4.7km/h for bidirectional uniform travel. The operation process is zero-emission, low-noise, and can work continuously for 8 hours, which is environmentally friendly and energy-saving.

Professional drive axle design, stable and efficient

Equipped with a professional drive axle with a gearbox, it provides stable power and speed guarantee for marking operations. With a maximum climbing ability of 15°, it is suitable for various road conditions and runs smoothly.

The special vibrating hopper has excellent marking quality

The oscillating hopper adopts a special heat-resistant one-piece formed bottom knife and a high-strength plate welded hopper bin, combined with a hard tungsten alloy floor knife and a toothed knife bottom structure, ensuring that the marking lines have three-dimensional edges and corners, uniform thickness, straight edges, and tight closure.

Direct-fired high-efficiency heating, energy-saving and reliable

Equipped with energy-saving and highly efficient gas stoves, it features complete combustion and high heating efficiency. It adopts a double-layer insulation design to reduce heat loss, ensure uniform melting of the coating, and enhance the continuity of construction.

Lightweight and compact design, flexible operation

The whole machine weighs only 200kg, with compact dimensions (1420×950×1020mm), making it convenient to move and relocate. It can be operated by a single person, significantly reducing labor input and enhancing construction flexibility.

Basic product parameters

Gain a comprehensive understanding of product information

TT-FR/ZG-D Self-propelled Hot melt oscillating Road Marking Machine (Electric Drive Type)

unit type

TT-FR/ZG-D

motor power

800W

actuating speed

0-4.7km/h

Marking method

Hot-melt scraping and applying oscillating lines and flat lines

Capacity of glass bead box

14L

tickWidth

The standard 150 mm optional level: 100/200/250/300/500/400/450

boundary dimension

1420×950×1020(mm)

match

Gas infrared stoves, Type III fuel injection stoves

battery capacity

Lithium battery: 48V, 40Ah

drive axle

The gearbox drive axle provides professional technical support for the speed of marking operations

maximum gradeability

15°

Bowl Capacity

65L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

Marking line thickness

Bottom line (flat line) 1.2-3.0 (adjustable) Oscillation line 5-9 (optional)

weight

200kg

unit type

TT-FR/ZG-D

battery capacity

Lithium battery: 48V, 40Ah

motor power

800W

drive axle

The gearbox drive axle provides professional technical support for the speed of marking operations

actuating speed

0-4.7km/h

maximum gradeability

15°

Marking method

Hot-melt scraping and applying oscillating lines and flat lines

Bowl Capacity

65L

Capacity of glass bead box

14L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

tickWidth

The standard 150 mm optional level: 100/200/250/300/500/400/450

Marking line thickness

Bottom line (flat line) 1.2-3.0 (adjustable) Oscillation line 5-9 (optional)

boundary dimension

1420×950×1020(mm)

weight

200kg

match

Gas infrared stoves, Type III fuel injection stoves
