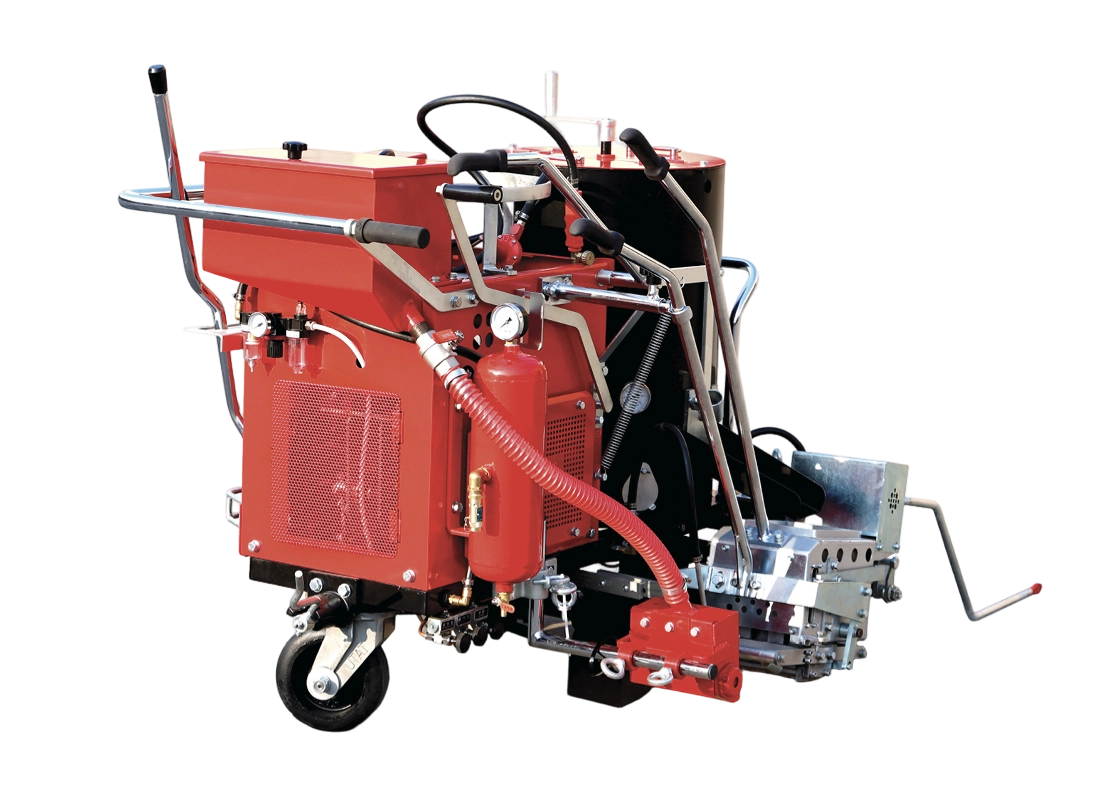

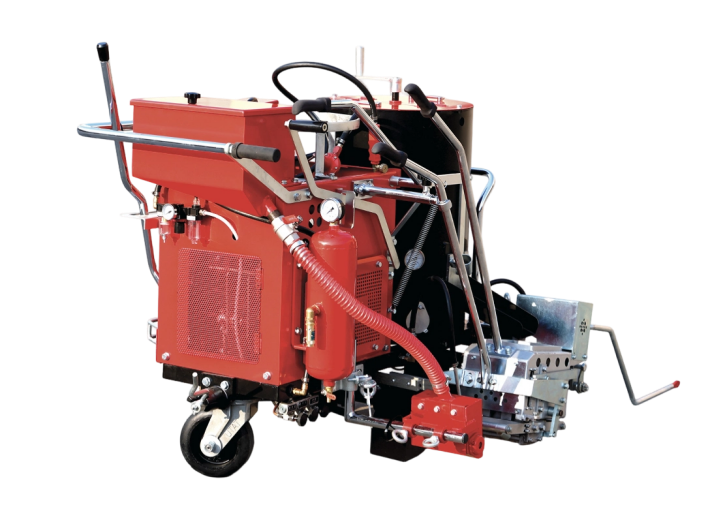

TT-FR/ZG-I Self-propelled Hot melt oscillating Road Marking Machine (Fuel-driven type)

TT-FR/ZG-I Self-propelled Hot-melt Oscillating Road Marking Machine (Fuel-powered)

Within the speed range of 0 to 4km/h, it can achieve bidirectional uniform self-drive, significantly reducing the labor intensity of the operator, improving construction efficiency, effectively reducing the human input in construction, and is suitable for continuous marking operations over longer distances.

Advantages and Features

Advantages and features

Stepless speed change drive

Special vibrating hopper

The bottom knife of the hopper is integrally formed with special heat-resistant materials, and the hopper bin is welded with high-strength plates, featuring high-temperature resistance, anti-deformation, strong heat conduction and high heat preservation. It adopts hard tungsten alloy floor knives and professional high-temperature resistant anti-deformation forming knives, which have the advantages of wear resistance, heat resistance, non-stick material, anti-deformation and easy adjustment. The toothed knife bottom structure is tightly closed without material leakage. The marked lines have the characteristics of three-dimensional edges and corners, uniform thickness, straight edges and neat heads.

Direct-fired gas heating system

Adopting energy-saving and high-efficiency gas stoves, compared with ordinary gas stoves, can make liquefied gas burn more fully, save fuel and effectively improve heating efficiency.

Precision intelligent control system

The control system adopts a programmable digital display controller, combined with high-sensitivity encoders, solenoid valves and other electronic control units, to automatically control the protrusion length and protrusion spacing of the oscillation marking lines according to the set line type. The required line type can also be set according to the construction needs.

Basic product parameters

Gain a comprehensive understanding of the product parameters

TT-FR/ZG-I Self-propelled Hot melt oscillating Road Marking Machine (Fuel-driven type)

unit type

TT-FR/ZG-I

Air compressor displacement

0.16m3/min

actuating speed

Advance 0-4km/h, retreat 0-3.2km/h

Marking method

Hot-melt scraping and applying oscillating lines and flat lines

Capacity of glass bead box

14L

tickWidth

The standard 150 mm optional level: 100/200/250/300/500/400/450

boundary dimension

1350×950×1130(mm)

match

Gas infrared stoves, Type III fuel injection stoves

engine power

6HP

driving system

Imported continuously variable transmission

maximum gradeability

15°

Bowl Capacity

65L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

Marking line thickness

Bottom line (flat line) 1.2-3.0 (adjustable) Oscillation line 5-9 (optional)

weight

280kg

unit type

TT-FR/ZG-I

engine power

6HP

Air compressor displacement

0.16m3/min

driving system

Imported continuously variable transmission

actuating speed

Advance 0-4km/h, retreat 0-3.2km/h

maximum gradeability

15°

Marking method

Hot-melt scraping and applying oscillating lines and flat lines

Bowl Capacity

65L

Capacity of glass bead box

14L

heating method

Direct-fired high-efficiency energy-saving stove, double-layer insulation

tickWidth

The standard 150 mm optional level: 100/200/250/300/500/400/450

Marking line thickness

Bottom line (flat line) 1.2-3.0 (adjustable) Oscillation line 5-9 (optional)

boundary dimension

1350×950×1130(mm)

weight

280kg

match

Gas infrared stoves, Type III fuel injection stoves

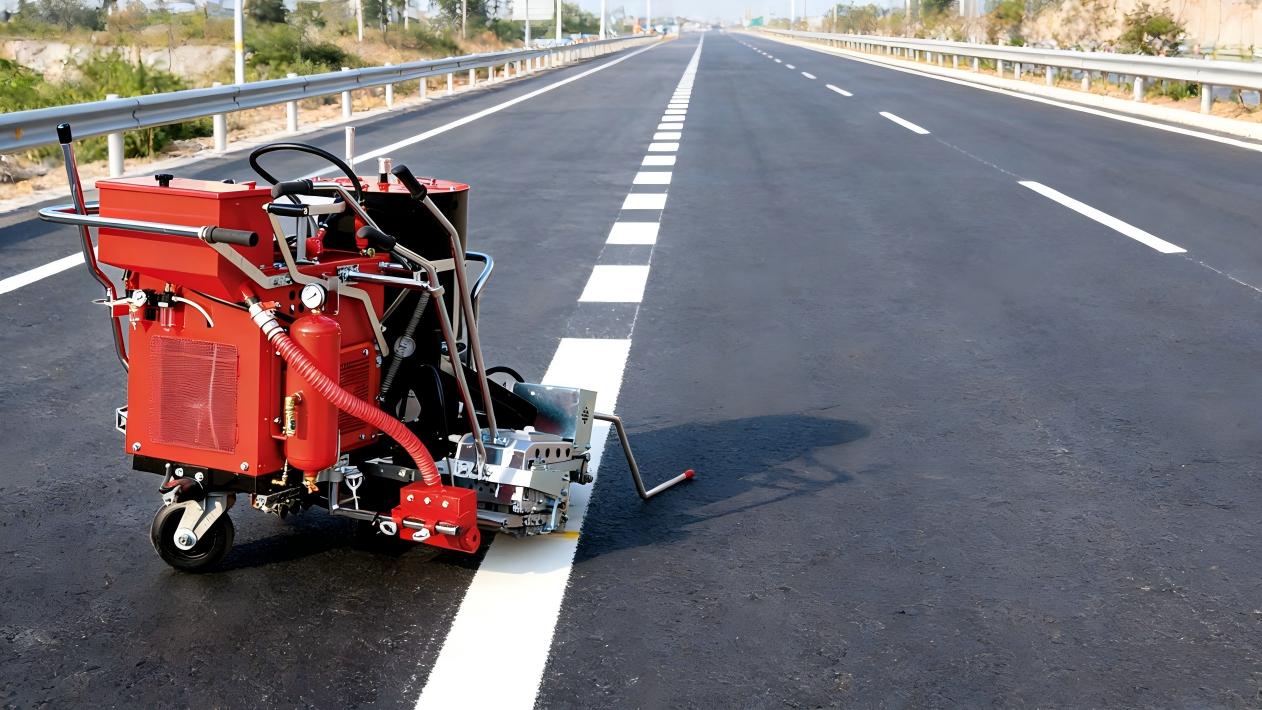

Application scenarios
