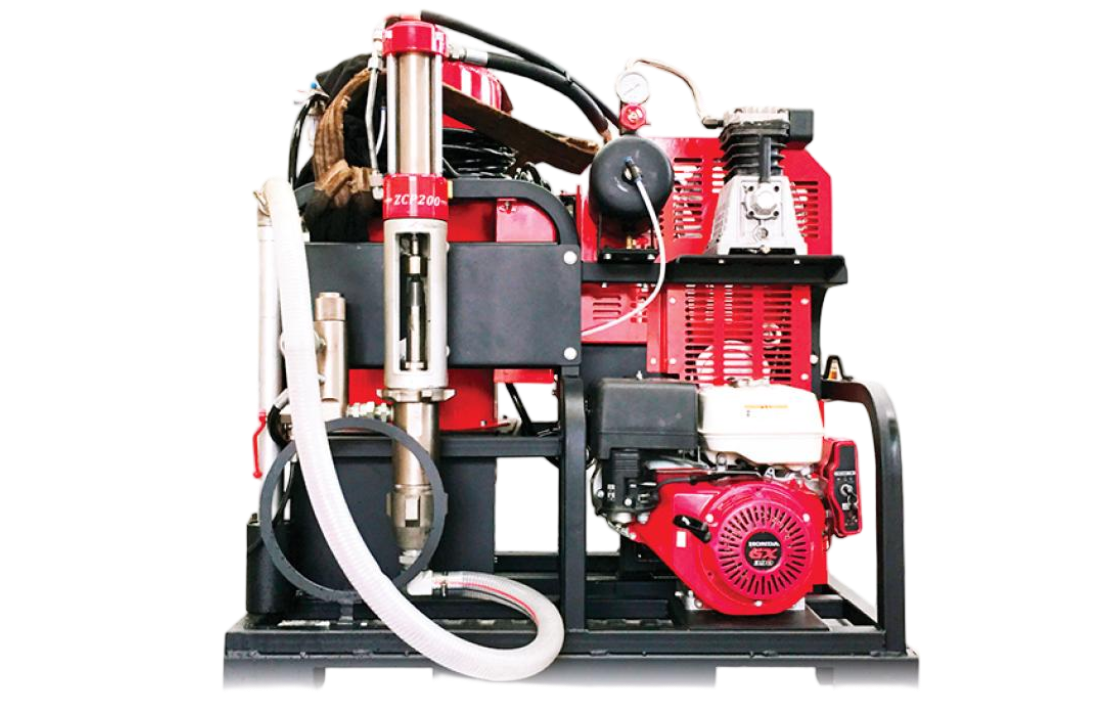

TT-ZCP200 Single Pump Road Marking Machine for Vehicle

TT-ZCP200 Mobile Ambient Temperature Line Marking Machine features an intelligent operating system, enabling precise line control via a control box and programmable microcomputer. Line patterns can be selected or input as required. The high-pressure airless spraying system employs a 20L/min imported ultra-wear-resistant plunger pump with adjustable pressure from 0–25Mpa, accommodating diverse coatings and line specifications. The variable-displacement pump + hydraulic cylinder drive ensures stable and reliable operation, capable of spraying two-component 1:1 coatings. The equipment employs an independently integrated electronic control system, enabling one-touch line pattern switching. Its adjustable steering mechanism offers light and agile manoeuvrability, while the pneumatic glass bead application ensures more uniform distribution and superior adhesion. Beyond its single-pump, single-spray-gun configuration, this machine shares all other advantages with the TT-ZCP400 model.

Advantages and Features

Advantages and features

Intelligent operating system, linear precision and controllability

The machine's marking operations are centralised within the control box, utilising a programmable microcomputer module at its core. This enables precise selection or input of line patterns according to construction standards, delivering high control accuracy with straightforward, intuitive operation.

High-pressure airless spraying, with stable power output and broad compatibility.

Equipped with a 20L/min imported ultra-wear-resistant plunger pump, pressure adjustable from 0–25MPa to accommodate varying coating types, line thicknesses and width requirements; variable displacement pump integrated with automatic reciprocating hydraulic cylinder delivers continuous, stable power, enabling conversion for spraying two-component 1:1 coatings. The TT-ZCP200 features a single pump and single pneumatic spray gun configuration, with all other performance specifications identical to the TT-ZCP400.

Integrated electronic control + steering + spray application, ensuring efficient and high-quality construction.

The electrical system employs an independently integrated control unit, featuring compact dimensions, clear labelling and user-friendly operation, enabling one-touch switching between line patterns. The adjustable steering mechanism delivers swift response, lightweight construction and straightforward installation. The pneumatic glass bead spraying system achieves more uniform distribution and superior adhesion compared to conventional rolling spreaders, significantly enhancing line reflectivity and construction quality.

Basic product parameters

Comprehensively understand product specifications

TT-ZCP200 Vehicle-Mounted Single-Pump Ambient Temperature Road Marking Machine

The TT-ZCP200 vehicle-mounted ambient temperature line marking machine features an intelligent operating system. Through its control box and programmable microcomputer, it enables precise line marking control, allowing users to select or input line patterns as required.

engine

13.0HP

Suitable coating types

Solvent-based at ambient temperature, water-based

Paint pump

Single-unit "Great road" automatic reciprocating plunger pump

Number of spray guns

2 pneumatic spray guns, 1 manual spray gun (fitted with reverse decontamination nozzle)

Paint Can Capacity

100L×1

External dimensions

1150×1290×1410mm

Power source

Hydraulic power

Marking method

High-pressure airless spraying

Pump flow rate

20L/min×1

Glass bead jar capacity

50L

Line width

50–600 mm (adjustable)

Weight

650kg

engine

13.0HP

Power source

Hydraulic power

Suitable coating types

Solvent-based at ambient temperature, water-based

Marking method

High-pressure airless spraying

Paint pump

Single-unit "Great road" automatic reciprocating plunger pump

Pump flow rate

20L/min×1

Number of spray guns

2 pneumatic spray guns, 1 manual spray gun (fitted with reverse decontamination nozzle)

Glass bead jar capacity

50L

Paint Can Capacity

100L×1

Line width

50–600 mm (adjustable)

External dimensions

1150×1290×1410mm

Weight

650kg
