WR-TCZ100 Vehicle-mounted Traffic Cone Automatic Retractable Machine - Modular Semi-automatic road Cone Retractable equipment -WELL-ROAD

WR-TCZ100 Vehicle-mounted traffic cone automatic retraction and placement machine

WR-TCZ100

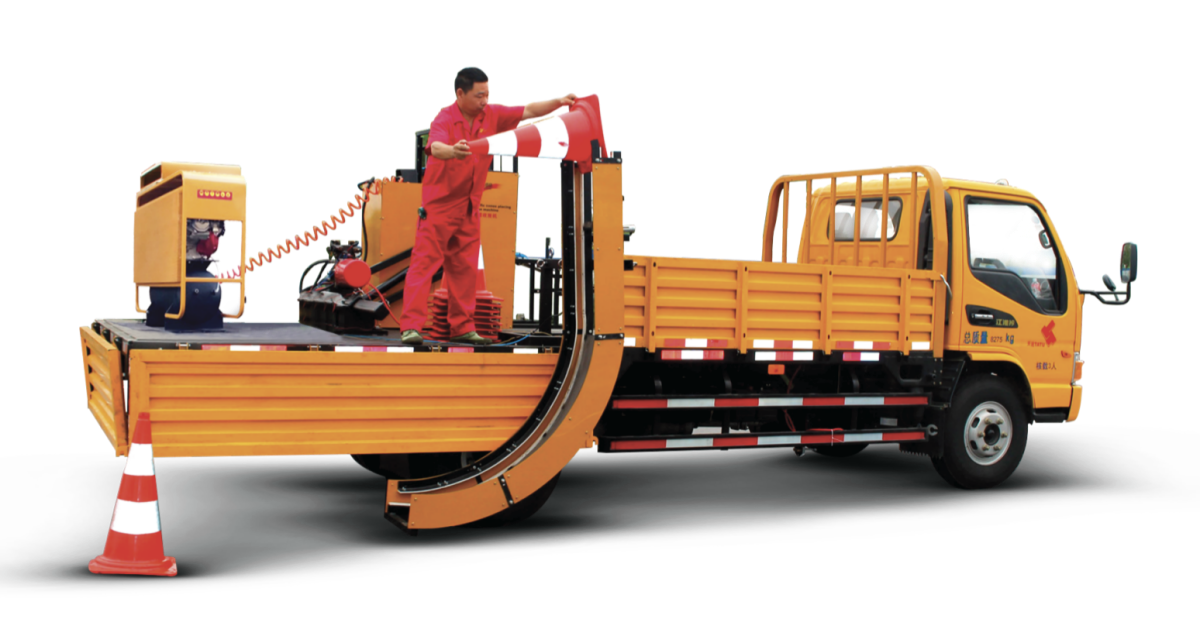

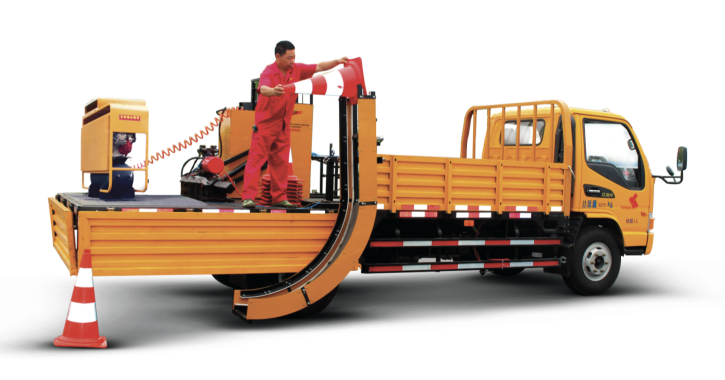

The WR-TCZ100 vehicle-mounted traffic cone automatic retraction and placement machine is a modular semi-automated device that can be installed on users' own light trucks. It supports vertical storage cones (up to 100) and automatic spacing control. It features easy disassembly and assembly, safe and efficient operation, and is suitable for temporary road construction and traffic control.

Advantages and Features

Advantages and features

Modular design, flexible disassembly and assembly

It adopts a modular structure, which can be quickly installed or disassembled on the user's own light-duty cargo vehicle without occupying a dedicated chassis, significantly improving the vehicle's utilization efficiency and reducing equipment investment costs.

Semi-automated operation, highly efficient and labor-saving

The cone laying and cone retraction operations are carried out by a single operator. The cone spacing can be automatically controlled according to the set parameters. Compared with the traditional manual method, it is more efficient, neat and reduces the labor intensity.

Vertical storage cone structure, compact and convenient

It adopts a vertical storage cone design, with a maximum capacity of 100 cones (adjustable according to vehicle conditions). The structure is compact, facilitating the orderly storage and quick retrieval of cones and barrels within the limited space of the vehicle compartment.

Active warning lighting enhances work safety

Equipped with high-brightness traffic warning lights and LED guide lights, it can actively guide passing vehicles to pay attention to giving way, effectively enhancing operational safety in construction work environments.

Strong adaptability and wide compatibility with vehicles

It is recommended to be compatible with the chassis of light trucks such as Jianghuai Weiling, with an installed power of only 14kw (including hydraulic and pneumatic systems). It has low requirements for vehicle modification and can meet the installation needs of various users' own models.

Economical and practical, reducing the overall cost

There is no need to purchase dedicated vehicles. Construction can be quickly carried out by using existing transport vehicles. The equipment has low power consumption and fuel consumption, significantly reducing the user's investment in road safety facilities and operating costs.

Basic product parameters

Gain a comprehensive understanding of product information

WR-TCZ100 Vehicle-mounted traffic cone automatic retraction and placement machine

The WR-TCZ100 vehicle-mounted traffic cone automatic pick-up and drop-off machine is a modular semi-automated device that can be installed on users' own light trucks

Maximum storage cone capacity

Vertical storage cones, 100 (or as determined by the vehicle's own conditions)

installed power

14kw, including hydraulic and pneumatic systems

Release/recovery speed

5km/h

Total Weight

10000kg

operating personnel

Two people, one driving and the other disposing or collecting

Chassis model (Recommended

Jianghuai Weiling HFC1081KR1T

boundary dimension

6880×2200×3300mm

Maximum storage cone capacity

Vertical storage cones, 100 (or as determined by the vehicle's own conditions)

operating personnel

Two people, one driving and the other disposing or collecting

installed power

14kw, including hydraulic and pneumatic systems

Chassis model (Recommended

Jianghuai Weiling HFC1081KR1T

Release/recovery speed

5km/h

boundary dimension

6880×2200×3300mm

Total Weight

10000kg
