WRD5161THX Road Marking Vehicle

WRD5161THX

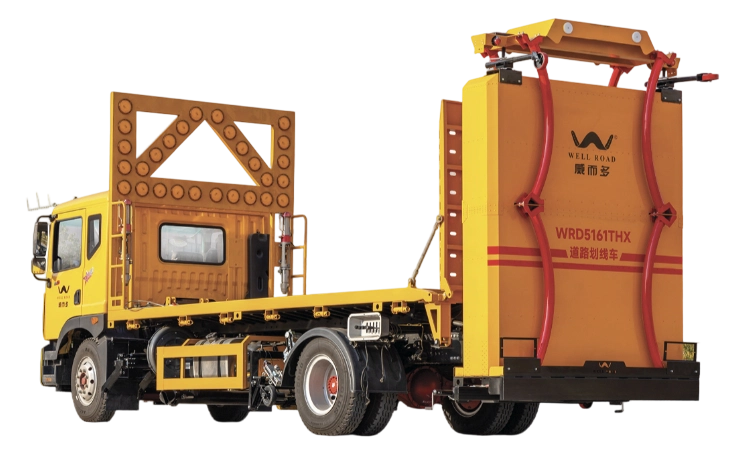

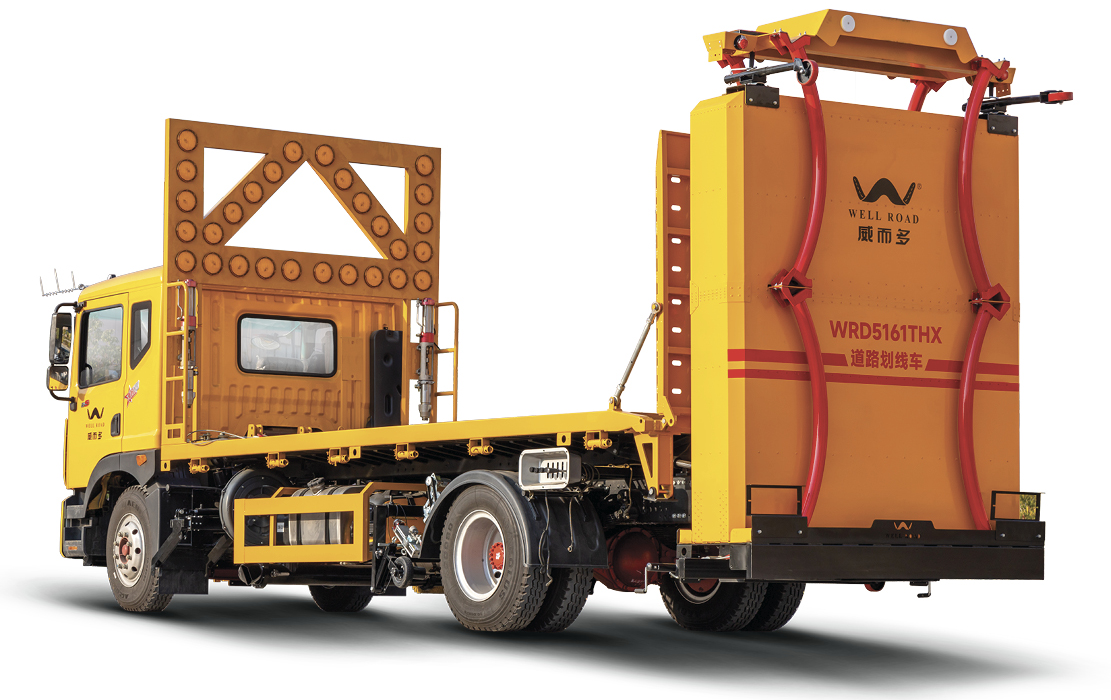

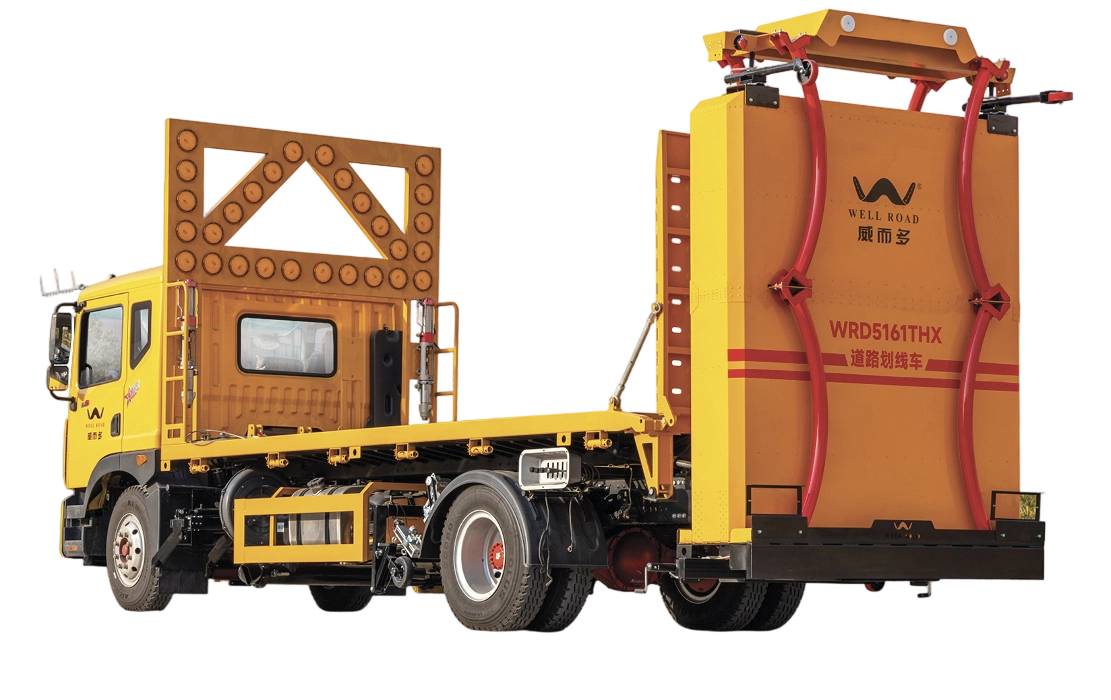

The WRD5161THX road marking vehicle is a multifunctional, intelligent construction vehicle that integrates functions such as line marking machine transport, collision buffering, road surface cleaning, and paint spraying. It can significantly improve construction efficiency and safety, enabling single-person on-vehicle operation, and is suitable for modern road construction using a variety of marking materials.

Advantages and Features

Advantages and features

Integrated functionality, multiple uses in one vehicle

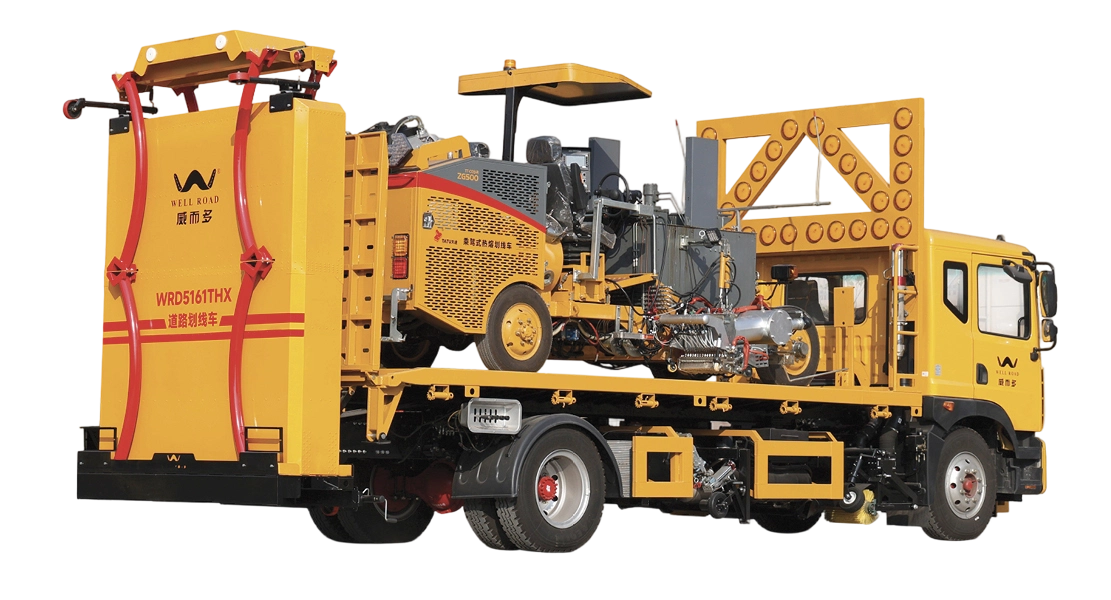

This vehicle can not only quickly load, unload, and transport ride-on line marking machines, but it can also switch to various functions such as a collision-buffer vehicle, traffic cone deployment and retrieval vehicle, road sweeping vehicle, and paint/primer spraying vehicle with one button according to construction needs. Both sides are equipped with spraying, sweeping, and marking capabilities, greatly reducing equipment investment and transportation frequency.

Intelligent control, flexible and efficient construction

Using a fully intelligent control system, it supports quick switching between multiple functions without the need for ground personnel assistance. The driver can complete all operations inside the vehicle, greatly improving operational efficiency and transition flexibility, with a construction speed of 0-10 km/h.

Construction safety protection is prominent

Equipped with 100K-grade foldable full aluminum alloy crash blocks, supporting quick installation or folding within minutes, paired with high-brightness LED flashing arrow lights, significantly enhancing construction site protection. Most operations are completed on the vehicle, reducing personnel on the road and lowering the risk of traffic accidents.

Precise Spraying and Intelligent Line Marking Control

Equipped with dual imported high-pressure airless spray pumps, it supports spraying operations of ambient temperature/water-based/two-component coatings and primers, with the marking width adjustable between 50-500mm. The intelligent control system supports one-touch setting of line shapes and parameters, enabling precise construction of various markings such as solid lines and dashed lines.

Stable carrying capacity and rapid transition

Based on the Dongfeng chassis structure, with a curb weight of 10.6 tons and a maximum towing capacity of 6.2 tons, it features hydraulic flatbed sliding, tilting, and tailboard folding functions, enabling smooth loading and unloading and equipment transportation, meeting the needs of multiple on-site working conditions.

Strong adaptability to construction environments

Equipped with dual-side hydraulic cleaning devices, it can efficiently clean floating dust, stones, and other debris on the work surface, improving the adhesion between markings and the road surface, and adapting to various road conditions. It also supports the spraying of primer for thermoplastic markings, further enhancing the adhesion performance of the markings.

Basic product parameters

Comprehensive understanding of product information

WRD5161THX Road Marking Vehicle

The WRD5261THX road marking vehicle is a large road marking equipment that meets international industry standards.

Product Model

WRD5161THX

Engine power

147KW

Curb weight

16200kg

Number of passengers allowed in the cab

3 (with sleeper)

Material feeding device

The dual paired import melt conveying pump can achieve fully enclosed and fully insulated melt pressing on both the left and right sides, and the conveying pressure and flow can be freely controlled.

Spraying method and width

High-pressure airless spraying of normal temperature/water-based/two-component coatings and primers, with a spraying width of 50-500mm (adjustable)

Marking method

Ambient temperature/water-based/two-component marking spray, hot-melt marking primer spray

Construction speed

0-10km/h

Chassis Model

Dongfeng EQ1165LJ9CDE

Wheelbase

5300mm

Dimensions

9800×2500×3920mm

Type and Grade of Collision Blocks

First-level foldable all-aluminum alloy collision block, collision resistance level is 100K

Marking device

Dual 20L/min high-pressure airless piston spray pump, capable of double-sided line marking or spraying primer

Underlining method

Room temperature/water-based/two-component coatings and primers spraying

Flatbed Towing Mass

6200kg

Product Model

WRD5161THX

Chassis Model

Dongfeng EQ1165LJ9CDE

Engine power

147KW

Wheelbase

5300mm

Curb weight

16200kg

Dimensions

9800×2500×3920mm

Number of passengers allowed in the cab

3 (with sleeper)

Type and Grade of Collision Blocks

First-level foldable all-aluminum alloy collision block, collision resistance level is 100K

Material feeding device

The dual paired import melt conveying pump can achieve fully enclosed and fully insulated melt pressing on both the left and right sides, and the conveying pressure and flow can be freely controlled.

Marking device

Dual 20L/min high-pressure airless piston spray pump, capable of double-sided line marking or spraying primer

Spraying method and width

High-pressure airless spraying of normal temperature/water-based/two-component coatings and primers, with a spraying width of 50-500mm (adjustable)

Underlining method

Room temperature/water-based/two-component coatings and primers spraying

Marking method

Ambient temperature/water-based/two-component marking spray, hot-melt marking primer spray

Flatbed Towing Mass

6200kg

Construction speed

0-10km/h
