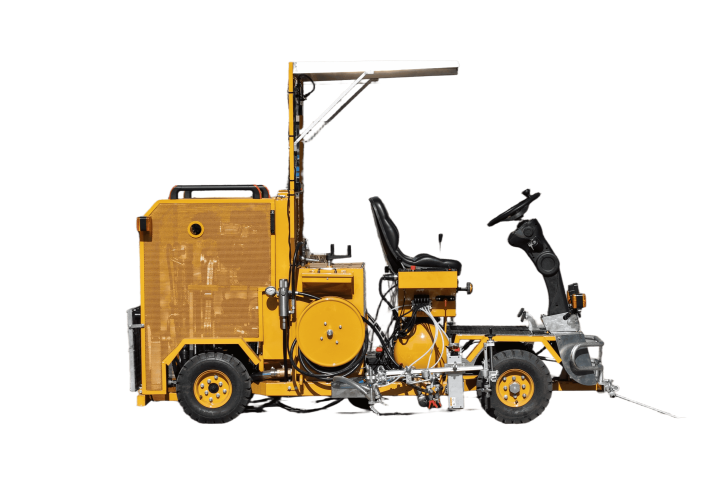

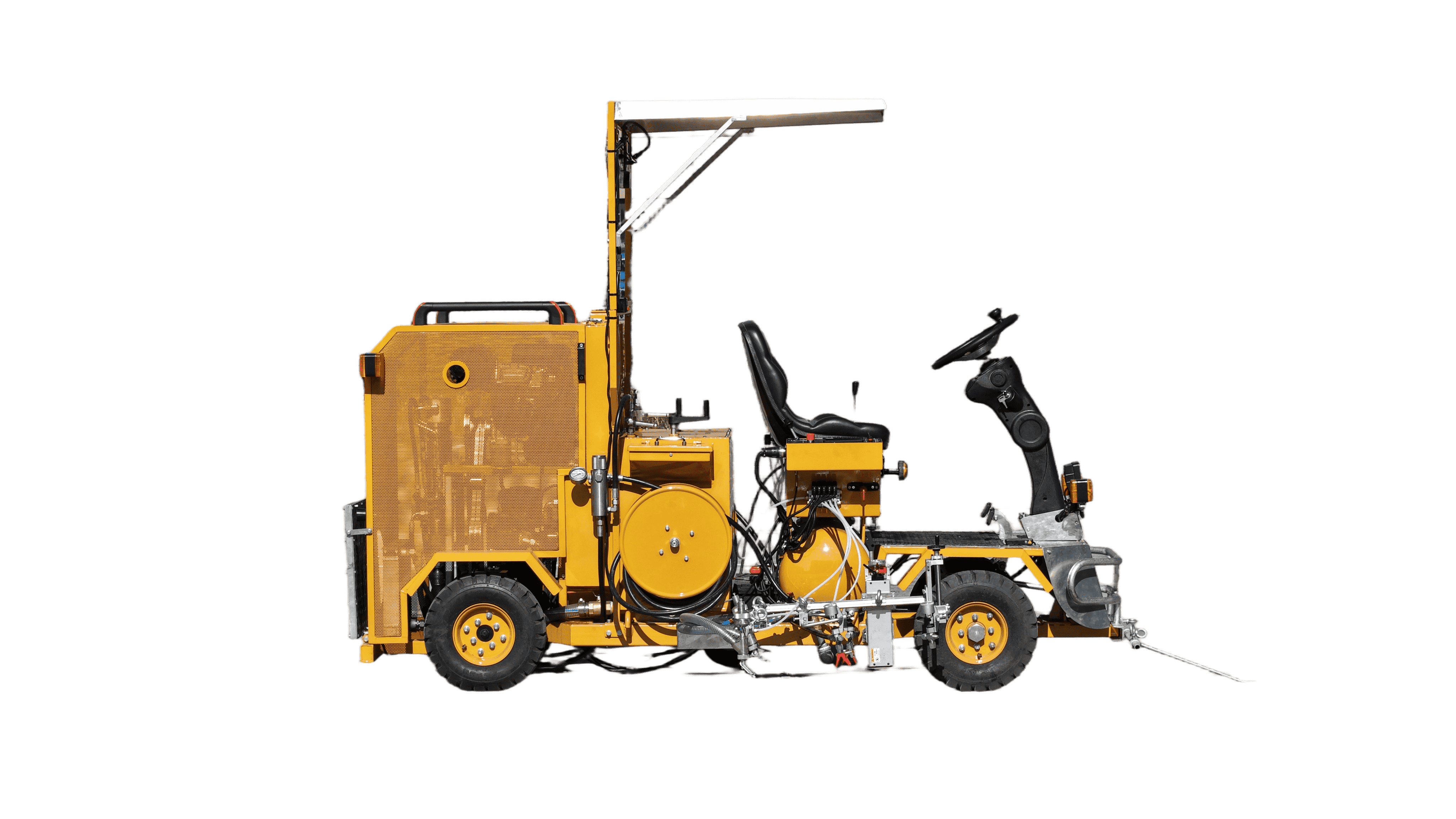

TT‑C01‑CP200 Dual‑Pump Airless Road Marking Machine

TT‑C01‑CP200 Two‑Component (Ambient Temperature) Ride‑on Road Marking Machine

TT-C01-CP200

The TT‑C01‑CP200 road marking machine is powered by 18HP/20HP, with a total weight of 780Kg and overall dimensions of 3000×1200×2250mm, featuring a maximum climbing capacity of 11°. It is equipped with 2×75L paint tanks and a 50L glass bead tank. Adopting an intelligent operating system based on a programmable micro‑computer module, all marking operations can be completed via the control box for accurate setting of various construction line types. Fitted with the CPAL airless high‑pressure spraying system and dual imported ultra‑wear‑resistant plunger pumps, it delivers a maximum pressure of 20MPa and working pressure ranging from 12‑16MPa. The adjustable spraying width ranges from 100‑450mm, coating thickness 0.2‑0.4mm, and spraying speed 1‑8km/h. The large‑capacity pressurized glass bead tank comes with a drying system to prevent gun clogging caused by moisture. The bead spraying pressure, flow rate and width are adjustable to adapt to paints of different viscosities and meet diverse road marking construction conditions.

Advantages and Features

Advantages and features

Intelligent Operating System

All marking controls and operations can be completed via the control box. Its core system adopts a programmable micro‑computer module for precise control. It enables operators to select or input required line standards according to construction requirements for accurate line pattern control.

High‑Pressure Airless Spraying System (CPAL)

Dual imported brand ultra‑wear‑resistant plunger pumps are equipped, with a single‑pump flow rate of 20L/min. It delivers large flow rate and stable pressure. The spraying pressure is adjustable within the range of 0‑20 MPa to satisfy user requirements for marking thickness and width when applying coatings of different viscosities.

Glass Bead Spreading System

Glass Bead Spreading System features a large‑capacity pressurized tank with high‑efficiency drying unit to avoid clogging from moisture. Adjustable spreading pressure, flow and width for flexible on‑site operation.

Basic product parameters

Get comprehensive product information

TT‑C01‑CP200 Two‑Component (Ambient Temperature) Ride‑on Road Marking Machine

The TT‑C01‑CP200 is a high‑pressure airless road marking machine equipped with an intelligent control system. It realizes integrated operations of paint spraying and glass bead spreading, suitable for various road marking construction scenarios.

Product Model

TT-C01-CP200

Max. Flow Rate

2X9L/min

Working Pressure

12‑16MPa

Spraying Thickness

0.2~0.4mm

Overall Dimensions

3000X1200X2250

Max. Climbing Capacity

11°

Glass Bead Tank Capacity

50L

Power

18HP / 20HP

Max. Pressure

20MPa

Spraying Speed

1‑8 km/h

Spraying Width

100~450mm（可调）

Total Weight

780Kg

Paint Tank Capacity

2X75L

Product Model

TT-C01-CP200

Power

18HP / 20HP

Max. Flow Rate

2X9L/min

Max. Pressure

20MPa

Working Pressure

12‑16MPa

Spraying Speed

1‑8 km/h

Spraying Thickness

0.2~0.4mm

Spraying Width

100~450mm（可调）

Overall Dimensions

3000X1200X2250

Total Weight

780Kg

Max. Climbing Capacity

11°

Paint Tank Capacity

2X75L

Glass Bead Tank Capacity

50L
